RSP-2400
581.26
Details
Meanwell RSP-2400 Series is a 2400W single output enclosed type AC/DC power supply. The entire series is designed low profile and built-in PFC function. They operates for 180~264VACinput voltage and offered with the DC output mostly demanded from the industry. Moreover, the efficiency reaches high up to 92% and active current sharing up to 7200W (2+1). Each model is cooled by the built-in fan with fan speed control. and they could work for the temperature up to 70℃. Additionally, RSP-2400 series provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. Apart from them, the series offers the complete protections such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability and excellent quality, Meanwell RSP-2400 Series serves as a high-performance power supply solution for various industrial applications such as Aging facility, digital broadcasting, RF application, LCD panel aging system and data storage, etc.
Meanwell RSP-2400 Series Encoding
| RSP | Series Name |
| 2400 | Output Wattage |
| 48 | Output Voltage (12V/24V/48V) |
Meanwell RSP-2400 Series Model Specifications
| Model | RSP-2400-12 | RSP-2400-24 | RSP-2400-48 | |
| Output | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 166.7A | 100A | 50A | |
| CURRENT RANGE | 0-166.7A | 0-100A | 0-50A | |
| RATED POWER | 2000.4W | 2400W | 2400W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 150 mVp-p | 200 mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.2V | 22-28V | 43-56V | |
| VOLTAGE TOLERANCE | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms at full load | |||
| HOLD UP TIME | 12ms at full load | |||
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.95/230VAC at full load | |||
| EFFICIENCY (Typ.) | 88.00% | 90.50% | 91.50% | |
| AC CURRENT (Typ.) | 15.5A/180VAC 12A/230VAC | |||
| INRUSH CURRENT (Typ. ) | 60A/230VAC | |||
| LEAKAGE CURR ENT | <2.0mA / 240VAC | |||
| PROTECTION | OVERLOAD | 100 ~ 112% rated output power | ||
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover | ||||
| OVER VOLTAGE | 13.8 ~ 16.8V | 28.8 ~ 33.6V | 57.6 ~ 67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | 2.4 ~ 13.2V | 4.8 ~ 28V | 9.6 ~ 56V |
| CURRENT SHARING | Up to 7200W or (2+1) units. | |||
| AUXILIARY POWER | 12V@0.1A(Only for Remote ON-OFF control) | |||
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.25V. Please refer to the Function Manual | |||
| ALARM SIGNAL OUTPUT | Power OK signal. Please refer to the Function Manual | |||
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1,IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | --- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | --- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 3, 2KV/Line-Earth ; Level 2, 1KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 692.3K hrs min. Telcordia SR-332 (Bellcore) ; 83.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 278*177.8*63.5mm (L*W*H) | |||
| PACKING | 3.3Kg; 4pcs/14.2Kg/2.04CUFT | |||
Meanwell RSP-2400 Series Features
l AC input 180~264VAC .
l Built-in active PFC function
l High efficiency up to 91.5%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Active current sharing up to 7200W (2+1)
l Built-in remote ON-OFF control/remote sense/auxiliary power/power OK signal
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell RSP-2400 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l Digital broadcasting
l RF application

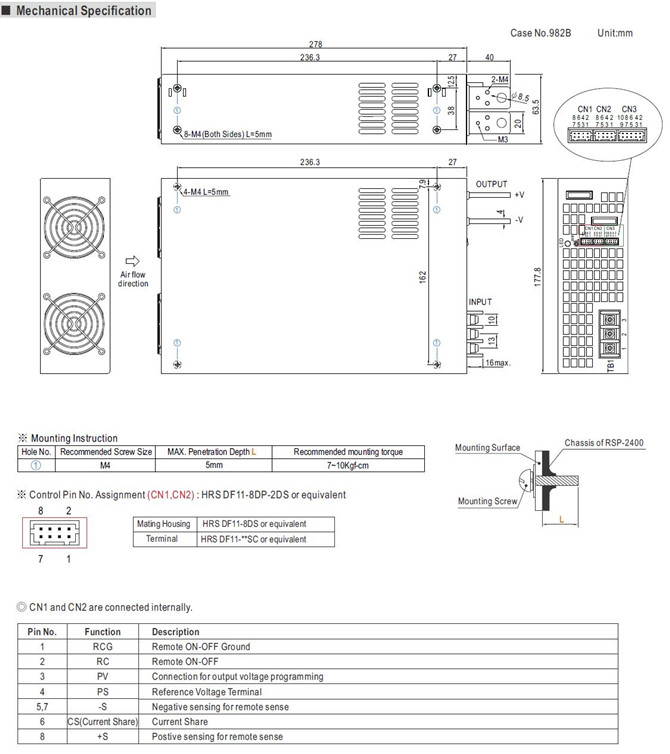

Meanwell RSP-2400 Series Mechanical Diagram
