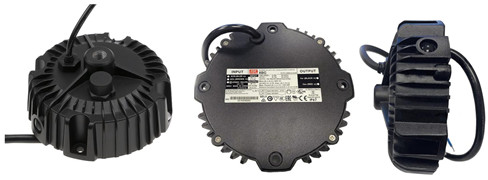

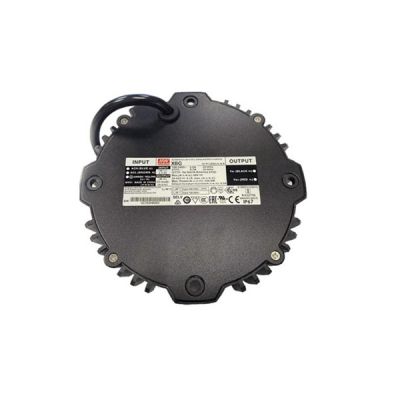

Meanwell 240W Constant Power Mode LED Driver

- +
Availability:In stock
SKU Meanwell XBG-240
Brand Meanwell
Details

Meanwell XBG-240 Series is 240W AC/DC LED driver highlighting constant power mode. The entire series operates from 100~305VAC with different rated current ranging between 4000mA and 5700mA. Since the high efficiency reaches up to 93%, based on no fan design, XBG-240 is able to work for -40℃~ +90℃ case temperature under free air convection. At the same time, the metal housing design and IP67 ingress protection level allow to meet both indoor and outdoor applications. The innovative environment-adaptive capability permits to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Apart from them, XBG-240 complies with the latest version ofIEC61347/1EC60598-1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation. Considering its long lifetime, high efficiency and excellent reliability, Meanwell XBG-240 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell XBG-240 price and datasheet Constant Power LED Driver AC input with fixed cable AC input with connector YCICT

Meanwell XBG-240 Series Encoding

XBG Series Name
240 Rated  Wattage
Functions options
AC cable option: C AC input with connector
AC cable option: Blank  AC input with fixed cable
A IP67 constant power adjustable via built-in potentiometer
AB IP67 constant power adjustable via built-in potentiometer +3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistor)

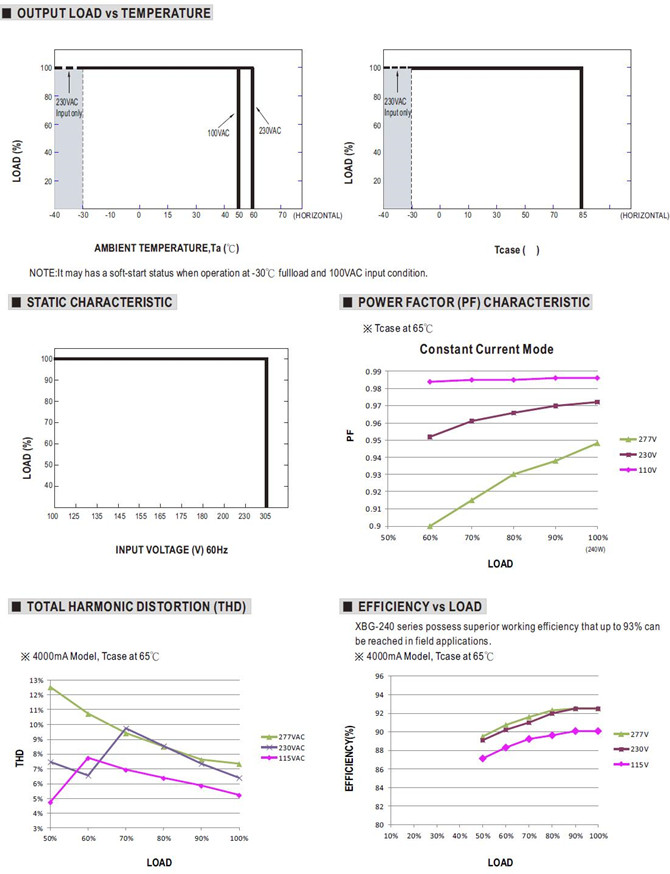

Meanwell XBG-240 Series Model Specifications

Model XBG-240-  -
OUTPUT DEFAULT CURRENT 4800mA
RATED POWER 240W
CONSTANT CURRBS EN/ENT REGION 30-60V
FULL POWER CURRENT RANGE 4000-5700mA
OPEN CIRCUIT VOLTAGE (max.) 65V
CURRENT ADJ. RANGE 2000-5700mA
CURRENT RIPPLE 4.0% max. @rated current
CURRENT TOLERANCE  ±5%
SET UP TIME 500ms/230VAC, 1200ms/115VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ) PF>=0.97 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION THD< 10% (@ load>=50% at 115VAC/230VAC ,@load>=75% at 277VAC)
Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.) 93.00%
AC CURRENT 3.2A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT(Typ.) COLD START 65A(twidth=600 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 unit(circuit breaker of type B) / 5 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
STANDBY POWER CONSUMPTION Standby power consumption<0.5W for AB-Type
PROTECTION SHORT CIRCUIT Hiccup mode or constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 66 ~ 78V
Shut down output voltage, re-power on to recover
OVER TEMPERATURE Shut down output voltage, re-power on to recovery
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +85(Please refer to "OUTPUT LOAD vs TEMPERATURE" section
MAX. CASE TEMP Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;
IS15885(Part2/Sec13); GB19510.1,GB19510.14; IP67;EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-PE:2KVAC O/P-PE:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-PE, O/P-PE:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55015(CISPR15),GB/T17743 ----
Radiated BS EN/EN55015(CISPR15),GB/T17743 -----
Harmonic Current BS EN/EN61000-3-2,GB17625.1 Class C @load>=50%
Voltage Flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN61547
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
Others MTBF 3491.7K hrs min. Telcordia SR-332(Bellcore) ; 154.6K hrs min. MIL-HDBK-217F (25)
LIFETIME 50000 hrs min.
DIMENSION φ176mm *65mm(D*H)
PACKING 1.92Kg;8pcs/17.5Kg/1.47CUFT

Meanwell XBG-240 Series Features

l  Full power output at 70~100% constant power mode operation

l  Wide input range 100 ~ 305VAC with active PFC function

l  Metal housing design with IP67

l  Multiple dimming functions:3 in 1. (0-10V/PWM/Resistor)

l  Surge protection with 6kV /4kV

l  Dimming circuit with isolated for latest safety regulation

l  Typical lifetime>50000 hours and 5 years warranty

l  AC input cable with connector for flexible installation

Meanwell XBG-240 price and specs 240W Constant Power LED Driver AC input with fixed cable AC input with connector YCICT

Meanwell XBG-240 Series Applications

l  LED bay lighting

l  LED stage lighting

l  LED spot lighting

l  Explosion-proof lighting

l  Type HL LED driver for class I division 2

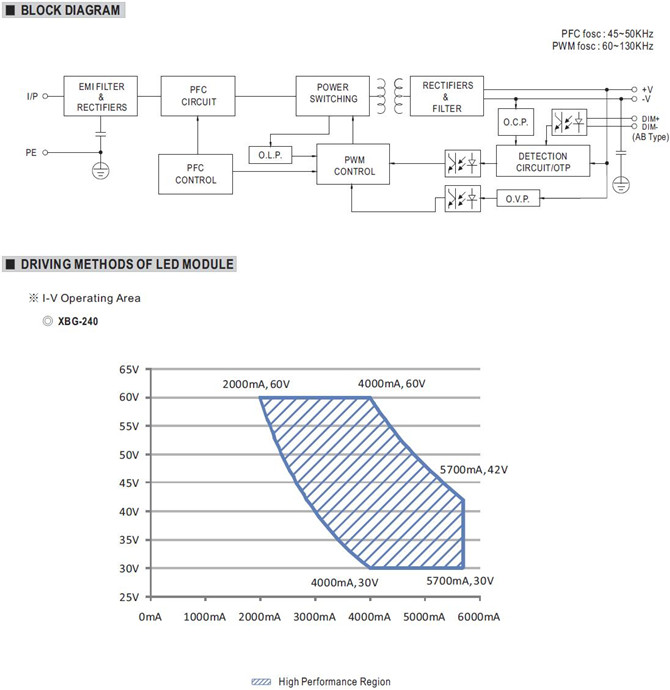

Meanwell XBG-240 Series Mechanical Diagram
