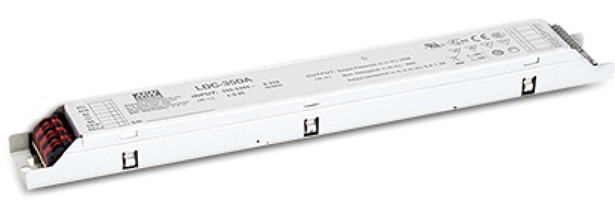

Meanwell 35W Constant Power mode Linear LED Driver

- +
Availability:In stock
SKU Meanwell LDC-35
Brand Meanwell
Details

Meanwell LDC-35 Series is 35W AC/DC mode Linear LED driver featuring constant power output. The entire series could operate from 180~295 V AC, and at the same time, the output current can be adjusted between 300mA to 1000mA. The efficiency reaches high up to 88% under the fanless design, In addition, LDC-35 is able to work for -25℃~+80℃ case temperature under free air convection. It is also equipped with various function options such as dimming methodologies. Considering its high efficiency, long lifetime, and low price, Meanwell LDC-35 Series provides optimal design flexibility for LED lighting system.

Meanwell LDC-35 price and specs Constant Power Linear mode AC/DC LED Driver Flicker Free Metal housing design YCICT

Meanwell LDC-35 Series Encoding

LDC Series Name
35 Rated output Wattage
Function Options
Type Function
Blank Non dimming
B    3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance
DA DALI push dimming

Meanwell LDC-35 Series Model Specifications

Model LDC-35

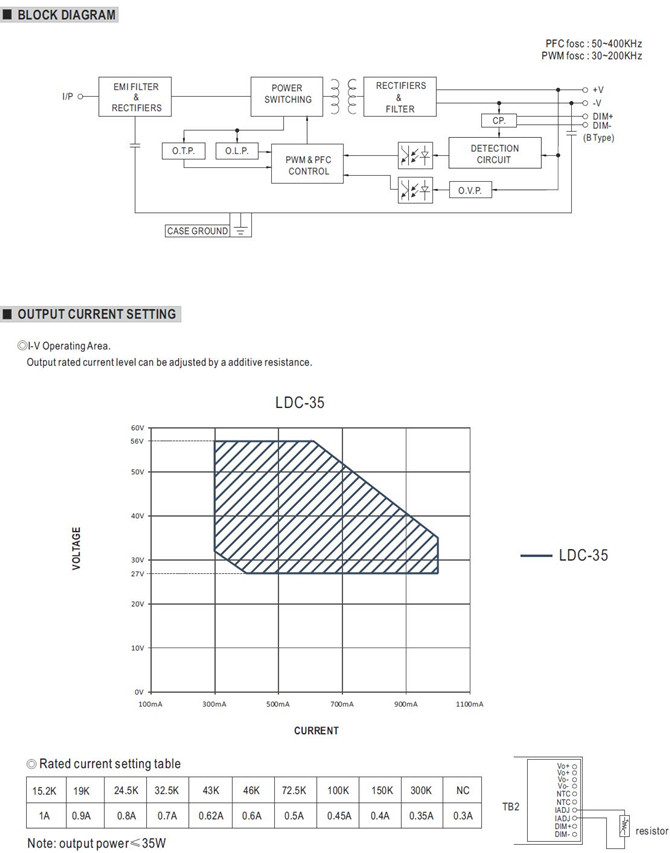

OUTPUT OUTPUT CURRENT REGION 300 ~ 1000mA (700mA default)
RATED POWER 35W
CONSTANT CURRENT REGION 27-56V
FULL POWER CURRENT RANGE 625-1000mA
OPEN CIRCUIT VOLTAGE (max.) 60V
LOW FREQUENCY CURRENT RIPPLE 3.0% max, @ rated current
CURRENT TOLERANCE '±5.0%
SET UP TIME 500ms/230VAC
Input VOLTAGE RANGE 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.95/230VAC at load>=50%; PF>=0.92/277VACat load>=75%
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 10%(at load>=50%/230VAC; at load>=75%/277VAC)
(Please refer to“TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 88% (230VAC at Full load)
AC CURRENT (Typ.) 0.2A / 230VAC 0.16A / 277VAC
INRUSH CURRENT(Typ.) COLD START 30A(twidth=250μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION SHORT CIRCUIT Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
OVER VOLTAGE 61 ~ 80V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, with auto-recovery
FUNCTION DIMMING Please refer to“DIMMING OPERATION”section
TEMP. COMPENSATION By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section
ENVIRONMENT WORKING TEMP. Tcase=-25 ~ +80(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1,
AS/NZS IEC 61347.2.13; BS EN/EN62384; GB19510.14,GB19510.1, EAC TP TC 004, BIS IS15885 approved
DALI STANDARDS Compliance to IEC62386-101.102.207 for DA-Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020
Others MTBF 2313.3K hrs min. Telcordia SR-332 (Bellcore) 286.8Khrs min. MIL-HDBK-217F (25)
DIMENSION 280*30*21mm (L*W*H)
PACKING 0.22Kg; 54pcs/12.88Kg/0.91CUFT

Meanwell LDC-35 Series Features

l  Constant Power mode output

l  Metal housing design

l  Full Power at 70~100% max Current

l  Built-in active PFC function

l  Flicker Free design

l  No load/Standby power consumption <0.5W

l  Output current level pre-settable

l  Function options: 3 in 1 dimming (dim-to-off); DALI interface, push dimming

l  Typical lifetime> 50000 hours

l  SELV and Isolated

l  Class 2 power supply

l  5 years warranty

Meanwell LDC-35 price and specs 35W Constant Power mode Linear LED Driver Flicker Free  and Metal housing design YCICT

Meanwell LDC-35 Series Applications

l  LED panel lighting

l  Indoor LED lighting

l  Linear LED lighting

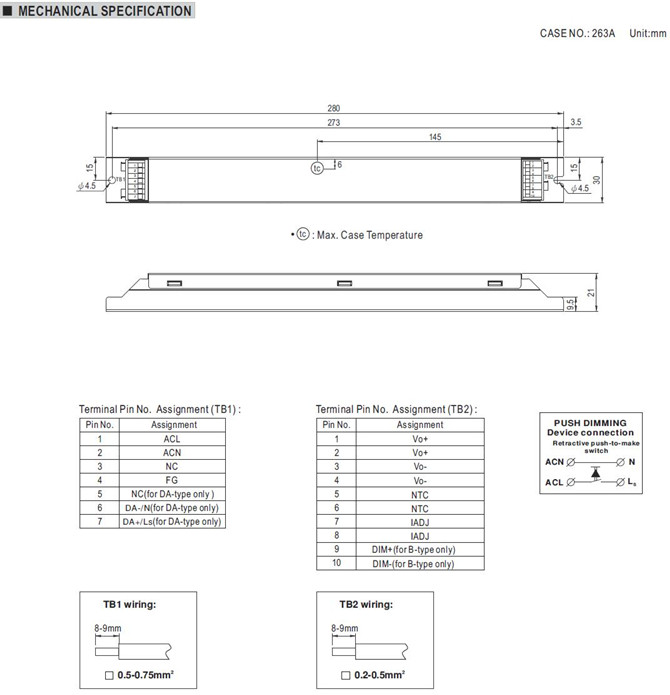

Meanwell LDC-35 Series Mechanical Diagram

Meanwell LDC-35 price and specs 35W Constant Power Linear AC/DC LED Driver Flicker Free  and Metal housing design YCICT

Meanwell LDC-35 price and specs 35W Constant Power Linear mode AC/DC LED Driver Flicker Free Metal housing design YCICT
