GST90A19-P1M
11.02
Details

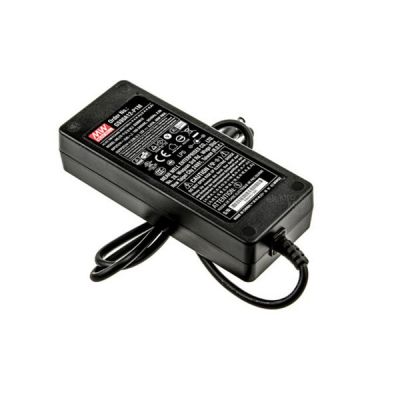

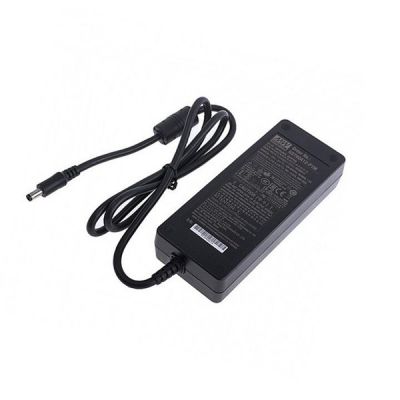

Meanwell GST90A19 is a 90W single-output green adaptor with 19V4.74A0-4.74A90W180mVp-p. It is a class I desktop style power unit (with FG) with standard IEC320-C14 AC inlet. The model adopts the input range from 90VAC to 264VAC. At the same time, Meanwell GST90A19 supplies the model with output voltages 19VDC, which can meet the demands for various types of consumer electronic devices. With the efficiency reaching high up to 91% and extremely low no-load power consumption below 0.15W, GST90A19 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. What’s more, the supreme feature permits the adaptor to save the energy when it is either under operating mode or standby mode. Apart from them. the unit utilizes the 94V-0 flame retardant plastic case, certified for the international safety regulations. In light of its good quality, high reliability and long lifespan, Meanwell GST90A19 serves as a high performance power supply solution for various applications.
Meanwell GST90A19-P1M Encoding
| GST | Series Name |
| 90 | Rated Wattage |
| A | IEC320-C14 AC Inlet |
| 19 | Output Voltage |
| P1M | DC Plug Type Р1M: Рlug fоr ѕtаndаrd mоdеl, 2.5 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST90A19-P1M Specifications
| ORDER NO. | GST90A19-P1M | |
| OUTPUT | SAFETY MODEL NO. | GST90A19 |
| DC VOLTAGE | 19V | |
| RATED CURRENT | 4.74A | |
| CURRENT RANGE | 0-4.74A | |
| RATED POWER (max) | 90W | |
| RIPPLE & NOISE (max.) | 180mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| HOLD UP TIME (Typ.) | 20ms / 230VAC 20ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.91 / 230VAC PF>0.95 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1.3A / 115VAC 0.6A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35 / 115AC 70A / 230VAC | |
| LEAKAGE CURRENT(max.) | 1mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035 | |
| Others | MTBF | 2529.4K hrs min. Telcordia SR-332 (Bellcore) ; 389.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 145*60*32mm (L*W*H) | |
| PACKING | 0.45Kg; 30pcs/14.05Kg/0.9CUFT | |
Meanwell GST90A19-P1M Features
l 3 years warranty
l Global certificates
l LED indicator for power on
l Universal AC input/Full range
l 3 pole AC inlet lEC320-C14, ClassⅠpower unit
l Built-in active PFC function
l No load power consumption< O.15W
l Energy efficiency Level VI
l Fully enclosed plastic case
l -30~+70℃ wide range working temperature
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
Meanwell GST90A19-P1M Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GST90A19-P1M Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
