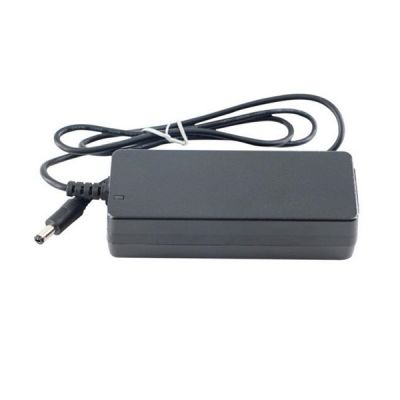

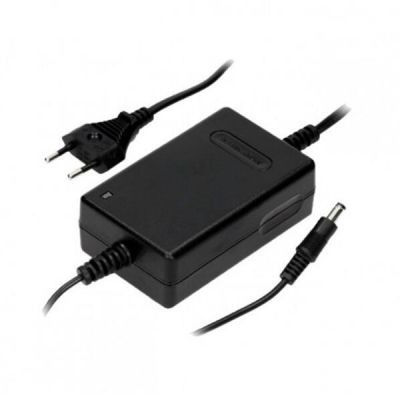

GC-30U
16.06
Details
Meanwell GC-30U Series Model Specifications
| Model | GC30U-0P1J | GC30U-1P1J | GC30U-11P1J | GC30U-2P1J | GC30U-4P1J | GC30U-5P1J | GC30U-6P1J | |
| OUTPUT | SAFETY MODEL NO | GC30U-0 | GC30U-1 | GC30U-11 | GC30U-2 | GC30U-4 | GC30U-5 | GC30U-6 |
| DC VOLTAGE SET AT | 4.2V | 5.6V | 7.2V | 8.4V | 14.3V | 16.8V | 28.6V | |
| RATED CURRENT | 4A | 3.99A | 3A | 3A | 2.09A | 1.6A | 1.04A | |
| CURRENT RANGE | 0-4A | 0-3.99A | 0-3A | 0-3A | 0-2.09A | 0-1.6A | 0-1.04A | |
| RATED POWER | 16.8W | 22.38W | 21.6W | 25.2W | 30W | 27W | 30W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | |
| CHARGING VOLTAGE RANGE | 3.6-4.4V | 5-5.8V | 6.5-7.5V | 7.7-8.6V | 13.5-14.5V | 16-17V | 27.1-28.8V | |
| LINE REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LED INDICATOR | Green LED ON < 100mA, Red LED ON > 250mA | |||||||
| SETUP, RISE, HOLD UP TIME | 200ms, 50ms, 16ms at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 55.00% | 70.00% | 74.00% | 76.00% | 78.00% | 78.00% | 80.00% | |
| AC CURRENT (Typ.) | 0.7A / 100VAC; 0.35A/ 230VAC | |||||||
| INRUSH CURRENT (max.) | 40A / 230VAC | |||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |||||||
| PROTECTION | OVERLOAD | 90 ~ 110% Constant current mode and over 300% pulsing mode | ||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 110 ~ 135% rated output voltage | |||||||
| Protection type : Clamp by zener diode | ||||||||
| OVER TEMPERATURE | IC1_Tj > 130℃ | |||||||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| ENVIRONMENT | WORKING TEMP | 0 ~ +50℃ (Refer to output load derating curve) | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, CSA22.2, EAC TP TC 004 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to FCC part 15 Class B, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to EAC TP TC 020 | |||||||
| Others | DIMENSION | 108*67*36mm (L*W*H) | ||||||
| PACKING | 405g; 36pcs / 16.5kg / CARTON | |||||||
| CONNECTOR | PLUG | Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested | ||||||
| CABLE | Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested | |||||||
Meanwell GC-30U Series Features
l Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
l Universal AC input/ Full range

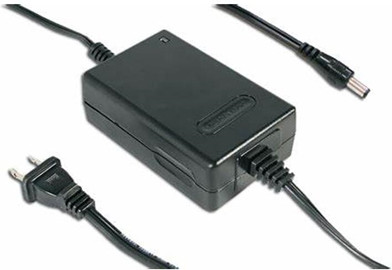

l With USA type 6FT power cord (2pin)
l Class II power (without earth pin)
l No load power consumption <1.0W
l Constant current and voltage (CC, CV mode)
l Suitable for continue load
l For high surge current equipment
l Protections: Short circuit/Overload/Over voltage/Over temp
l 2 colors LED indicate for charging status
l Fully enclosed plastic case
l High reliability
l Approvals: UL/CUL/ EAC /CB/ FCC
l 2 years warranty

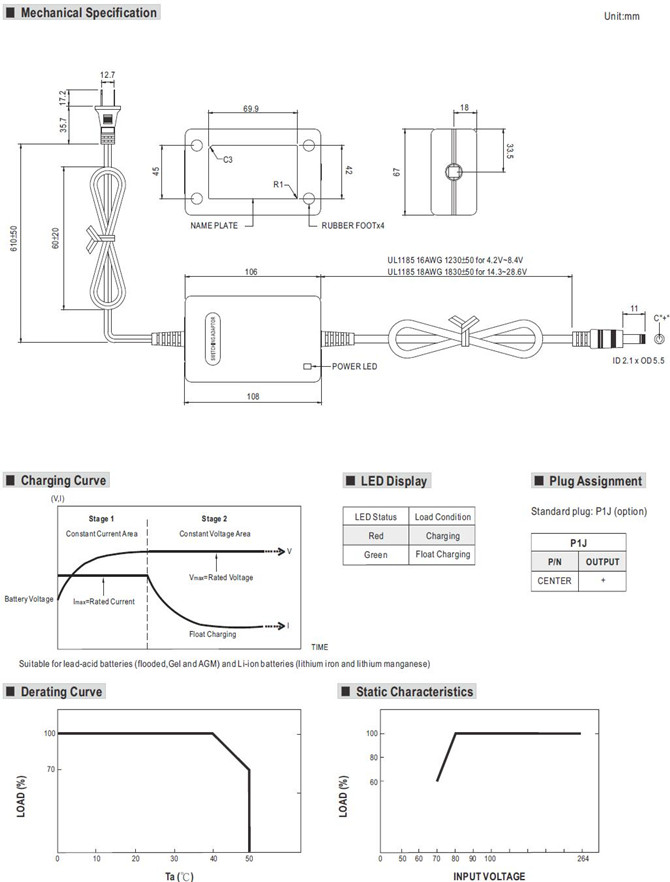

Meanwell GC-30U Series Mechanical Diagram
