GST18E12-P1J
9.78

GST18E12-P1J

$9.78

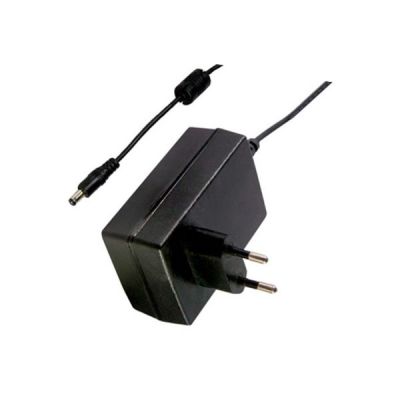

Meanwell 18W AC-DC Reliable Green Industrial Adaptor with 12V1.50A0-1.50A18W80mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GST18E12-P1J
Brand Meanwell
Details

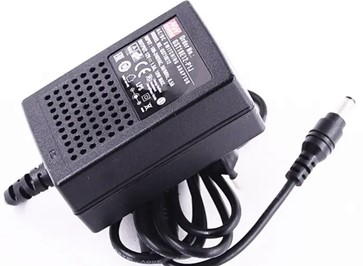

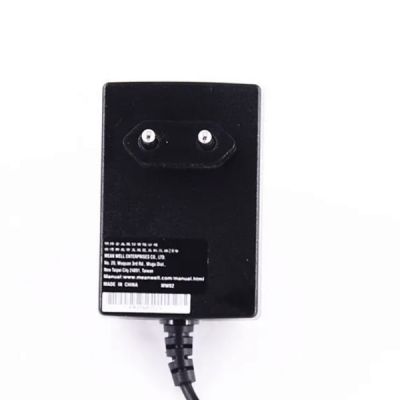

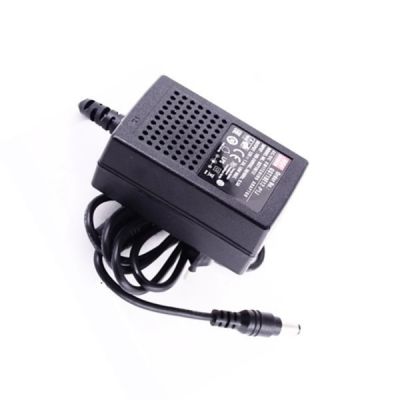

Meanwell GST18E12 is a 18W AC-DC Green Industrial Adaptor with 12V1.50A0-1.50A18W80mVp-p. The model features single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), equipped with a 2-Pin standard European AC power plug. At the same time, GST18E12 adopts the input range from 85VAC to 264VAC, supplied with output voltage 12VDC. Therefore, it can meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST18E12 is compliant with EU ErP, and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. the item also utilizes the 94V-0 flame retardant plastic case, providing The double insulation that effectively prevents electrical shock. GST18E12 is certified for the international safety regulations. In view of its high safety, high quality and high performance, Meanwell GST18E12 serves as a high performance power supply solution for various types of consumer electronic devices.Meanwell GST18E12 Price and Specs 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS 12V YCICT

Meanwell GST18E12-P1J Encoding

GST Series Name
18 Rated Wattage
E European 2 pin AC Plug
12 Output Voltage
P1J  Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST18E12-P1J Specifications

ORDER NO. GST18E12-P1J
OUTPUT SAFETY MODEL NO. GST18E12
DC VOLTAGE 12V
RATED CURRENT 1.50A
CURRENT RANGE 0-1.50A
RATED POWER 18W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 202.5g; 60pcs/13.2Kg/1.15CUFT

Meanwell GST18E12-P1J Features

l  Pass LPS

l  3 years warranty

l  Global certificates

l  Energy efficiency Level VI

l  Fully enclosed plastic case

l  Universal AC input/Full range

l  2 pole EURO plug, Class II power unit

l  No load power consumption< 0.075W

l  Comply with EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  -30~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

Meanwell GST18E12 Price and Specs 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS 1.5A YCICT

Meanwell GST18E12-P1J Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

Meanwell GST18E12 Price and Specs 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS Pass YCICT

Meanwell GST18E12-P1J Mechanical Diagram

Meanwell GST18E12 Price and Datasheet 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS YCICT
