GSM90B
14.95
Details

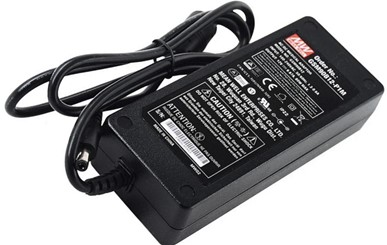

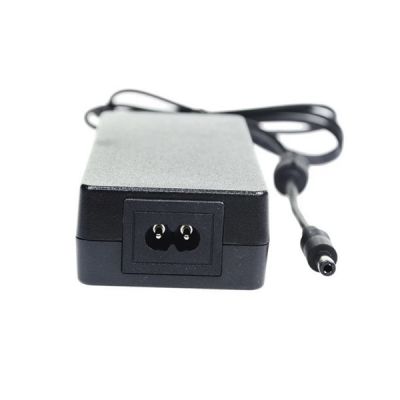

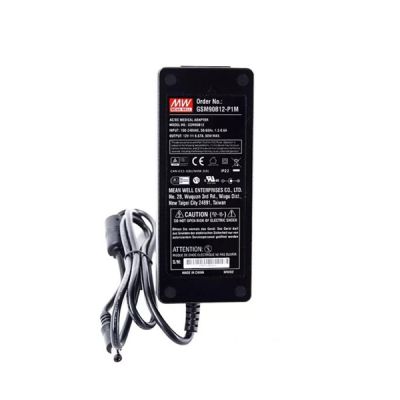

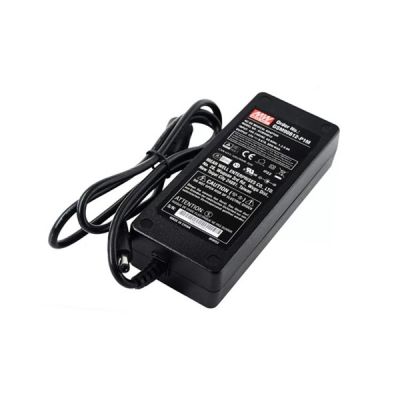

Meanwell GSM90B Series is a 90W AC-DC Green Medical Adaptor. The product features desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, and adopts the input range from 80VAC to 264VAC. At the same time, the entire series supplies different output voltages between 12VDC and 48VDC, so that it can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients. In addition, the efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM90B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. What’s more, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, providing double insulation, which effectively prevents electrical shock. GSM90B is approved with the international medical safety certificates as well. Considering its longevity, high efficiency, and excellent performance, Meanwell GSM90B Series serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM90B Series Encoding
| GSM | Series Name |
| 90 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 12 | Output Voltage |
| P1M- DC plug type | Р1M: Stаndаrd mоdеl, 2.5ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM90B Series Model Specifications
| ORDER NO. | GSM90B12-P1M | GSM90B15-P1M | GSM90B19-P1M | GSM90B24-P1M | GSM90B48-P1M | |
| OUTPUT | SAFETY MODEL NO. | GSM90B12 | GSM90B15 | GSM90B19 | GSM90B24 | GSM90B48 |
| DC VOLTAGE | 12V | 15V | 19V | 24V | 48V | |
| RATED CURRENT | 6.67A | 6A | 4.74A | 3.75A | 1.87A | |
| CURRENT RANGE | 0-6.67A | 0-6A | 0-4.74A | 0-3.75A | 0-1.87A | |
| RATED POWER | 80W | 90W | 90W | 90W | 90W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 120mVp-p | 180mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±2.5% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±2.5% | |
| HOLD UP TIME (Typ.) | 1000ms, 50ms / 230VAC 1500ms, 50ms / 115VAC at full load | |||||
| SETUP, RISE, HOLD UP TIME | 30ms / 230VAC 20ms / 115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | PF>0.91 / 230VAC PF>0.95 / 115VAC at full load | |||||
| EFFICIENCY (Typ.) | 88.00% | 89.00% | 89.00% | 90.00% | 91.00% | |
| AC CURRENT | 1.3A / 115VAC 0.6A / 230VAC | |||||
| INRUSH CURRENT (max.) | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved | |||||
| LEAKAGE CURRENT(max.) | Touch current < 100 A/264VAC | |||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |||||
| OPERATING ALTITUDE | 3000 meters | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved | ||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55011 (CISPR11), FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Radiated emission | BS EN/EN55011 (CISPR11), FCC PART 15 /CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz) |
||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | ||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | ||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||
| Others | MTBF | 2743.3K hrs min. Telcordia SR-332 (Bellcore) ; 353.3K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 145*60*32mm (L*W*H) | |||||
| PACKING | 0.45Kg; 30pcs/14.5Kg/0.9CUFT | |||||
Meanwell GSM90B Series Features
l 2 pole AC inlet lEC320-C8, Class II power unit
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature· LED indicator for power on
l Lifetime>90K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM90B Series Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine

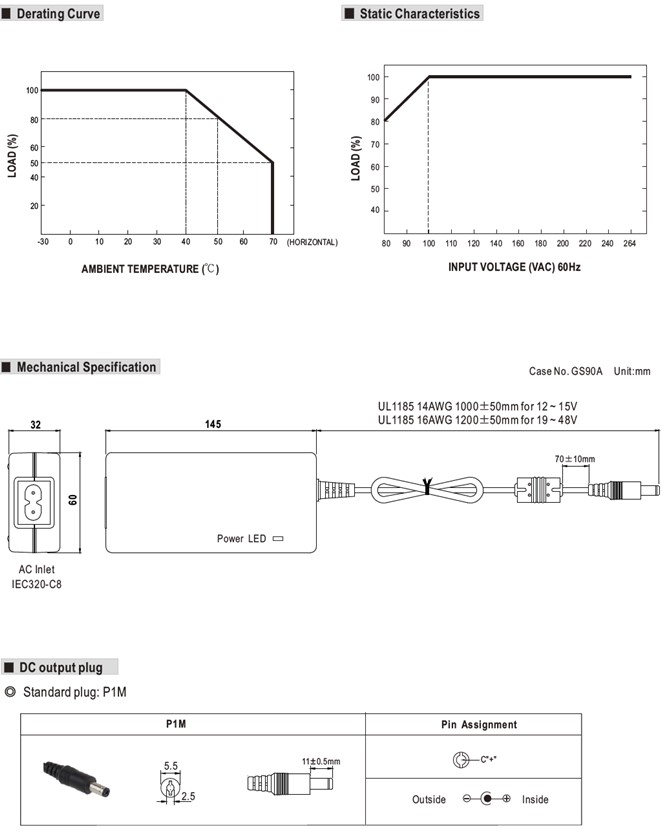

Meanwell GSM90B Series Mechanical Diagram
