GSM90B48-P1M
15.19

GSM90B48-P1M

$15.19

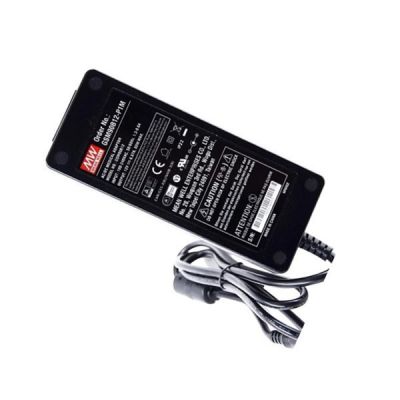

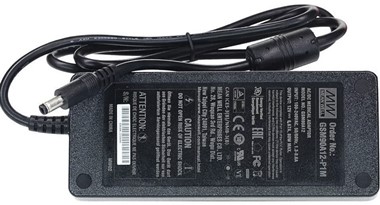

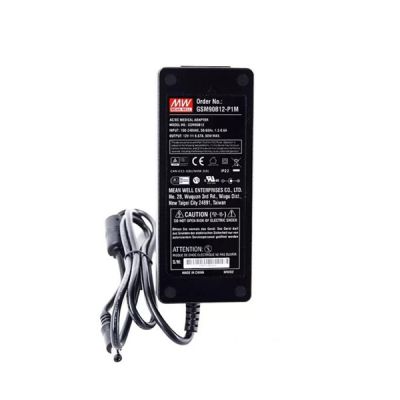

Meanwell 90W AC-DC Reliable Green Medical Adaptor with 48V1.87A0-1.87A90W200mVp-p±2.5%±1.0%±2.5%

- +
Availability:In stock
SKU Meanwell GSM90B48-P1M
Brand Meanwell
Details

Meanwell GSM90B48 is a 90W AC-DC Green Medical Adaptor with 48V1.87A0-1.87A90W200mVp-p. The model highlights desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. At the same time, GSM90B48 adopts the input range from 80VAC to 264VAC with output voltage 48VDC, so that it could satisfy the demands for various kinds of medical electrical devices. Furthermore, the circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100uA), and thus fits the medical devices in direct electrical contact with the patients. The efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. Additionally, GSM90B48 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. It also utilizes the 94V-0 flame retardant plastic case, offering the double insulation, which effectively prevents electrical shock. The unit is approved with the international medical safety certificates as well. As a result of its longevity, high efficiency, and excellent performance, Meanwell GSM90B48 serves as an ideal power supply solution for various types of medical electronic device.

Meanwell GSM90B48 price and specs 90W AC-DC Green Medical Adaptor GSM90B GSM90B12 GSM90B15 GSM90B19 GSM90B24 YCICT

Meanwell GSM90B48-P1M Encoding

GSM Series Name
90 Rated Wattage
B IEC320-C8 AC Inlet
48 Output Voltage

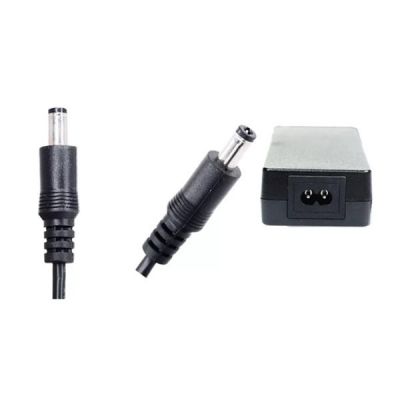

P1M- DC plug type Р1M: Stаndаrd mоdеl, 2.5ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре
Other Options available by customer requested

Meanwell GSM90B48-P1M Specifications

ORDER NO. GSM90B48-P1M
OUTPUT SAFETY MODEL NO. GSM90B48
DC VOLTAGE 48V
RATED CURRENT 1.87A
CURRENT RANGE 0-1.87A
RATED POWER 90W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOLERANCE ±2.5%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.5%
HOLD UP TIME (Typ.) 1000ms, 50ms / 230VAC 1500ms, 50ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 30ms / 230VAC 20ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
EFFICIENCY (Typ.) 91.00%
AC CURRENT 1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (max.) IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
LEAKAGE CURRENT(max.) Touch current < 100 A/264VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
OPERATING ALTITUDE 3000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P: 4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 2743.3K hrs min. Telcordia SR-332 (Bellcore) ; 353.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 145*60*32mm (L*W*H)
PACKING 0.45Kg; 30pcs/14.5Kg/0.9CUFT

Meanwell GSM90B48-P1M Features

l  3 years warranty

l  Lifetime>90K hours

l  LED indicator for power on

l  Extremely low leakage current

l  No load power consumption<0.15W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃ wide range working temperature

l  2 pole AC inlet lEC320-C8, Class II power unit

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Various DC plug quick adapter accessory available

l  Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1

Meanwell GSM90B48 price and specs 90W AC-DC Green Medical Adaptor GSM90B GSM90B12 GSM90B15 GSM90B19 GSM90B24 1.87a YCICT

Meanwell GSM90B48-P1M Applications

l  Oral irrigator

l  Breath Machine

l  Medical computer monitor

l  Mobile clinical workstation

l  Portable hemodialysis machine

Meanwell GSM90B48 price and specs 90W AC-DC Medical Adaptor GSM90B GSM90B12 GSM90B15 GSM90B19 GSM90B24 1.87a 48v YCICT

Meanwell GSM90B48-P1M Mechanical Diagram

Meanwell GSM90B48 price and datasheet 90W AC-DC Medical Adaptor GSM90B GSM90B12 GSM90B15 GSM90B19 GSM90B24 48v YCICT
