GSM90A19-P1M
15.71

GSM90A19-P1M

$15.71

Meanwell 90W AC-DC Reliable Green Medical Adaptor with 19V4.74A0-4.74A90W120mVp-p±4.0%±1.0%±4.0%

- +
Availability:In stock
SKU Meanwell GSM90A19-P1M
Brand Meanwell
Details

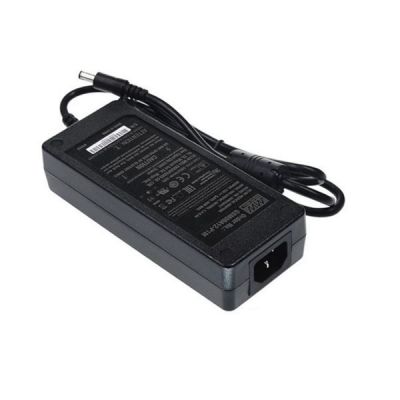

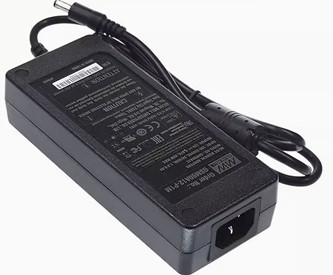

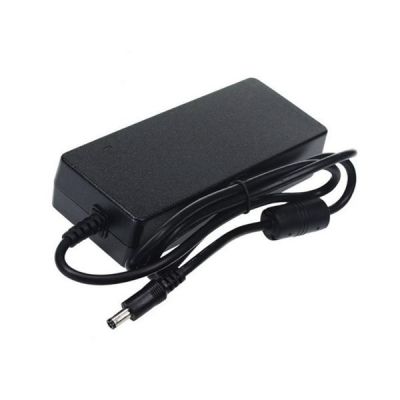

Meanwell GSM90A19 is a 90W AC-DC Green Medical Adaptor with 19V4.74A0-4.74A90W120mVp-p. The unit stands out with single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. GSM90A19 adopts the input range from 80VAC to 264VAC with output voltage 19VDC. So that it is able to satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), providing an ultra-low leakage current (<100μA), and fits the medical devices in direct electrical contact with the patients. What’s more, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM90A19 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Apart from them, the model utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. In light of its longevity, high efficiency, and excellent performance, Meanwell GSM90A19 serves as an ideal power supply solution for various types of medical electronic devices.Meanwell GSM90A19 Price and Specs 90W AC-DC Medical Adaptor GSM90A GSM90A12 GSM90A15 GSM90A24 GSM90A48 3 pole YCICT

Meanwell GSM90A19-P1M Encoding

GSM Series Name
90 Rated Wattage
A IEC320-C14 AC inlet
19 Output voltage

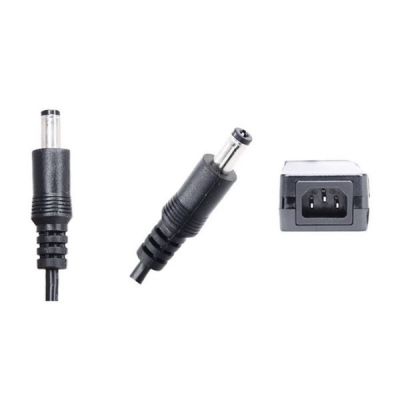

Р1M- DC plug type Р1M: Рlug fоr ѕtаndаrd mоdеl, 2.5 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM90A19-P1M Specifications

ORDER NO. GSM90A19-P1M
OUTPUT SAFETY MODEL NO. GSM90A19
DC VOLTAGE 19v
RATED CURRENT 4.74A
CURRENT RANGE 0-4.74A
RATED POWER (max) 90W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±4.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±4.0%
SETUP, RISE TIME 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.) 40ms / 230VAC 25ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89.00%
AC CURRENT (Typ.) 1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (Typ.) Cold start 30A/115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Earth leakage current < 125 A/264VAC , Touch current < 100 A/264VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 2538.4K hrs min. Telcordia SR-332 (Bellcore) ; 387.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 145*60*32mm (L*W*H)
PACKING 0.45Kg; 30pcs/14.5Kg/0.9CUFT

Meanwell GSM90A19-P1M Features

l  3 years warranty

l  Lifetime>130K hours

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Extremely low leakage current

l  No load power consumption<0.1 5W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

Meanwell GSM90A19 Price and Specs 90W AC-DC Medical Adaptor GSM90A GSM90A12 GSM90A15 GSM90A24 GSM90A48 4.74a YCICT

Meanwell GSM90A19-P1M Applications

l  Mobile clinical workstation

l  Oral irrigator

l  Portable hemodialysis machine

l  Breath Machine

l  Medical computer monitor

Meanwell GSM90A19 Price and Specs 90W AC-DC Medical Adaptor GSM90A GSM90A12 GSM90A15 GSM90A24 GSM90A48 19v YCICT

Meanwell GSM90A19-P1M Applications

Meanwell GSM90A19 Price and Specs 90W AC-DC Medical Adaptor GSM90A GSM90A12 GSM90A15 GSM90A24 GSM90A48 4.74a YCICT
