GSM90A48-P1M
15.95
Details

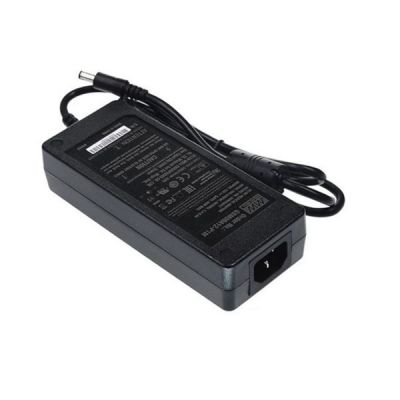

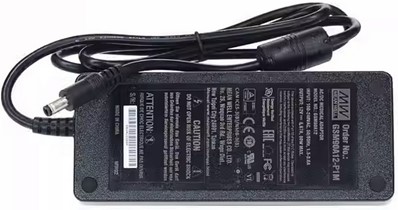

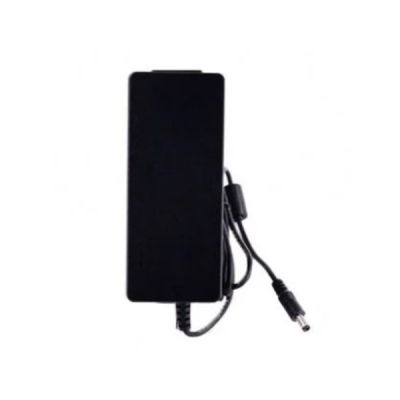

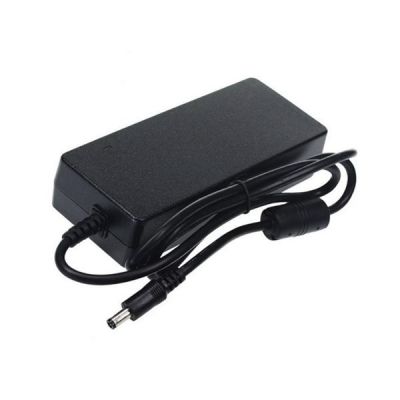

Meanwell GSM90A48 is a 90W AC-DC Green Medical Adaptor with 48V1.87A0-1.87A90W200mVp-p. It stands out with single-output, desktop style and high reliability. The unit is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. GSM90A48 adopts the input range from 80VAC to 264VAC with output voltage 48VDC. So that it is able to satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), offering an ultra-low leakage current (<100μA), and fits the medical devices in direct electrical contact with the patients. Meanwhile, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM90A48 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. As a result of its longevity, high efficiency, and excellent performance, Meanwell GSM90A48 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM90A48-P1M Encoding
| GSM | Series Name |
| 90 | Rated Wattage |
| A | IEC320-C14 AC inlet |
| 48 | Output voltage |
| Р1M- DC plug type | Р1M: Рlug fоr ѕtаndаrd mоdеl, 2.5 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM90A48-P1M Specifications
| ORDER NO. | GSM90A48-P1M | |
| OUTPUT | SAFETY MODEL NO. | GSM90A48 |
| DC VOLTAGE | 48V | |
| RATED CURRENT | 1.87A | |
| CURRENT RANGE | 0-1.87A | |
| RATED POWER (max) | 90W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.5% | |
| SETUP, RISE TIME | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms / 230VAC 25ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT (Typ.) | 1.3A / 115VAC 0.6A / 230VAC | |
| INRUSH CURRENT (Typ.) | Cold start 30A/115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Earth leakage current < 125 A/264VAC , Touch current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 2538.4K hrs min. Telcordia SR-332 (Bellcore) ; 387.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 145*60*32mm (L*W*H) | |
| PACKING | 0.45Kg; 30pcs/14.5Kg/0.9CUFT | |
Meanwell GSM90A48-P1M Features
l 3 years warranty
l Lifetime>130K hours
l LED indicator for power on
l Extremely low leakage current
l No load power consumption<0.1 5W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l Various DC plug quick adapter accessory available
l 3 pole AC inlet lEC320-C14, Class I power unit
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell GSM90A48-P1M Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor
Meanwell GSM90A48-P1M Applications
More Information
| Brand | Meanwell |
|---|
