GSM60B18-P1J
13.84

GSM60B18-P1J

$13.84

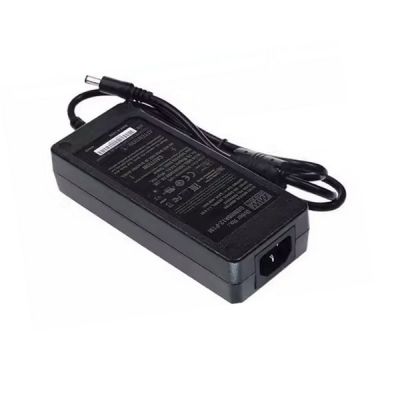

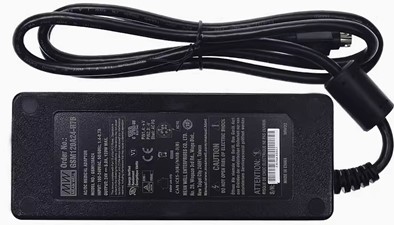

Meanwell 60W AC-DC Reliable Green Medical Adaptor with 18V3.33A0-3.33A60W120mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GSM60B18-P1J
Brand Meanwell
Details

Meanwell GSM60B18 is a 60W AC-DC Green Medical Adaptor with 18V3.33A0-3.33A60W120mVp-p. The product features desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. Meanwhile, GSM60B18 adopts the input range from 80VAC to 264VAC, equipped with output voltage 18VDC, so that it is able to satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOP P), having an ultra-low leakage current (<50uA), and thus fits the medical devices indirect electrical contact with the patients. What’s more, the work efficiency reaches high up to 91.5% and extremely low no-load power consumption below 0.1W. GSM60B18 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. It utilizes the 94V-0 flame retardant plastic case, offering the double insulation which effectively prevents electrical shock. The unit is also approved with the international medical safety certificates. Thanks to its longevity, high efficiency, and excellent performance, Meanwell GSM60B18 serves as an ideal power supply solution for various types of medical electronic device.

Meanwell GSM60B18 Price and Specs 60W AC-DC Medical Adaptor GSM60B05-P1J 07 09 12 15 18 24 48 AC Inlet 18v YCICT

Meanwell GSM60B18-P1J Encoding

GSM Series Name
60 Rated Wattage
B IEC320-C8 AC Inlet
18 Output Voltage
P1J- DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре
Other Options available by customer requested

Meanwell GSM60B18-P1J Specifications

ORDER NO. GSM60B18-P1J
OUTPUT SAFETY MODEL NO. GSM60B18
DC VOLTAGE 18V
RATED CURRENT 3.33A
CURRENT RANGE 0-3.33A
RATED POWER 60W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
HOLD UP TIME (Typ.) 50ms / 230VAC 16ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89.00%
AC CURRENT 1.4A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 50 A/264VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 18.9-24.3V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
OPERATING ALTITUDE 3000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 3491.2K hrs min. Telcordia SR-332 (Bellcore) ; 694.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 125*50*31.5mm (L*W*H)
PACKING 0.32Kg; 40pcs/13.8Kg/1.04CUFT

Meanwell GSM60B18-P1J Features

l  3 years warranty

l  Lifetime>95K hours

l  LED indicator for power on

l  Extremely low leakage current

l  No load power consumption<0.1W

l  -30~+70℃ wide range working temperature

l  2 pole AC inlet lEC320-C8, ClassⅡ power unit

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1

Meanwell GSM60B18 Price and Specs 60W AC-DC Medical Adaptor GSM60B05-P1J 07 09 12 15 18 24 48 AC Inlet 3.33a YCICT

Meanwell GSM60B18-P1J Applications

l  Oral irrigator

l  Breath Machine

l  Medical computer monitor

l  Mobile clinical workstation

l  Portable hemodialysis machine

Meanwell GSM60B18 Price and Specs 60W AC-DC Medical Adaptor GSM60B05-P1J 07 09 12 15 18 24 48 AC Inlet 2 pole YCICT

Meanwell GSM60B18-P1J Mechanical Diagram

Meanwell GSM60B18 Price and Datasheet 60W AC-DC Medical Adaptor GSM60B05-P1J 07 09 12 15 18 24 48 AC Inlet 2 pole YCICT
