GSM25U18-P1J
12.26

GSM25U18-P1J

$12.26

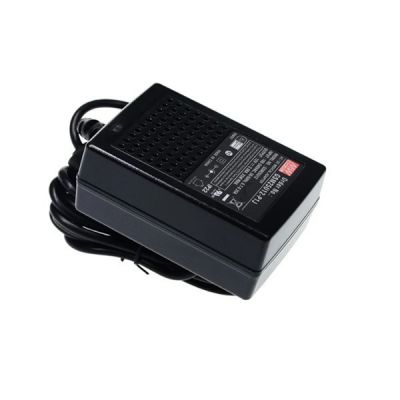

Meanwell 25W AC-DC Reliable Green Medical Adaptor with 18V1.38A0-1.38A25W150mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GSM25U18-P1J
Brand Meanwell
Details

Meanwell GSM25U18 is 25W AC-DC Reliable Green Medical Adaptor with 18V1.38A0-1.38A25W150mVp-p. The product highlights single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. GSM25U18 adopts input range from 80VAC to 264VAC with output voltage 18VDC. Therefore, it could satisfy the demands for various kinds of miniature medical devices. At the same time, the circuitry design meets the international medical standards (2 x MOPP) with ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM25U18 is compliant with USA EISA 2007/DoE and Canada NRCan. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GSM25U18 is also approved with the international medical safety certificates. Because of its high safety, high quality and high efficiency, Meanwell GSM25U18 serves as an ideal power supply solution for various types of medical electronic devices.

Meanwell GSM25U18 Price and Specs 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI 18V YCICT

Meanwell GSM25U18-P1J Encoding

GSM Series Name
25 Rated Wattage
U US 2 pin AC Plug
18 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM25U18-P1J Specifications

ORDER NO. GSM25U18-P1J
OUTPUT SAFETY MODEL NO. GSM25U18
DC VOLTAGE 18V
RATED CURRENT 1.38A
CURRENT RANGE 0-1.38A
RATED POWER 25W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87.00%
AC CURRENT 0.7A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.) Touch current < 50μA/264VAC
PROTECTION OVERLOAD 105 ~ 170% rated output powe
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 18.9-25.2V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVA
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 215g ; 60pcs / 13.9Kg / CARTON

Meanwell GSM25U18-P1J Features

l  Extremely low leakage current

l  No load power consumption<0.1W

l  Energy efficiency Level VI (except 5~9V for Level V)

l  -25~+60℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  2 pole USA plug, Class II power unit

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-1 1

Meanwell GSM25U18 Price and Specs 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI 18V 1.38A YCICT

Meanwell GSM25U18-P1J Applications

l  Blood qlucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

Meanwell GSM25U18 Price and Specs 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI Class II 18V YCICT

Meanwell GSM25U18-P1J Mechanical Diagram

Meanwell GSM25U18 Price and Datasheet 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI Class II YCICT
