Meanwell 20W High Reliable Green Medical Encapsulated Type

- +
Availability:In stock
SKU Meanwell MPM-20
Brand Meanwell
Details

Meanwell MPM-20 Series is a 20W AC/DC module type medical grade power supply designed in high density and small size (52.4*27.2*24mm) offered in pin type. The entire series outstands with the operation for 80~ 264VAC, low no load power consumption less than 0.1W, and high efficiency up to 87%. In addition, MPM-20 is equipped with the interior potting, 2G anti-vibration, high EMC performance, 4KV AC isolation, and so on, this allows to observe IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2xMOPP level. Apart from them, the series provide Class II (no FG) double insulation, outstanding dissipation and ultra-low leakage current. Considering its longevity, high reliability, excellent quality, Meanwell MPM-20 Series serves as a very suitable solution for BF (patient contact) type medical device or relevant equipment.

Meanwell MPM-20

Meanwell MPM-20 Series Encoding

MPM Series Name
20 Rated Wattage
5 Output Voltage

Meanwell MPM-20 Series Model Specifications

Model MPM-20-3.3 MPM-20-5 MPM-20-12 MPM-20-15 MPM-20-24
OUTPUT DC VOLTAGE 3.3V 5V 12V 15V 24V
RATED CURRENT 4.5A 4A 1.8A 1.4A 0.9A
CURRENT RANGE 0-4.5A 0-4A 0-1.8A 0-1.4A 0-0.9A
PEAK CURRENT 4.95A 4.4A 1.98A 1.54A 0.99A
RATED POWER 14.9A 20W 21.6A 21W 21.6W
PEAK LOAD(10sec.) 16.3W 22W 23.8W 23.1W 23.8W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 180mVp-p 180mVp-p
VOLTAGE TOL ERANCE  ±2.0% ±2.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.3% ±0.3% ±0.3%
LOAD REGUL .ATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113V~370VDC
FREQUENCY RANGE 47 ~ 440Hz
EFFICIENCY (Typ.) 81.00% 85.00% 85.50% 87.00% 87.00%
AC CURRENT (Typ.) 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 20A/115VAC 45A/230VAC
LEAKAGE CURRENT Touch current <80μA/264VAC
PROTECTION OVERL OAD 110% ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-5V 5.8-6.8V 13.8-16.2V 17.3-20.3V 27.6-32.4V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

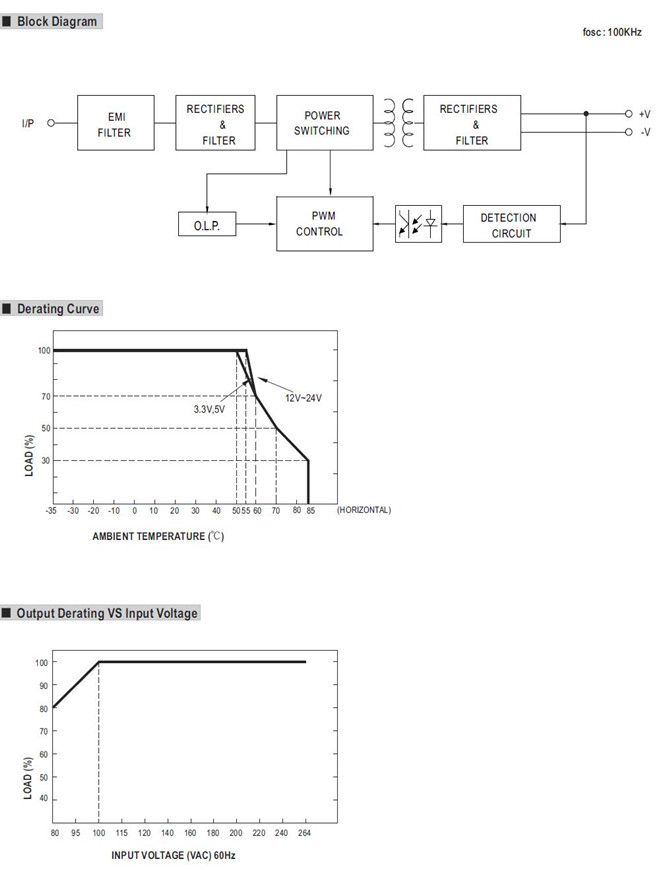

ENVIRONMENT WORKING TEMP. -35 ~ +85(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
LEAD TEMPERATURE 260±5,5s (max.)
OPERATING ALTITUDE 5000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, BS EN/EN60601-1, IEC60335-1, BS EN/EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version),
CAN/CSA-C22 3 Edition approved rd
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55011 (CISPR11) Class B
Radiated BS EN/EN55011 (CISPR11) Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN60601-1-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz )
Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
OTHERS MTBF 1210Khrs min. MIL-HDBK-217F (25)
DIMENSION 52.4*27.2*24mm (L*W*H) or 2.06 *1.07 *0.94 inch
PACKING 0.056Kg; 240pcs/14.4Kg/0.94CUFT

Meanwell MPM-20 Series Features

l  2.06"x1.07" compact size

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

l  Suitable for BF application with appropriate system considerationNo load power consumption<0.1W

l  Extremely low leakage current

l  Wide operating temp. range -35~+85℃

l  ЕМІ сlаѕѕ В fоr сlаѕѕⅡсоnfіgurаtіоn

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  No minimum load required

l  3 years warranty

Meanwell MPM-20

Meanwell MPM-20 Series Applications

l  Portable medical device

l  Mobile clinical workstation

l  Medical computer monitor

l  Medical examination instrument

Meanwell MPM-20 Series Applications

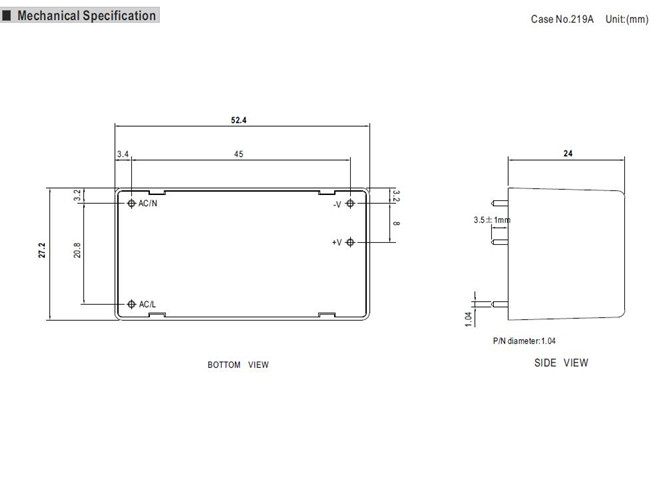

Meanwell MPM-20 Series Mechanical Diagram

Meanwell MPM-20 Series Mechanical DiagramMeanwell MPM-20 Series Mechanical Diagram
