GSM12E15-P1J
13.13
Details

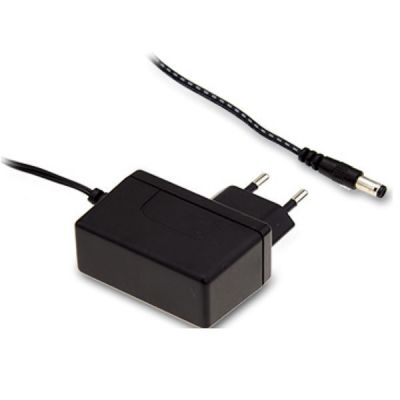

Meanwell GSM12E15 is 12W AC-DC Green Medical Adaptor with 15V0.8A0-0.8A12W80mVp-p. It outstands single-output, wall-mounted, compact and convenient for carry. The product is equipped with standard 2-pin European plug. GSM12E15 is a classⅡpower unit (no FG), and adopts the input range from 80VAC to 264VAC. So it can satisfy the demands for various types of medical electrical devices. At the same time, the circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. The working efficiency reaches high up to 87% and extremely low no-load power consumption below 0.075W (<0.1W for 18V/48V). Additionally, GSM12E15 is compliant with EU ErP, and meets CoC version 5 (Except fo18V/48V). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The unit is also approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazard. As a result of its high safety, high quality and high efficiency, Meanwell GSM12E15 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM12E15-P1J Encoding
| GSM | Series Name |
| 12 | Rated Wattage |
| E | European 2 pin AC Plug |
| 15 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (type A) for 5V model only | |
| Other Options available by customer requested |
Meanwell GSM12E15-P1J Specifications
| ORDER NO. | GSM12E15-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM12E15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 0.8A | |
| CURRENT RANGE | 0-0.8A | |
| RATED POWER | 12W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms, 16ms/230VAC 500ms, 30ms, 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 100μA/264VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 0 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 0 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN60601-1, BS EN/EN60601-1-11 (3.1 version), IS13252(Part1)/IEC60950-1(for USB only), EAC TP TC 004 approved GSM12E05-USB without BS EN/EN60601-1-11 |
| ISOLATION LEVEL | Pimary - Secondary: 2 x MOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | Life | 3 years : 100% load 40℃, 12hours / day |
| MTBF | 400Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 62.2*27.4*39.7mm (L*W*H) | |
| PACKING | 100g, 90pcs / 10kg / CARTON for cable connection ; 76g, 150pcs / 12.5kg / CARTON for USB connection | |
Meanwell GSM12E15-P1J Features
l 3 years warranty
l Universal AC input/Full range
l Extremely low leakage current
l Energy efficiency Level VI
l ClassⅡ power (no earth pin)
l Fully enclosed plastic case
l -20℃~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
l No load power consumption< 0.075W(<0.1W for 18V/48V)
l Medical safety approved (2xMOPP) according to BS EN/EN6O6O1-1/BS EN/EN60601-1-1 1
Meanwell GSM12E15-P1J Applicatiions
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
l Sleep apnea devices
Meanwell GSM12E15-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
