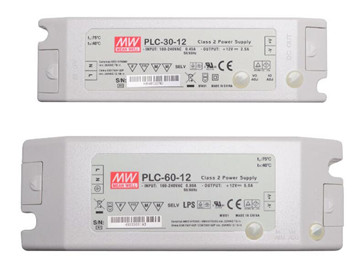

Meanwell PLC-30 Series is 30W Single Output LED Power Supply highlighting molded case non-glued waterproof with single-stage power factor correction. The entire seires accpets universal AC input Full range and no ground wires required for input. The power supply passes Class 2 limit testing, and has comprehensive protection including overtemperature protection. Output voltage is divided into 9V, 12V, 15V, 20V, 24V, 27V, 36V, 42V, 48V. In addition, the input and output wiring adopts screw terminal junction box, which is suitable for LED indoor lighting and LED electronic billboard related applications.
Meanwell PLC-30 Series Model Specifications
| Model | PLC-30-9 | PLC-30-12 | PLC-30-15 | PLC-30-20 | PLC-30-24 | PLC-30-27 | PLC-30-36 | PLC-30-48 | |
| OUTPUT | DC VOLTAGE | 9V | 12V | 15V | 20V | 24V | 27V | 36V | 48V |
| CONSTANT CURRENT REGION | 6.3-9V | 8.4-12V | 10.5-15V | 14-20V | 16.8-24V | 18.9-27V | 25.2-36V | 33.6-48V | |
| RATED CURRENT | 3.3A | 2.5A | 2A | 1.5A | 1.25A | 1.12A | 0.84A | 0.63A | |
| CURRENT RANGE | 0-3.3A | 0-2.5A | 0-2A | 0-1.5A | 0-1.25A | 0-1.12A | 0-0.84A | 0-0.63A | |
| RATED POWER | 29.7W | 30W | 30W | 30W | 30W | 30.24W | 30.24W | 30.24W | |
| RIPPLE & NOISE (max.) | 2.6Vp-p | 2Vp-p | 2.6Vp-p | 2.6Vp-p | 2.4Vp-p | 2.3Vp-p | 3.6Vp-p | 3.7Vp-p | |
| VOLTAGE ADJ. RANGE | 8.55-9.9V | 11.4-13.2V | 14.5-16.5V | 19-22V | 22.8-26.4V | 25.65-29.7V | 34.2-39.6V | 45.6-52.8V | |
| CURRENT ADJ. RANGE | 2.475-3.399A | 1.875-2.575A | 1.5-2.06A | 1.125-1.545A | 0.938-1.288A | 0.84-1.1536A | 0.63-0.865A | 0.473-0.649A | |
| VOLTAGE TOLERANCE | ±10% | ||||||||
| LINE REGULATION | ±3.0% | ||||||||
| LOAD REGULATION | ±5.0 | ||||||||
| SETUP TIME | 500ms / 230VAC 3000ms / 115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||

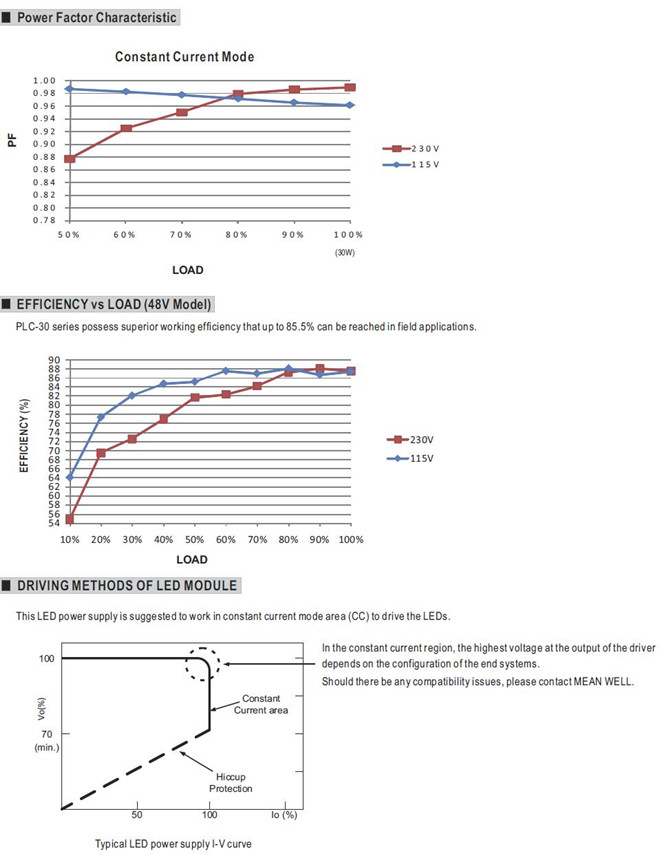

| POWER FACTOR (Typ.) | PF>0.95/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve) | ||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=70% at 115VAC/230VAC input | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 82.50% | 83.50% | 84.00% | 84.00% | 84.50% | 85.00% | 85.50% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC | ||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC | ||||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||||
| PROTECTION | OVER CURRENT | 100 ~ 110% | |||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | ||||||||
| OVER VOLTAGE | 10-14V | 14-17V | 17-22V | 23-26V | 27-34V | 31-35V | 40-50V | 53-63V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, auto-recovery | ||||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.06%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
| SAFETY&EMC | SAFETY STANDARDS | UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14,GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1,BS EN/EN61000-3-2 Class C (Pin>=25W), Class D (>70% load) ; BS EN/EN61000-3-3,EAC TP TC 020 |
||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, EAC TP TC 020 | ||||||||
| Others | MTBF | 4293.1K hrs min. Telcordia SR-332 (Bellcore) 625.5Khrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 160*46*30mm (L*W*H) | ||||||||
| PACKING | 0.2Kg; 70pcs/15Kg/0.96CUFT | ||||||||
Meanwell PLC-30 Series Features
l Universal AC input/Full range
l Adjustable output voltage and current level
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Cooling by free air convection
l Built-in constant current limiting circuit
l Fully isolated plastic case with terminal block style of Il/O
l Built-in active PFC function, comply with BS EN/EN61000-3-2 class C(Pin225W)
l ClassⅡpower unit, no FG
l Class 2 power unit
l 100% full load burn-in test
l High reliability
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l 2 years warranty

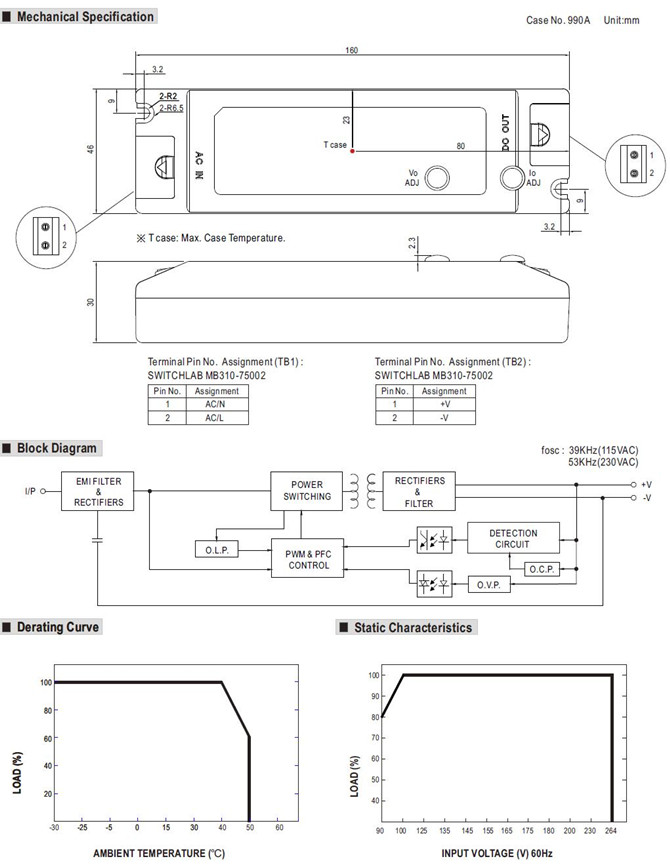

Meanwell PLC-30 Series Mechanical Diagram
