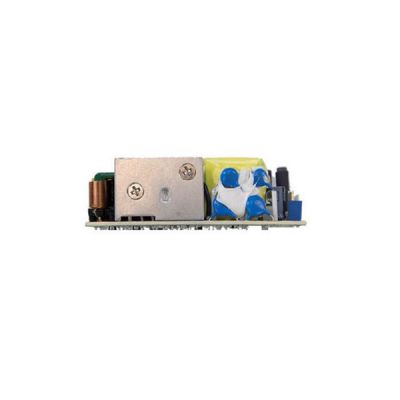

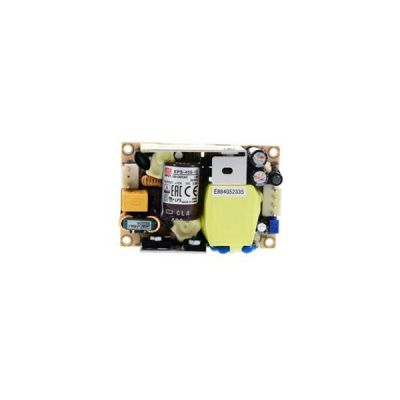

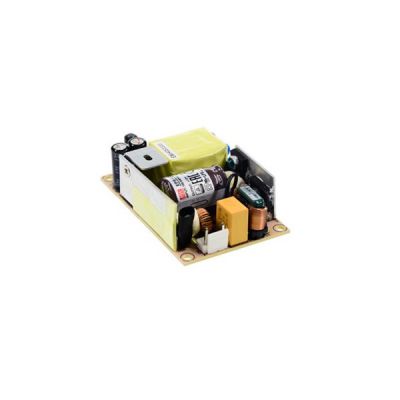

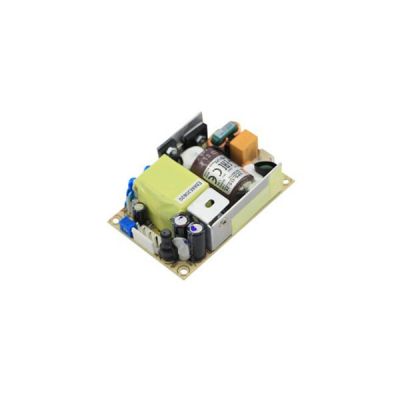

EPS-45S-7.5
13.26
Details
Meanwell EPS-45S-7.5 is 45W highly reliable green PCB type industrial power supply with 7.5V5.4A0-5.95A40.5W44.6W80mVp-p7.12-8.3V. It has high-power density on the3" by 2" footprint. Meanwhile, the item accepts 80~264VAC input and gives various output voltages between 3.3V and 48V. With the working efficiency reaching up to 91% and the extremely low no load power consumption<0.1W. EPS-45S-7.5 is able to be used for ClassⅡ(no FG) system design. Moreover, the product complies with ErP specifications for end systems and Energy Star requirements. It is cooled by free air convection and equipped with various protection types like Short circuit, Overload and Over voltage. Based on the complete protection and relevant certificates for UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004. Meanwell EPS-45S-7.5 is ideal for applications such as factory automation, electrical and mechanical equipment, etc.
Meanwell EPS-45S-7.5 Encoding
| EPS | Series Name |
| 45 | Output Wattage |
| S | Small Size |
| 7.5 | Output Voltage |
Meanwell EPS-45S-7.5 Specifications
| Model | EPS-45S-7.5 | |
| OUTPUT | DC VOLTAGE | 7.5V |
| RATED CURRENT | 5.4A | |
| CURRENT RANGE | 0-5.95A | |
| RATED POWER | 40.5W | |
| PEAK LOAD (10sec.) | 44.6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE ADJ. RANGE | 7.12-8.3V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 30ms / 230VAC 12ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 1.2A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT(Typ.) | СOLD STAR 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | 0.25mA/264VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 8.62-11.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, Heavy industry Level criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 726.2Khrs min. MIL-HDBK-217(25℃) |
| DIMENSION | 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H) | |
| PACKING | 0.11Kg; 120pcs/14.2Kg/0.94CUFT | |
Meanwell EPS-45S-7.5 Features
l 3"x2"miniature size
l For 1U applications
l 3 years warranty
l High efficiency up to 91%
l LED indicator for power on
l Cooling by free air convection
l Universal AC input/Full range
l Class П (without FG) installations
l No load power consumption<0.1 W
l -30~70℃ wide range of operating temperature
l Operating altitude up to 5000 meters
l Protections: Short circuit/Overload/Over voltage
Meanwell EPS-45S-7.5 Applications
l Industrial electrical equipment
l Mechanical equipment
l Factory automation equipment
l Handheld electronic device
Meanwell EPS-45S-7.5 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
