Meanwell 40W AC/DC Single Output DIN rail type security power supply with Battery Charger (UPS Function)

- +
Availability:In stock
SKU Meanwell DRC-40
Brand Meanwell
Details

Meanwell DRC-40 Series is 40W AC/DC Single Output DIN rail type security power supply Battery Charger (UPS Function). The series can be mounted on DIN rail TS-35/7.5 or 15, and the width is just 40mm. so that it is well suited for the installation in limited spacing. In addition to the primary output, there is a charger output with smaller rated current, enabling the backup power supply application the security access systems require. DRC-40 series also accepts the universal input between 90V AC and 264VAC, and supplies 13.8VDC and 27.6VDC at output. With the efficiency reaching up to 87%, it can operate with air convection cooling under -30℃ through 70℃. Except for the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided as well, via TTL open collector output for the standard model (via relay contact output as the optional model), to facilitate the system design. Considering its high efficiency, excellent reliability and long lifespan. Meanwell DRC-40 series serves as an ideal power supply solution for industrial applications.

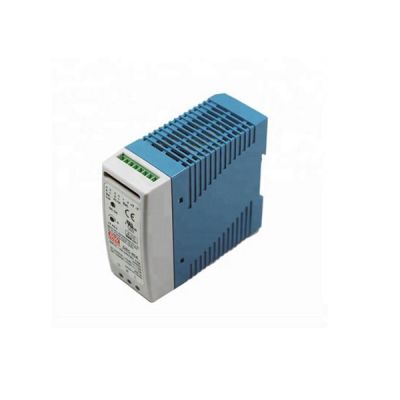

Meanwell DRC-40 Series

Meanwell DRC-40 Series Encoding

DRC Series Name
40 Output wattage
A Output Voltage

Meanwell DRC-40 Series Model Specifications

Model DRC-40A DRC-40B
OUTPUT OUTPUT NUMBER CH1 CH2 CH1 CH2
DC VOLTAGE 13.8V 13.8V 27.6V 27.6V
RATED CURRENT 1.9A 1A 0.95A 0.5A
CURRENT RANGE 0-2.9A ----- 0-1.45A ----
RATED POWER 40.02W 40.02W
RIPPLE & NOISE (max.) 120mVp-p ---- 200mVp-p ----
VOLTAGE ADJ. RANGE CH1:12-15V CH1:24-30V
VOLTAGE TOL ERANCE  ±1.0% ---- ±1.0% ----
LINE REGULATION ±0.5% ---- ±0.5% ----
LOAD REGULATION ±0.5% ---- ±0.5% ----
SETUP, RISE TIME 400ms, 50ms/230VAC 800ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.) 86.00% 87.00%
AC CURRENT (Typ.) 0.8A/115VAC 0.6A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 60A/230VAC
PROTECTION OVERL OAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:14.49 ~ 18.63V CH1:28.98 ~ 37.26V
Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF 10±0.5V 20±1V
FUNCTION AC OK Open collector output, CONTACT : AC OK ; CUT OFF : AC Fail ; max. rating : 50V/30mA
BATTERY LOW Open collector output, CUT OFF : Battery ; CONTACT : Battery Low ; max. rating : 50V/30mA
Battery low voltage : < 11V Battery low voltage : < 22V
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0~50) on CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61204-3, light industry level, EAC TP TC 020
OTHERS MTBF 2496.2K hrs min. Telcordia SR-332 (Bellcore) ; 536.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 40*90*100mm (W*H*D)
PACKING 0.3Kg; 42pcs/13.6Kg/0.82CUFT

Meanwell DRC-40 Series Features

l  Universal AC input/Full range

l  Protections: Short circuit/Overload/Over voltage

l  Battery low protection/ Battery reverse polarity protectionby fuse

l  Can be installed on DIN rail TS-35/7.5 or 15

l  Alarm signal for AC OK and Battery low (via TTL open collector, optional via relay)

l  Cooling by free air convection

l  Pass LPS

l  LED indicator for power on

l  100% full load burn-in test

l  3 years warranty

DRC-40

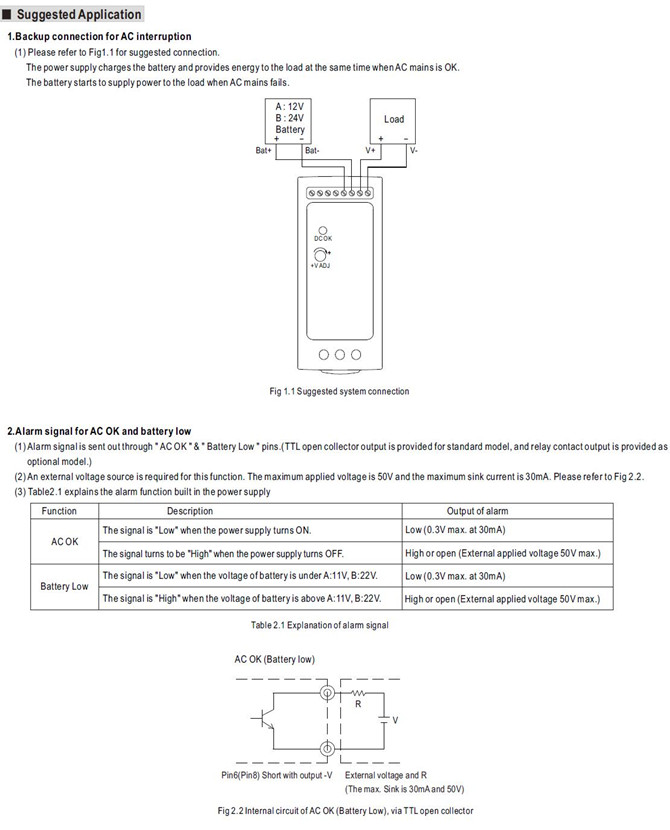

Meanwell DRC-40 Series Applications

l  Security system

l  Emergency lighting system

l  Alarm system

l  DC UPS system

l  Central monitoring system

l  Access systems

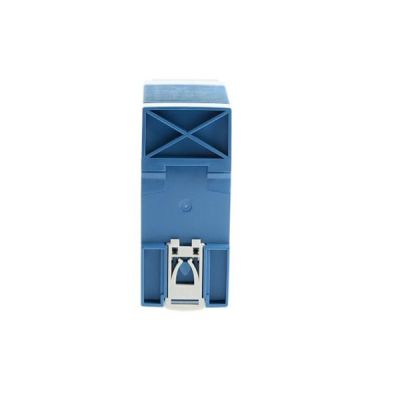

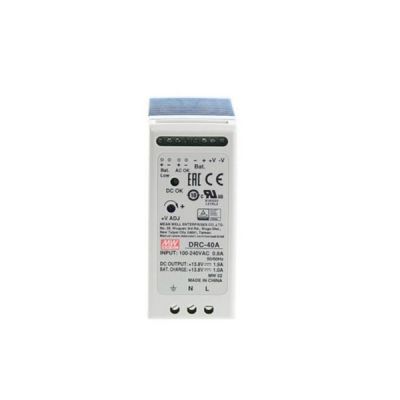

Meanwell DRC-40

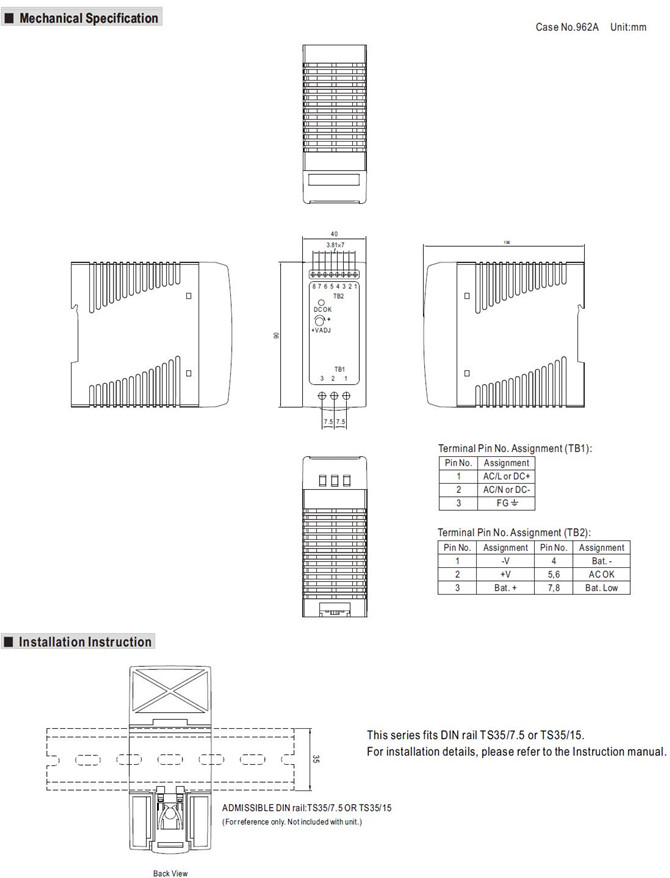

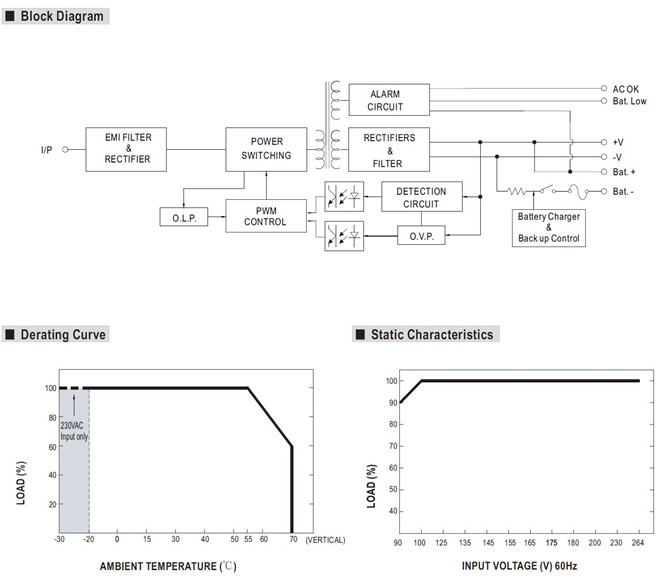

Meanwell DRC-40 Series Mechanical Diagram

Meanwell DRC-40 Series Mechanical Diagram

Meanwell DRC-40 Series Mechanical Diagram

Meanwell DRC-40 Series Mechanical Diagram
