EPS-35-5
12.15

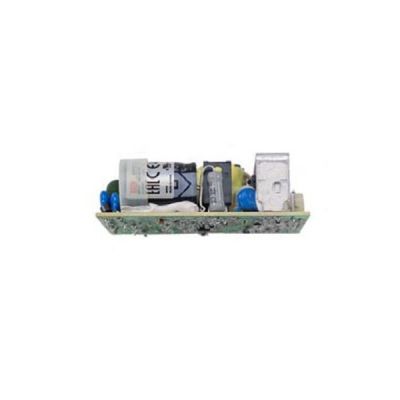

EPS-35-5

$12.15

Meanwell 35W Single Output Switching Power Supply with 5V6A0-6.6A30W33W70mVp-p4.75-5.5V±2.0%±0.5%±1%

- +
Availability:In stock
SKU Meanwell EPS-35-5
Brand Meanwell
Details

Meanwell EPS-35-5 is 35W Single Output Switching Power Supply with 5V6A0-6.6A30W33W70mVp-p4.75-5.5V. This item is designed in compact size, and provides printed circuit board architecture for direct mounting to the system chassis. Additionally, it features a universal 85 to 264V AC input. With the high efficiency up to 90% and the extremely low no-load power consumption, EPS-35-5 complies with ErP specifications for end systems and Energy Star requirements. Apart from them, it allows free air convection cooling from -30 to +70℃, and  offers various protections like Short circuit, Overload and Over voltage. Thanks to the complete protection functions and relevant certificates for UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, Meanwell EPS-35-5 is fit for various applications such as factory automation, electrical and mechanical equipment and applications requiring low no-load power consumption.

Meanwell EPS-35

Meanwell EPS-35-5 Specifications

Model EPS-35-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 6A
CURRENT RANGE 0-6.6A
RATED POWER 30W
PEAK LOAD (10sec.) 33W
RIPPLE & NOISE (max.) 70mVp-p
VOLTAGE ADJ. RANGE 4.75-5.5V
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 82.00%
AC CURRENT (Typ.) 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <1mA/240VAC
PROTECTION OVERL OAD 115 ~ 170% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.6-6.75V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 2000 meters
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 649.1K hrs min. MIL-HDBK-217F (25 )
DIMENSION 76.2*50.8*24mm (L*W*H)
PACKING 0.085Kg; 120pcs/11.2Kg/0.94CUFT

Meanwell EPS-35-5 Features

l  3 years warranty

l  Universal AC input/ Full range

l  High efficiency up to 90%

l  Cooling by free air convection

l  3"x2" compact size

l  LED indicator for power on

l  No load power consumption<0.3W

l  Protections: Short circuit / Overload / Over voltage

Meanwell EPS-35-5 Features

Meanwell EPS-35-5 Mechanical Diagram

Meanwell EPS-35-5 Mechanical Diagram
