Meanwell160W Constant Voltage and Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell HBG-160P
Brand Meanwell
Details

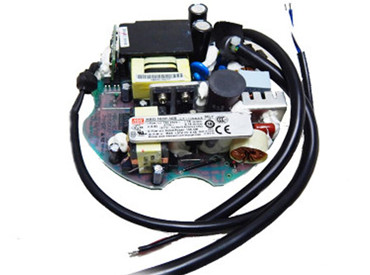

Meanwell HBG-160P Series is a 1 60W AC/DC PCB type LED driver featuring the circular shape design. The entire series operates from 90~ 305VAC. And at the same time, it provides the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Since the efficiency reaches high up to 93.5% and the fanless design, HBG-160P is able to work for-40℃~ + 45℃ under free air convection. Apart from them, it is equipped with various function options such as dimming methodology. Considering its long lifetime, high efficiency and excellent quality, Meanwell HBG-160P Series is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HBG-160P Meanwell HBG-160P series price and specs ac dc led driver power supply 160w ycict

Meanwell HBG-160P Series Encoding

HBG Series Name
160P Rated Wattage PCB Type
36 Rate output voltage ( 36/48/60v)
A Function options
Type Function Note
A lo adjustable through built-in potentiometer In stock
B 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) In stock
DA DALI control technology In stock

Meanwell HBG-160P Series Model Specifications

Model HBG-160P-36  HBG-160P-48  HBG-160P-60
OUTPUT DC VOLTAGE 36V 48V 60V
CONSTANT CURRENT REGION 21.6-36V 28.8-48V 36-60V
RATED CURRENT 4.4A 3.3A 2.64A
RATED POWER 158.4W 158.4W 156W
RIPPLE & NOISE (max.) 300mVp-p 300mVp-p 300mVp-p
CURRENT ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
2.6-4.4A 1.98-3.3A 1.6-2.6A
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.) 12ms/115VAC,230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127~417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC, PF>+0.92/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  92.00% 93.00% 93.50%
AC CURRENT 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION Standby power consumption <0.5W for B/DA-Type
A-Type please refer to Note. 9
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 41-47V 54-62V 65-75V
Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Ta=-40 ~ +45 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1, GB19510.14, EAC TP TC 004 approved
DALI STANDARDS Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load >=60%) ; BS EN/EN61000-3-3, GB17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020
Others MTBF 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;195.6K hrs min. MIL-HDBK-217F (25)
DIMENSION Refer to mechanical specification
PACKING 0.4Kg; 36pcs/15.4Kg/1.35CUFT

Meanwell HBG-160P Series Features

l  Constant Voltage + Constant Current mode output

l  Circular shape PCB type design

l  Built-in active PFC function

l  Function options: output adjustable via potentiometer;3 in 1 dimming; DALI

l  Typical lifetime>50000 hours

l  5 years warranty

Meanwell HBG-160P meanwell HBG Series price and specs ac dc led driver ycict

Meanwell HBG-160P Series Applications

l  LED bay lighting

l  LED stage lighting

l  LED spot lighting

l  LED down lighting

l  LED mining lighting

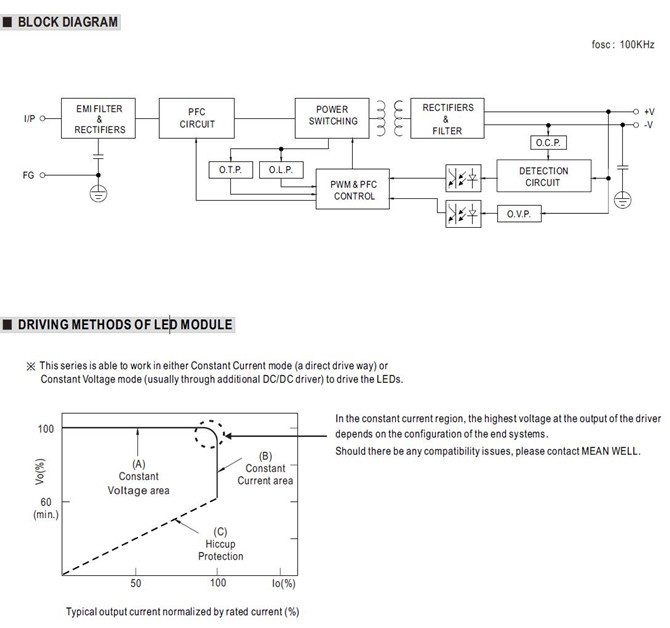

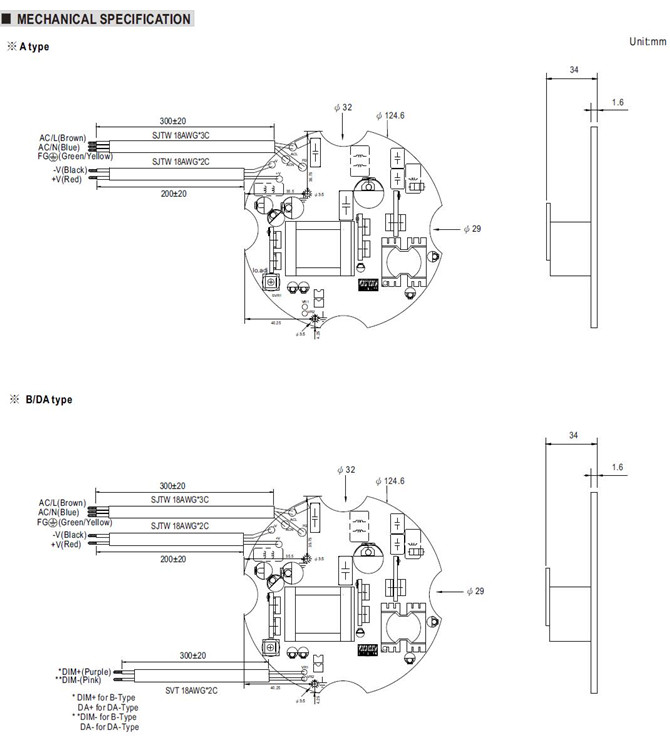

Meanwell HBG-160P Series Mechanical Diagram

Meanwell HBG-160P Series Mechanical Diagram meanwell HBG-160 price and specs ac dc led driver ycict

Meanwell HBG-160P Series Mechanical Diagram meanwell HBG-160P POWER SUPPLY AC DC LED DRIVER ycict
