EPS-25-48
12.71

EPS-25-48

$12.71

Meanwell 25W Single Output Switching Power Supply with 48V0.53A0-0.59A25.44W28.32W240mVp-p43.2-52.8V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell EPS-25-48
Brand Meanwell
Details

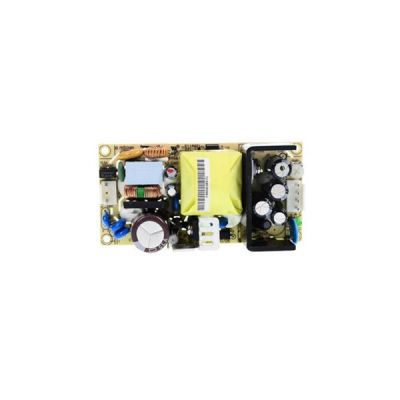

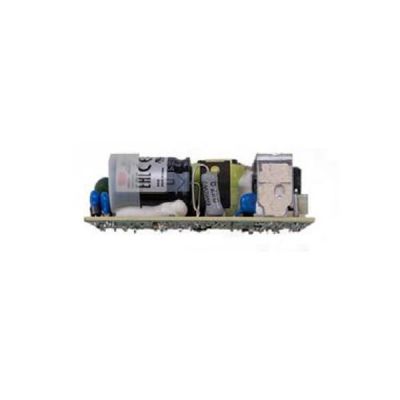

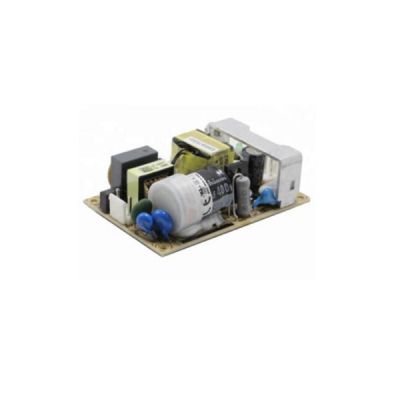

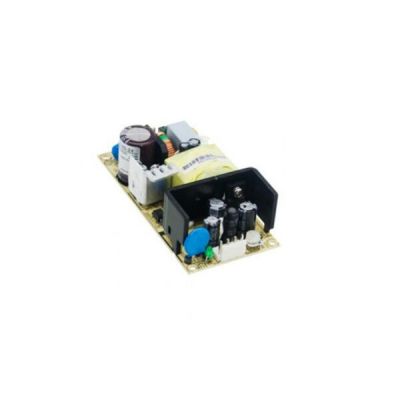

Meanwell EPS-25-48 is 25W Single Output Switching Power Supply with 48V0.53A0-0.59A25.44W28.32W240mVp-p43.2-52.8V. This item is 30% smaller than the previous and 10% more efficient. Meanwhile, it is cooled by free air convection and operate under altitude up to 2000 meters. With the high efficiency reaching up to 90% and the extremely low no-load power consumption, EPS-25-48 complies with ErP specifications for end systems and Energy Star requirements. Additionally, this power provides various protections such as Short circuit, Overload and Over voltage. Thanks to the complete protection functions and relevant certificates for UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, Meanwell EPS-25-48 is perfect for various applications such as factory automation, electrical and mechanical equipment and applications requiring low no-load power consumption.

Meanwell EPS-25-48 Specifications

Meanwell EPS-25-48 Specifications

Model EPS-25-48
OUTPUT DC VOLTAGE 48V
RATED CURRENT 0.53A
CURRENT RANGE 0-0.59A
RATED POWER 25.44W
PEAK LOAD (10sec.) 28.32W
RIPPLE & NOISE (max.) 240mVp-p
VOLTAGE ADJ. RANGE 43.2-52.8V
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 90.00%
AC CURRENT (Typ.) 0.6A/115VAC 0.4A/230VAC
INRUSH CURRENT(Typ.) COLD START 35A/230VAC
LEAKAGE CURRENT <1mA/240VAC
PROTECTION OVERL OAD 115 ~ 170% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 55.3-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 2000 meters
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 655.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 76.2*50.8*24mm (L*W*H)
PACKING 0.081Kg; 120pcs/10.7Kg/0.94CUFT

Meanwell EPS-25-48 Features

l  Universal AC input/Full range

l  3 years warranty

l  High efficiency up to 90%

l  Protections: Short circuit / Overload / Over voltage

l  Cooling by free air convection

l  3"X 2" compact size

l  LED indicator for power on

l  No load power consumption<0.3W

Meanwell EPS-25

Meanwell EPS-25-48 Mechanical Diagram

Meanwell EPS-25-48 Mechanical Diagram
