EPP-500-15
66.34

EPP-500-15

$66.34

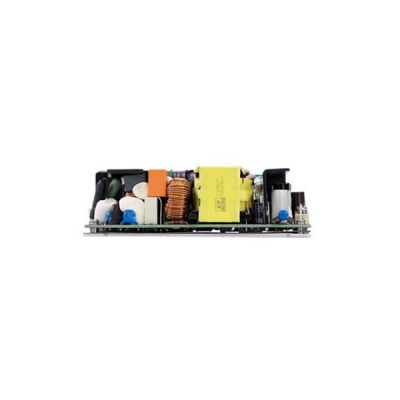

500W 5"x3" compact size Green Open Frame Power Supply 15V33.3A21.3A499.5W319.5W550W200mVp-p14.3-15.8V±3.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell EPP-500-15
Brand Meanwell
Details

Meanwell EPP-500-15 is 500W highly reliable green PCB type power supply with 15V33.3A21.3A499.5W319.5W550W200mVp-p14.3-15.8V. It highlights PFC Function and density on the 5" by 3"footprint. Meanwhile, the unit accepts 80~264V AC input and various output voltages between 12V and 54V. With the high working efficiency up to 94% and the extremely low no load power consumption down below 0. 5W, it allows EPP-500-15 able to be applied for both Class I (with FG) and Class II (no FG) system. Additionally, the unit offers complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Moreover, the model complies with the international safety regulations such as TUVBS EN/EN62368-1, TUV BS EN/E N60335-1, UL .62368-1 and lEC62368-1. Due to Its high efficiency, high reliability and long longevity. Meanwell EPP-500-15 is a high price-to-performance power supply solution for various industrial applications.

Meanwell EPP-500-15 Encoding

Meanwell EPP-500-15 Encoding

EPP Series Name
500 Rated Wattage
15 Output Voltage

Meanwell EPP-500-15 Specifications

Model EPP-500-15
OUTPUT DC VOLTAGE 15V
CURRENT   25CFM 33.3A
Convection 21.3A
RATED POWER 25CFM 499.5W
Convection 319.5W
PEAK POWER (3sec) 550W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE 14.3-15.8V
VOLTAGE TOL ERANCE  ±3.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 10ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 92.00%
AC CURRENT (Typ.) 5.8A/115VAC 2.9A/230VAC
INRUSH CURRENT(Typ.) COLD START 40A/115VAC 80A/230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVERL OAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.2-15.6V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION 5V STANDBY 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM ; tolerance±2%, ripple : 120mVp-p(max.)
12V FAN SUPPLY 12V@0.5A for driving a fan tolerance -15% ~+10% at main output 20% rated current (25CFM)
POWER GOOD / POWER FAIL 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal
goes low at least 1ms before Vo below 90% of rated value
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
OPERATING ALTITUDE 5000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
OTHERS MTBF 194.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 127x76.2x41mm 5″x3″x1.61″inch
PACKING 0.46Kg30pcs14.8Kg0.96CUFT

Meanwell EPP-500-15 Features

l  5"x3" compact size

l  3 years warranty

l  320W convection,500W force air

l  550W peak power (3sec.)

l  LED indicator for power on

l  High efficiency up to 94%

l  Operating altitude up to 5000 meters

l  EMI for both Class I & Class II configuration

l  -30~+70℃ wide range operating temperature

l  No load power consumption<0.5W by PS_ ON control

l  Protections: Short circuit /Overload /Over voltage/Over temperature

l  5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense

Meanwell EPP-500-15 Features

Meanwell EPP-500-15 Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Power sourcing equipment of PoE

l  Electronic instruments, equipment, or apparatus

Meanwell EPP-500-15 Applications

Meanwell EPP-500-15 Mechanical Diagram

Meanwell EPP-500-15 Mechanical DiagramMeanwell EPP-500-15 Mechanical Diagram
