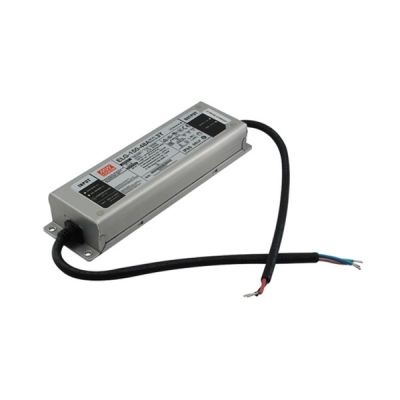

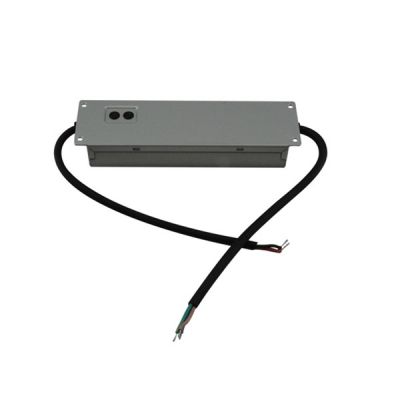

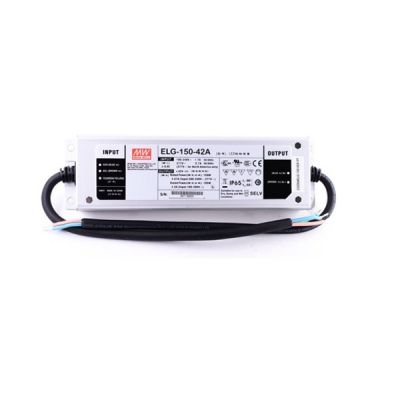

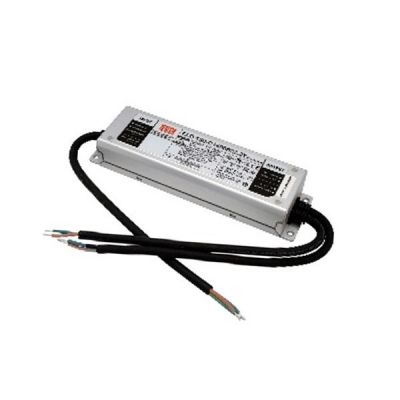

ELG-150-42
23.91

ELG-150-42

$23.91

Meanwell 84~150W Constant Voltage + Constant Current LED Driver with 42V21-42V3.57A3.2A105W150W134.4W250 mVp-p37.8-46.2V1.8-3.57A±2.5%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell ELG-150-42
Brand Meanwell
Details

Meanwell ELG-150-42 is a 150W AC/DC LED driver with 42V21-42V3.57A3.2A105W150W134.4W250 mVp-p37.8-46.2V1.8-3.57A. The model highlights the dual mode constant voltage and constant current output. And it is able to operate from 100~305VAC with the rated voltage 42V. Because of the high efficiency up to 91 % and the fanless design, ELG-150-42 could work for -40 ℃~ +90 ℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level permits to fit both indoor and outdoor applications. What’s more, it is supplied with various function options, such as dimming methodologies. As a result of its long life, high efficiency and excellent quality, Meanwell ELF-150-42 is an ideally suitable solution for the optimal design flexibility for LED lighting system

Meanwell ELG-150-42 Meanwell ELG-150-42 price and specs 150w ac dc led driver ycict

Meanwell ELG-150-42 EncZding

ELG Series Name
150 Rated Wattage
42 Rated Output Voltage (12/24/36/42/48V/54V)
A Function Mode Option
***( Input Wiring Type) Blank: 2-wire input for standard model)
3Y: 3-wire input for standard model)
Type IP Level Function Note
Blank IP67 IO and VO fixed In stock
A IP65 lo and Vo adjustable through built-in potentiometer. In stock
IP67 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance)
In stock
DA IP67 DALI control technology In stock
Dx IP67 Built-in Smart timer dimming function by user request By request
D2 IP67 Built-in Smart timer dimming and programmable function In stock
BE IP67 3 in 1 dimming function and Auxiliary DC output In stock

Meanwell ELG-150-42 Specifications

Model ELG-150-42
Output DC VOLTAGE 42V
CONSTANT CURRENT REGION 21-42V
RATED CURRENT 3.57A
RATED CURRENT(for BE Type only) 3.2A
RATED POWER   100VAC ~ 180VAC
For all types 105W
200VAC ~ 305VAC
(Except for BE Type) 150W
(For BE Type only) 134.4W
RIPPLE & NOISE (max.)  250 mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
37.8-46.2V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
1.8-3.57A
VOLTAGE TOLERANCE ±2.5%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
AUXILIARY DC OUTPUT Nominal 15V(deviation 11.5~15.5V)@0.3A for BE-Type only
SETUP, RISE TIME 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.) 10ms/115VAC, 230VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC atfull load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  90.00%
EFFICIENCY (Typ.)(for BE Type only) 89.00%
AC CURRENT 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT (Typ. ) COLD START 65A(twidth=550 s measured a μ t 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type
Standby power consumption <0.5W for B / AB / DA-Type
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down output voltage, re-power on to recover
OVER VOLTAGE 47-54V
Shut down output voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
MAX. CASE TEMP. Tcase=+90
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”)(except for BE-type), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13
independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB19510.1,GB19510.14; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; Gb17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547
Others MTBF 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 219*63*35.5mm (L*W*H)
PACKING 0.95Kg ; 16pcs/16.0kg/0.77CUFT

Meanwell ELG-150-42 Features

l  Constant Voltage + Constant Current mode output

l  Metal housing design with functional Ground

l  Built-in active PFC function

l  Typical lifetime>50000 hours

l  5 years warranty

l  No load/Standby power consumption <0. 5W

l  IP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALl; Auxiliary DC output

Meanwell ELG-150-42 Features Meanwell ELG-150-42 price and specs ac dc led driver ycict

Meanwell ELG-150-42 Applications

l  LED bay lighting

l  LED floodlighting

l  LED street lighting

l  LED architectural lighting

l  Type HL" for use in Class I, Division 2hazardous (Classified) location

Meanwell ELG-150-42 Mechanical Diagram

Meanwell ELG-150-42 Mechanical Diagram Meanwell ELG-150-42 price and specs ac dc led driver elg-150 series ycict

Meanwell ELG-150-42 Mechanical Diagram Meanwell ELG-150-42 price and specs ac dc 150w led drier ycict
