Meanwell 70~100W Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell ELG-100-C
Brand Meanwell
Details

Meanwell ELG-100-C Series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. At the same time, the entire series operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Due to the high efficiency up to 92% and the fanless design, ELG-100-C is able to work for -40 ℃~+90 ℃ case temperature under free air convection. Apart from them, the design of metal housing and IP67/IP 65 ingress protection level allows them to fit both indoor and outdoor applications. What’s more, ELG-1 00-C is equipped with various function options, such as dimming methodologies. Considering its long lifetime, high efficiency and excellent reliability, Meanwell ELG-100-C Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.

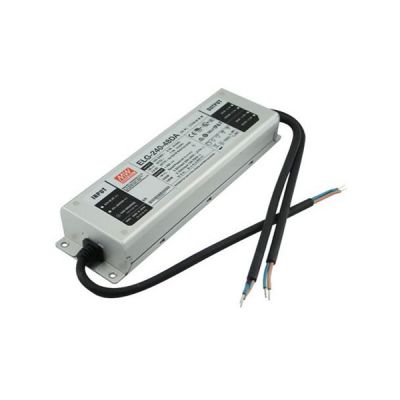

Meanwell ELG-100-C Meanwell ELG-100-C series price and specs 100W LED AC/DC driver ycict

Meanwell ELG-100-C Series Encoding

ELG Series Name
100 Rated Wattage
C500 Rated Output Current ( 350/500/700/1050/1400mA))
A Function Option
***( Input Wiring Type) Blank: 2-wire input for standard model)
3Y: 3-wire input for standard model)
Type IP Level Function Note
Blank IP67 IO  fixed In stock
A IP65 lo adjustable through built-in potentiometer. In stock
IP67 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer &
3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance)
In stock
DA IP67 DALI control technology In stock
Dx IP67 Built-in Smart timer dimming function by user request By request
D2 IP67 Built-in Smart timer dimming and programmable function In stock

Meanwell ELG-100-C Series Model Specifications

Model ELG-100-C350 ELG-100-C500 ELG-100-C700 ELG-100-C1050 ELG-100-C1400
Output RATED CURRENT 350mA 500mA 700mA 1050mA 1400mA
RATED POWER 200VAC ~ 305VAC
100.1W 100W 100.1W 99.75W 100.8W
100VAC ~ 180VAC
80W 70W 70W 70.35W 70W
CONSTANT CURRENT REGION 143-286V 100-200V 71-143V 48-95V 35-72V
OPEN CIRCUIT VOLTAGE (max) 297V 210V 149V 105V 75V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
175-350mA 250-500mA 350-700mA 525-1050mA 700-1400mA
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 1000ms/115VAC 500ms/230VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC
EFFICIENCY (Typ.)  92.00% 91.00% 91.00% 90.00% 90.00%
AC CURRENT 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT (Typ. ) COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 41
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type
Standby power consumption <0.5W for B / AB / DA-Type
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 305-333V 222-242V 154-174V 110-130V 79-95V
Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent,
BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB19510.1,GB19510.14; IP65 or IP67;
KC61347-1,KC61347-2-13 approved
DALI STANDARDS Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C ( at load>=60%) ; BS EN/EN61000-3-3; Gb17743,
GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
Others MTBF 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25)
DIMENSION 199*63*35.5 mm (L*W*H)
PACKING 0.85kg; 16pcs/14.2kg/0.72CUFT

Meanwell ELG-100-C Series Features

l  Constant Current mode output

l  Metal housing design with functional Ground

l  Built-in active PFC function

l  No load/Standby power consumption <0.5W

l  lP67 / IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI

l  Typical lifetime>50000 hours

l  5 years warranty

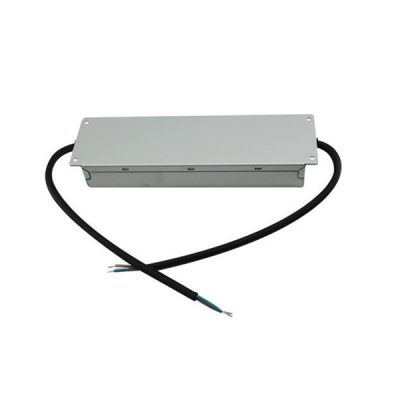

Meanwell ELG-100-C Meanwell ELG-100 price and specs 100W LED AC/DC driver ycict

Meanwell ELG-100-C Series Applications

l  LED street lighting

l  LED harbor lighting

l  LED bay lighting

l  LED greenhouse lighting

l  LED flood lighting

l  Type “HL” for use in Class l, Division 2hazardous (Classified) location

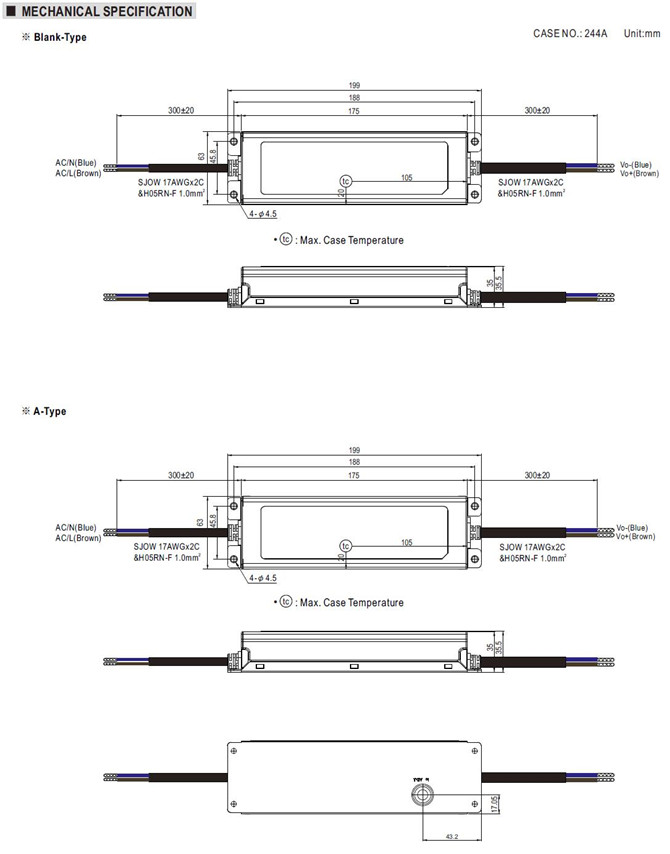

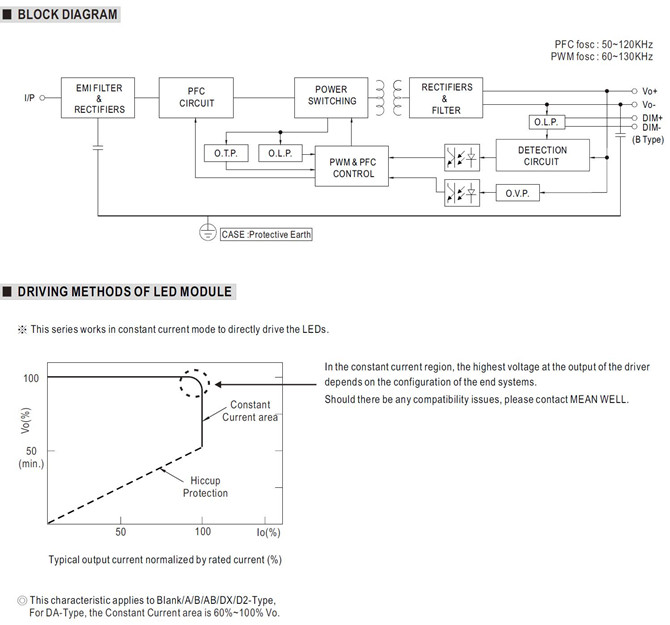

Meanwell ELG-100-C Series Mechanical Diagram

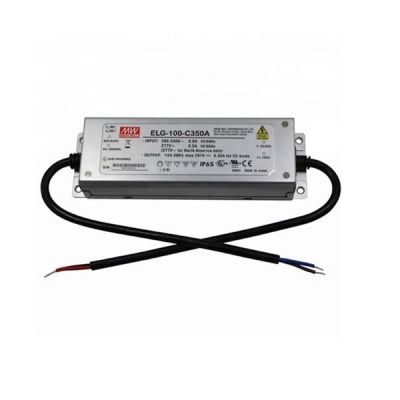

 Meanwell ELG-100-C Meanwell ELG-100 price and specs 100W LED AC/DC driver ycict

Meanwell ELG-100-C Meanwell ELG-100-C price and specs 100W LED AC/DC driver ycict
