Meanwell ELG-100-C350 is a 100W LED AC/DC driver with 350mA200VAC~305VAC100.1W100VAC~180VAC80W143-286V297V175-350mA. The product highlights the constant current mode and high voltage output. Meanwhile, it operates from 100~360VAC and offered with the rated current 350mA. Since the efficiency reaches high up to 92% and the fanless design, ELG-100-C350 is able to work for -40 ℃~+90 ℃ case temperature under free air convection. Additionally, the design of metal housing and IP67/IP 65 ingress protection level permit it to meet with both indoor and outdoor applications. Moreover, the unit is equipped with various function options, such as dimming methodologies. Thanks to its long lifetime, high efficiency and excellent reliability, Meanwell ELG-100-C350 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

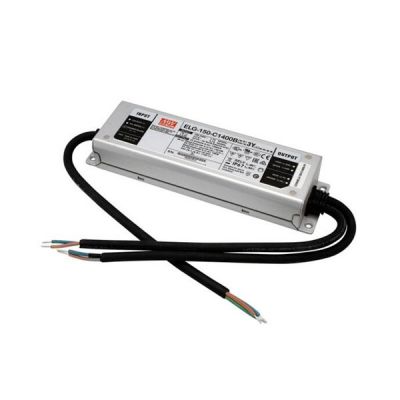

Meanwell ELG-100-C350 Meanwell ELG-100-C series price and specs ac dc led driver ycict

Meanwell ELG-100-C350 Encoding

ELG Series Name
100 Rated Wattage
C350 Rated Output Current ( 350/500/700/1050/1400mA))
A Function Option
***( Input Wiring Type) Blank: 2-wire input for standard model)
3Y: 3-wire input for standard model)
Type IP Level Function Note
Blank IP67 IO  fixed In stock
A IP65 lo adjustable through built-in potentiometer. In stock
IP67 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer &
3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance)
In stock
DA IP67 DALI control technology In stock
Dx IP67 Built-in Smart timer dimming function by user request By request
D2 IP67 Built-in Smart timer dimming and programmable function In stock

Meanwell ELG-100-C350 Specifications

Model ELG-100-C350
Output RATED CURRENT 350mA
RATED POWER 200VAC ~ 305VAC
100.1W
100VAC ~ 180VAC
80W
CONSTANT CURRENT REGION 143-286V
OPEN CIRCUIT VOLTAGE (max) 297V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
175-350mA
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 1000ms/115VAC 500ms/230VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC
EFFICIENCY (Typ.)  92.00%
AC CURRENT 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT (Typ. ) COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 41
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type
Standby power consumption <0.5W for B / AB / DA-Type
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 305-333V
Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent,
BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB19510.1,GB19510.14; IP65 or IP67;
KC61347-1,KC61347-2-13 approved
DALI STANDARDS Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C ( at load>=60%) ; BS EN/EN61000-3-3; Gb17743,
GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
Others MTBF 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25)
DIMENSION 199*63*35.5 mm (L*W*H)
PACKING 0.85kg; 16pcs/14.2kg/0.72CUFT

Meanwell ELG-100-C350 Features

l  Typical lifetime>50000 hours

l  5 years warranty

l  Constant Current mode output

l  Metal housing design with functional Ground

l  Built-in active PFC function

l  No load/Standby power consumption <0.5W

l  lP67 / IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI

Meanwell ELG-100-C350 Features Meanwell ELG-100-C350 price and specs constant current mode and high voltage output ycict

Meanwell ELG-100-C350 Applications

l  LED street lighting

l  LED harbor lighting

l  LED bay lighting

l  LED greenhouse lighting

l  LED flood lighting

l  Type “HL” for use in Class l, Division 2hazardous (Classified) location

Meanwell ELG-100-C350 Mechanical Diagram

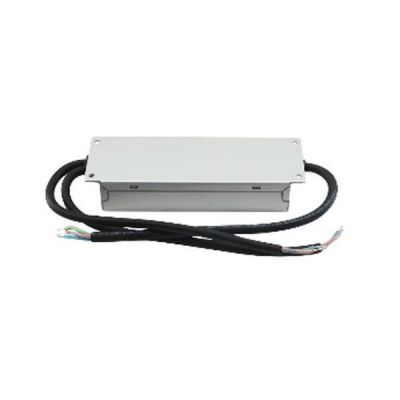

Meanwell ELG-100-C350 Mechanical Diagram Meanwell ELG-100-C350 price and specs constant current mode and high voltage output ycict

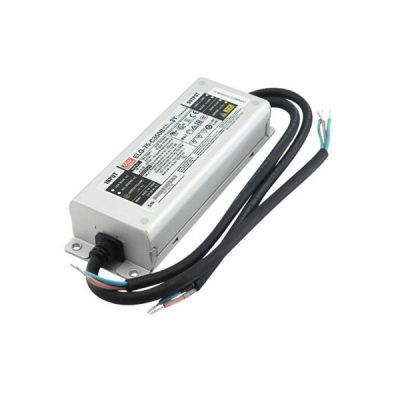

Meanwell ELG-100-C350 Mechanical Diagram Meanwell ELG-100-C350 price and specs led driver ycict
