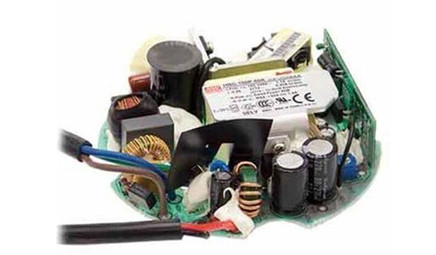

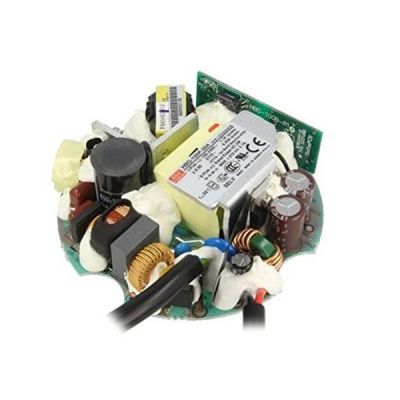

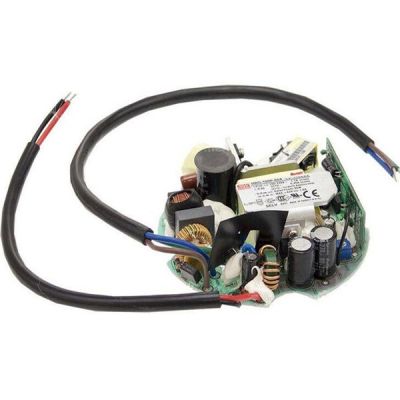

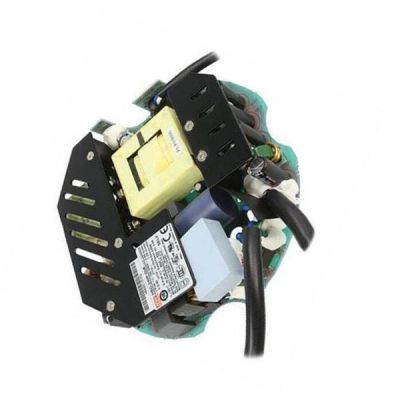

Meanwell HBG-100P Series is a 100W AC/DC PCB type LED driver highlighting the circular shape design. The entire series is able to operate from 90~ 305VAC and offers constant current output models with different rated voltage ranging between 36V and 60V. Since the efficiency reaches high up to 91.5% and the fanless design, HBG-100P could work for -40 ℃~ +45℃ under free air convection. Apart from them, HBG-100P is provided with various function options such as dimming methodology. Considering its longevity, high efficiency and excellent quality, Meanwell HBG-100P serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HGB-100P Series Encoding
| HBG | Series Name |
| 100P | Rated Wattage PCB Type |
| 36 | Rate output voltage ( 36/48/60v) |
| A | Function options |
| Type | Function | Note |
| A | lo adjustable through built-in potentiometer | In stock |
| B | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
| DA | DALI control technology | In stock |
Meanwell HGB-100P Series Model Specifications
| Model | HBG-100P-36 □ | HBG-100P-48 □ | HBG-100P-60 □ | |
| OUTPUT | RATED CURRENT | 2.7A | 2A | 1.6A |
| RATED POWER | 97.2W | 96W | 96W | |
| CONSTANT CURRENT REGION | 21.6-36V | 28.8-48V | 36-60V | |
| OPEN CIRCUIT VOLTAGE(max.) | 37V | 49V | 62V | |
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |||
| 1.62-2.7A | 1.2-2A | 1.0-1.6A | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |||
| CURRENT TOLERANCE | ±5.0% | |||
| SET UP TIME | 2000ms / 115VAC 500ms / 230VAC | |||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>=0.96/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load | |||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) | |||
| EFFICIENCY (Typ.) | 91.00% | 91.00% | 91.50% | |
| AC CURRENT | 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B/DA-Type | |||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||
| Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 41-49V | 54-63V | 65-75V | |
| Shut down o/p voltage, re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recovery | |||
| ENVIRONMENT | WORKING TEMP | Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1 GB19510.14,EAC TP TC 004 approved | ||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load >=60%) ; BS EN/EN61000-3-3, GB17743, GB17625.1,EAC TP TC 020 |
|||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020 | |||
| Others | MTBF | 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;346.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | Refer to mechanical specification | |||
| PACKING | 0.3Kg; 45pcs/14.5Kg/1.60CUFT | |||
Meanwell HGB-100P Series Features
l Constant Current mode output
l Circular shape PCB type design
l Built-in active PFC function
l Function options: output adjustable via potentiometer;3 in 1 dimming; DALI
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell HGB-100P Series Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting
l LED down lighting
l LED mining lighting

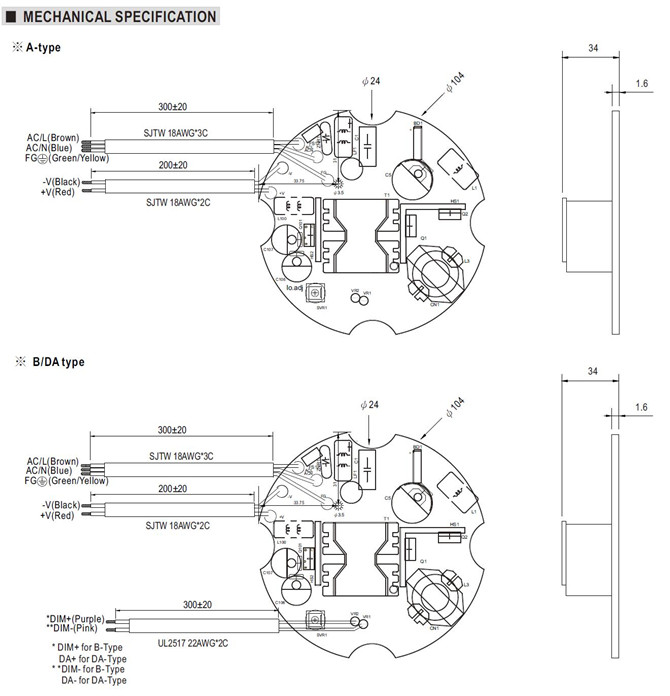

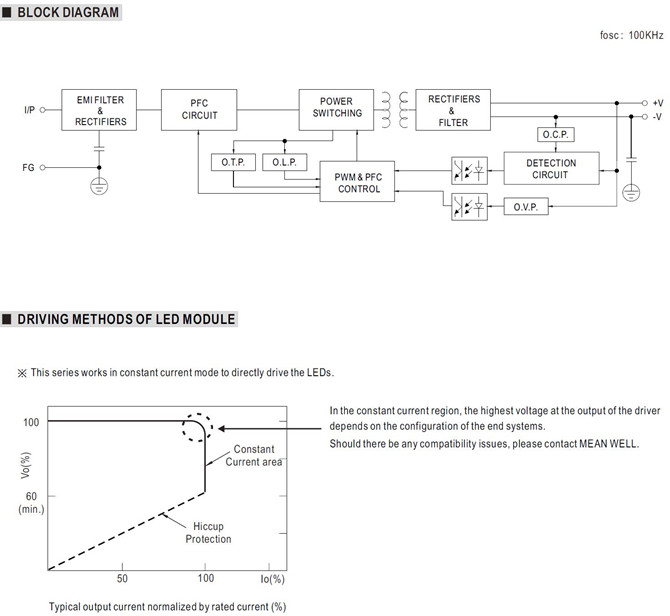

Meanwell HGB-100P Series Mechanical Diagram
