CloudEngine 9860-4C-EI-B
21658.35
Details

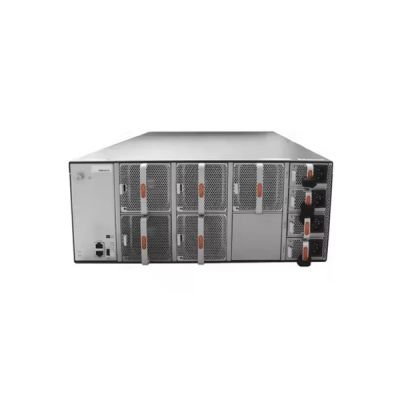

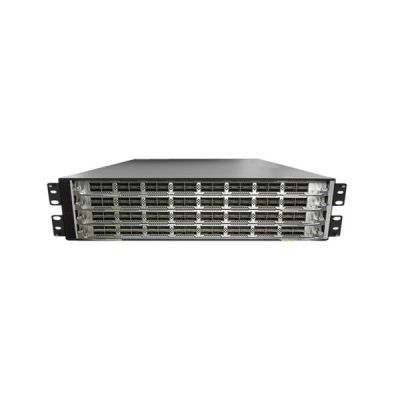

Huawei CloudEngine 9860-4C-EI-B is a nextgeneration Ethernet switch designed for data centers (DCs). The product features high performance, high port density, low latency, and flexible cards. It can function as core or aggregation switches on DCNs to help enterprises and carriers build a DCN platform for cloud computing. They can also be used as aggregation or core switches on campus networks.
Moreover, CloudEngine 9860 series switches support Multichassis Link Aggregation Group (M-LAG) technology to implement link aggregation among multiple devices, improving link reliability from the card level to the device level. Each node in an M-LAG can be upgraded independently. When a node is upgraded, other nodes in the group can still forward services, preventing service interruption.
With leveraging the comprehensive inter-device link aggregation technology, CloudEngine 9860 series switches evolve device coupling from control plane-based stacking to M-LAG and then finally to coupling-free M-LAG Lite. This achieves active-active server access and highly reliable switch upgrade.

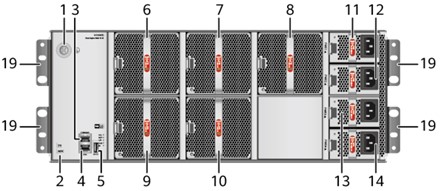

| 1, Ground screw | 2, SN and MAC address label |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, USB 2.0 port | 6, Fan slot 1 |
| 7, Fan slot 2 | 8, Fan slot 3 |
| 9, Fan slot 4 | 10, Fan slot 5 |
| 11, Power supply slot 1 | 12, Power supply slot 2 |
| 13, Power supply slot 3 | 14, Power supply slot 4 |

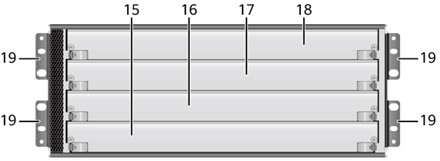

| 15, Card slot 1 | 16, Card slot 2 |
| 17, Card slot 3 | 18, Card slot 4 |
| 19, Mounting brackets |
Huawei CloudEngine 9860-4C-EI-B Specifications
| Item | Description | |
| Part Number | Part Model | Part Description |
| 02352HQC | CE9860-4C-EI | CE9860-4C-EI mainframe (4*subcard slots, without fan and power modules) |
| 02352HQD | CE9860-4C-EI-B | CE9860-4C-EI mainframe (4*subcard slots, 4*AC power modules, 5*fan modules, port-side intake) |
| Physical specifications | Dimensions (H x W x D): 175.0 mm x 442.0 mm x 765.0 mm (4U) (6.9 in. x 17.4 in. x 30.1 in.) | |
| Weight (with four power modules and five fan modules, calculated based on the heaviest model if multiple models are supported): 46.2 kg (101.85 lb) | ||
| Environment parameters | Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | ||
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) | Back-to-front airflow: < 66 dBA | |
| Power specifications | Power source type | AC/High-voltage DC |
| AC power input | Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz | |
| Maximum input voltage range: 90 V AC to 290 V AC, 45 Hz to 65 Hz | ||
| High-voltage DC power input | Rated voltage of 240 V high-voltage DC power input: 240 V DC | |
| Maximum voltage range of 240 V high-voltage DC power input: 190 V DC to 290 V DC | ||
| Rated input current | 1200 W AC&240 V DC power module (PAC1K2S12 series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC) | |
| Chassis power consumption | Maximum power consumption | Configured with four CE98-D32CQ cards: 1627 W (70% of the full fan speed at an ambient temperature of 40°C) |
| Configured with four CE98-D8DQ cards: 1717 W (full fan speed at an ambient temperature of 40°C) | ||
| Typical power consumption | Fully configured with four CE98-D32CQ cards: 1231 W (50% throughput, short-distance QSFP28 optical modules on 64 ports and long-distance QSFP28 optical modules on another 64 ports, two power modules) | |
| Configured with four CE98-D8DQ cards: 1289 W (50% throughput, short-distance QSFPDD optical modules on 32 ports, two power modules) | ||
| Static power consumption | Configured with four CE98-D32CQ cards: 377 W | |
| Configured with four CE98-D8DQ cards: 548 W | ||
| Chassis heat dissipation | Maximum heat dissipation | Configured with four CE98-D32CQ cards: 5553 BTU/hour (70% of the full fan speed at an ambient temperature of 40°C) |
| Configured with four CE98-D8DQ cards: 5861 BTU/hour (full fan speed at an ambient temperature of 40°C) | ||
| Typical heat dissipation | Fully configured with four CE98-D32CQ cards: 4202 BTU/hr (50% throughput, 64-port short-distance QSFP28 optical module and 64-port long-distance QSFP28 optical module, double power modules) | |
| Configured with four CE98-D8DQ cards: 4400 BTU/hr (50% throughput, short-distance QSFPDD optical modules on 32 ports, two power modules) | ||
| Static heat dissipation | Configured with four CE98-D32CQ cards: 1505 BTU/hour | |
| Configured with four CE98-D8DQ cards: 1871 BTU/hour | ||
| Surge protection | PAC1K2S12-B series power module: | |
| AC: 4 kV in common mode and 2.5 kV in differential mode | ||
| DC: 4 kV in common mode and 2 kV in differential mode | ||
| PAC1K2S12-CB series power module: | ||
| AC: 6 kV in common mode and 6 kV in differential mode | ||
| DC: 4 kV in common mode and 2 kV in differential mode | ||
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side. | |
| Reliability and availability | Power module backup | 2+2 backup |
| Fan module backup | Five fan modules, working in 4+1 backup mode when the temperature is below 35°C | |
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 21.91 years | |
| Availability | 0.999993474 | |
| Technical specifications | Processor | 2.2 GHz, 8-thread, four-core |
| DRAM memory | 16 GB | |
| NOR Flash | Two 32 MB flash memories | |
| SSD Flash | 64 GB | |
| Stack | Service port supporting the stacking function | Not supported |
| Certification | Safety standards compliance EMC standards compliance Environmental standards compliance |
|
Huawei CloudEngine 9860-4C-EI-B Features
l CloudEngine 9860 Series support the intelligent lossless (iLossless) algorithm, which can eliminate packet loss caused by traffic congestion on traditional Ethernet networks. Leveraging this algorithm, CloudEngine 9860-4C-EI-A series switches can build a network environment featuring zero packet loss, low latency, and high throughput, which is ideal for RoCEv2 traffic, thereby meeting high performance requirements of RoCEv2 applications.
l CloudEngine 9860 Series support priority-based flow control (PFC) deadlock prevention. They can identify service flows that may cause PFC deadlocks and change queue priorities to prevent PFC deadlocks.
l CloudEngine 9860 Series support Artificial Intelligence Explicit Congestion Notification (AI ECN), which intelligently adjusts the ECN thresholds of lossless queues based on the live-network traffic model, helping to ensure low latency and high throughput at zero packet loss and maximize the performance of loss-sensitive services.
l CloudEngine 9860 Series provide telemetry technology to collect device data in real time and send the data to iMaster NCE-FabricInsight — Huawei's analyzer for DCNs. iMaster NCE -FabricInsight then analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.
l CloudEngine 9860 Series support intelligent traffic analysis to perform in-depth analysis on a specified service flow, obtain data about high-precision performance indicators such as the packet loss rate and latency (nanosecondlevel) of the service flow, and export the analysis results to iMaster NCE-FabricInsight for further display and analysis. This makes it easier for O&M personnel to monitor the network condition and quickly locate network faults.
Huawei CloudEngine 9860-4C-EI-B Ordering Info
| CE9860-4C-EI-A-B | CE9860-4C-EI-A mainframe (4*subcard slots, 4*AC power modules, port-side intake) |
| CE9860-4C-EI-A-B1 | CE9860-4C-EI-A mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card,port-side intake) |
| CE9860-4C-EI-A | CE9860-4C-EI-A mainframe (4*subcard slots, without fan and power modules) |

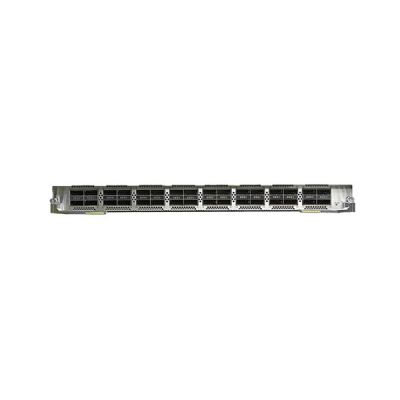

| CE98-D32CQ-A | CE98: 32-port 100GE QSFP28 LPU |

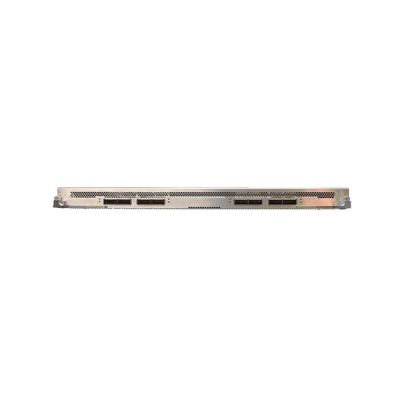

| CE98-D8DQ | CE98: 8-port 400GE QSFPDD LPU |
| Model | Description |
| PAC1K2S12-PB | 1200W AC&240V DC Power Module (Back to Front,Power panel side exhaust) |
| PDC1K2S12-CE | 1200W DC Power Module (Back to |
| Front,Power panel side exhaust) | |
| FAN-180C-B | Fan box(B,FAN panel side exhaust) |
| N1-CE98LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 9800 |
| N1-CE98CFFD- SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 9800-SnS-Year |
| N1-CE98LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 9800 |
| N1-CE98CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine 9800-SnS-Year |
| N1-CE98LIC-CFPM | N1-CloudFabric Premium SW License for CloudEngine 9800 |
| N1-CE98CFPM-SnS1Y | N1-CloudFabric Premium SW License for CloudEngine 9800 -SnS-Year |
| N1-CE98LIC-AIF | N1-CloudEngine 9800 AI Fabric Function |
| N1-CE98AIF-SnS1Y | N1-CloudEngine 9800 AI Fabric Function-SnS-Year |
| N1-CE-F-LIC-DM | N1-CloudEngine Digital Map Function-Fixed |
| N1-CEFDM-SnS1Y | N1-CloudEngine Digital Map Function, Per Fixed device-SnS-Year |
| N1-CE-LIC-AFP1KVM | N1-CloudEngine Network Intelligent Analysis Flow Advantage Per 1000 VM,Electronic |
| N1-CEAFP1KVM-SnS1Y | N1-CloudEngine Network Intelligent Analysis Flow Advantage Per 1000 VM-SnSYear,Electronic |
| N1-CE-F-LIC-MDCA | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package - Fixed |
| N1-CEFMDCA -SnS1Y | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package, Per Fixed device-SnS-Year |
Huawei CloudEngine 9860-4C-EI-B Networking and Applications
More Information
| Brand | Huawei |
|---|
