CloudEngine 6850U-24S2Q-HI
4816.37
Details

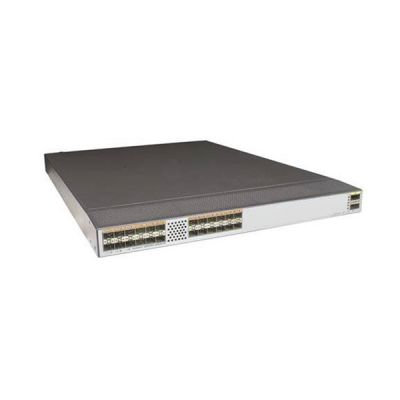

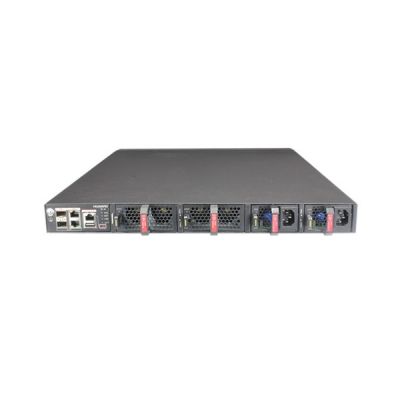

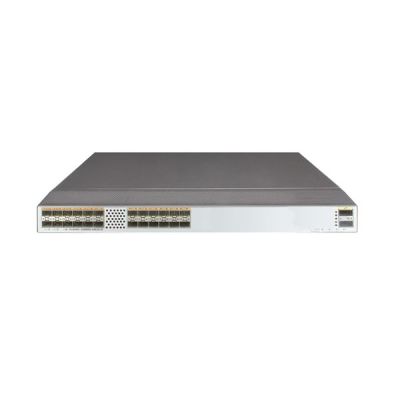

Huawei CloudEngine 6850U-24S2Q-HI is a next-generation 10G Ethernet switch with 24-Port 10GE SFP+, supporting 2/4/8G FC, 2-Port 40GE QSFP+. The product is designed for data centers and high-end campus networks. It provides high-performance, high-density 10GE ports, and low latency. The CE6800 hardware has an advanced architectural design with 40GE uplink ports and the industry's highest density of 10GE access ports. Using Huawei VRP8 software platform, the switches provide extensive data center service features and high stacking capability. Moreover, CE6800 series switches support centralized FCoE/FC gateway deployment, which makes network O&M simpler. Various CE6800 features ensure lossless transmission: Priority-based Flow Control (PFC), Enhanced Transmission Selection (ETS) and Data Center Bridging eXchange (DCBX). These features ensure low latency and zero packet loss for FC storage and high-speed computing services.
CE6800 switches provide high-density 10GE access to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks

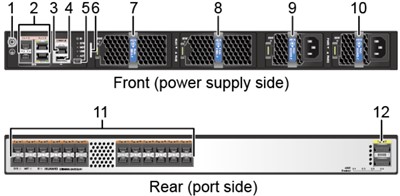

| 1, Ground screw | 2, Two ETH management ports (combo) |
| 3, Console port | 4, USB port |
| 5, Mini USB port | 6, Barcode label |
| 7, Fan slot 1 | 8, Fan slot 2 |
| 9, Power supply slot 1 | 10, Power supply slot 2 |
| 11, Twenty-four 10GE SFP+ Ethernet optical ports | 12, Two 40GE QSFP+ Ethernet optical ports |

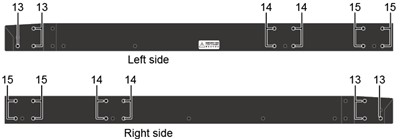

| 13, Three port-side mounting holes for mounting brackets | 14, Four middle mounting holes for mounting brackets |
| 15, Four power-supply-side mounting holes for mounting brackets |
Huawei CloudEngine 6850U-24S2Q-HI Specifications
| Part Number | Part Model | Part Description |
| 02350GTP | CE6850U-HI-F-B0B | CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust) |
| 02350GTQ | CE6850U-HI-B-B0B | CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Intake) |
| 02350GTM | CE6850U-24S2Q-HI-F | CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, 2*FAN Box, Port-side Exhaust, Without Power Module) |
| 02350GTN | CE6850U-24S2Q-HI-B | CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, 2*FAN Box, Port-side Intake, Without Power Module) |
| 02350TJH | CE6850U-24S2Q-HI | CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, Without FAN Box and Power Module) |
| Physical specifications | Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.) | |
| Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 12.3 kg (27.12 lb) | ||
| Environment parameters | Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | ||
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) | Back-to-front airflow: < 52 dBA | |
| Front-to-back airflow: < 52 dBA | ||
| Power specifications | Power source type | AC/DC/high-voltage DC |
| AC power input | Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz | |
| Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz | ||
| DC power input | Rated voltage range: -48 V DC to -60 V DC | |
| Maximum voltage range: -38.4 V DC to -72 V DC | ||
| High-voltage DC power input | Rated voltage of 240 V high-voltage DC power input: 240 V DC | |
| Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC | ||
| Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC. | ||
| Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC | ||
| Rated input current | 600 W AC&240 V DC power module (PAC-600WB series): 8 A (100 V AC to 240 V AC)/4 A (240 V DC) | |
| 600 W high-voltage DC power module (PHD-600WA series): 4 A (240 V DC to 380 V DC) | ||
| 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC) | ||
| Chassis power consumption | Maximum power consumption | 282 W |
| Typical power consumption | 183 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 962 BTU/hr |
| Typical heat dissipation | 624 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules) | |
| Surge protection |
Power module:
|
|
| AC: 4 kV in common mode and 2.5 kV in differential mode | ||
| DC: 4 kV in common mode and 2 kV in differential mode | ||
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability and availability | Power module backup | 1+1 backup |
| Fan module backup | 1+1 backup not supported | |
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 61.53 years | |
| Mean time to repair (MTTR) | 1.78 hours | |
| Availability | 0.999996689 | |
| Technical specifications | Processor | 1.5 GHz, quad-core |
| DRAM Memory | 4 GB | |
| NOR Flash | 16 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | 10GE optical ports and 40GE optical ports |
| Certification | Safety standards compliance | |
| EMC standards compliance | ||
| Environmental standards compliance | ||
Huawei CloudEngine 6850U-24S2Q-HI Features
l CE6800 provides the industry's highest performance in a 1 U TOR. The switch provides forwarding performance of 1,080 Mpps and supports L2/L3 line-speed forwarding.
l CE6800 can work with a mainstream virtualization platform. As the high-performance, hardware gateway of an overlay network (VXLAN), the CE6800 can support more than 16M tenants.
l CE6800 can connect to a cloud platform through an open API to provide unified management of software and hardware networks. This function implements fast service deployment without changing the customer network. It also protects customer investments.
l CE6800 works with Huawei's Agile Controller to permit network policies to be dynamically deployed on the CE6800. Agile Controller also supports online VM migration. Agile Controller delivers network policies through high-speed RADIUS interfaces. Its online VM migration is 10 to 20 times the rate of other industry platforms, enabling large-scale VM migrations. Agile Controller is based on open APIs and is compatible with all major virtualization platforms including VMware.
Huawei CloudEngine 6850U-24S2Q-HI Ordering Info
| CE6850-HI-B00 | CE6850-48S6Q-HI Switch (2*600W AC Power Module, 2*FAN Box, Port Side Exhaust) |
| CE6850-EI-B00 | CE6850-48S4Q-EI Switch (2*350W AC Power Module, 2*FAN Box, Port side exhaust) |
| CE6850-EI-B01 | CE6850-48T4Q-EI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust) |
| CE6810-EI-B00 | CE6810-48S4Q-EI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust) |
| CE6810-LI-B00 | CE6810-48S4Q-LI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust) |
| CE6810-LI-B01 | CE6810-48S-LI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust) |
| CE6810-LI-B10 | CE6810-LI Bundle 10 (CE6810-48S4Q-LI mainframe, 4*QSFP-40G-iSR4, Without Fan and Power Module) |
| CE6810-LI-B11 | CE6810-LI Bundle 11 (CE6810-48S-LI mainframe, 2*QSFP-40G-iSR4, 8*SFP-10G-USR, Without Fan and Power Module) |
| CE6850U-48S6Q-HI | CE6850U-48S6Q-HI Switch (48-Port 10GE SFP+, support 2/4/8G FC, 6-Port 40GE QSFP+, Without Fan and Power Module) |
| CE6850U-24S2Q-HI | CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, Without Fan and Power Module) |
| CE6851-48S6Q-HI | CE6851-48S6Q-HI Switch (48-Port 10GE SFP+, 6-Port 40GE QSFP+, Without Fan and Power Module) |
| CE6850-48T6Q-HI | CE6850-48T 6Q-HI Switch (48-Port 10GE RJ45, 6-Port 40GE QSFP+, Without Fan and Power Module) |
| CE6850-48S6Q-HI | CE6850-48S6Q-HI Switch (48-Port 10GE SFP+, 6-Port 40GE QSFP+, Without Fan and Power Module) |
| CE6850-48S4Q-EI | CE6850-48S4Q-EI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and Power Module) |
| CE6850-48T4Q-EI | CE6850-48T4Q-EI Switch (48-port 10GE RJ45, 4-port 40G QSFP+, Without Fan and Power Module) |
| CE6810-48S4Q-EI | CE6810-48S4Q-EI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and Power Module) |
| CE6810-48S4Q-LI | CE6810-48S4Q-LI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and Power Module) |
| CE6810- | CE6810-32T16S4Q-LI Switch (32-port 10GE RJ45, 16-Port 10GE SFP+, 4-Port 40G |
| 32T16S4Q-LI | QSFP+, Without Fan and Power Module) |
| CE6810-48S-LI | CE6810-48S-LI Switch (48-Port 10GE SFP+, Without Fan and Power Module) |
| CE6810-24S2Q-LI | CE6810-24S2Q-LI Switch (24-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and Power Module) |
| FAN-060A-F | Fan box (F, FAN panel side intake ) |
| FAN-060A-B | Fan box (B, FAN panel side exhaust) |
| FAN-40EA-F | Fan box (EA, Front to Back, FAN panel side intake) |
| FAN-40EA-B | Fan box (EA, Back to Front, FAN panel side exhaust) |
| PAC-600WB-F | 600W AC&240V DC Power Module (Power panel side intake) |
| PAC-600WB-B | 600W AC&240V DC Power Module (Power panel side exhaust) |
| PHD-600WA-F | 600W HVDC Power Module (Power panel side intake) |
| PHD-600WA-B | 600W HVDC Power Module (Power panel side exhaust) |
| PAC-350WA-F | 350W AC Power Module (Front to Back, Power panel side intake) |
| PAC-350WA-B | 350W AC Power Module (Back to Front, Power panel side exhaust) |
| PAC-600WA-F | 600W AC Power Module (Front to Back, Power panel side intake) |
| PAC-600WA-B | 600W AC Power Module (Back to Front, Power panel side exhaust) |
| PDC-350WA-F | 350W DC Power Module (Front to Back, Power panel side intake) |
| PDC-350WA-B | 350W DC Power Module (Back to Front, Power panel side exhaust) |
| CE68-LIC-VXLAN | CloudEngine 6800 VXLAN Function |
| CE68-LIC-FCF16 | CloudEngine 6800 FCF 16 Ports |
| CE68-LIC-FCFAL | CloudEngine 6800 FCF All Ports |
| CE6800-LIC-NPV | CloudEngine 6800 FCOE NPV Function |

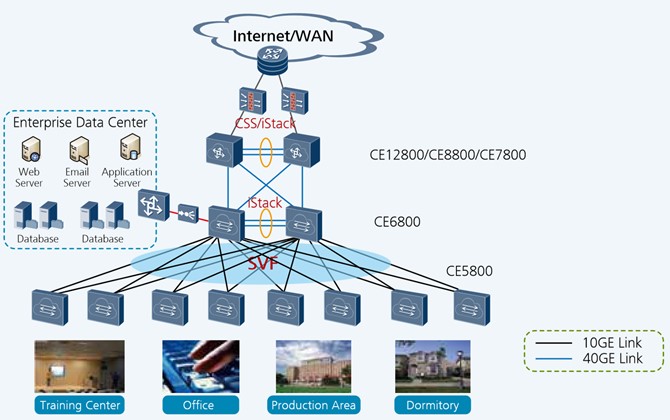

Huawei CloudEngine 6850U-24S2Q-HI Networking and Applications
More Information
| Brand | Huawei |
|---|
