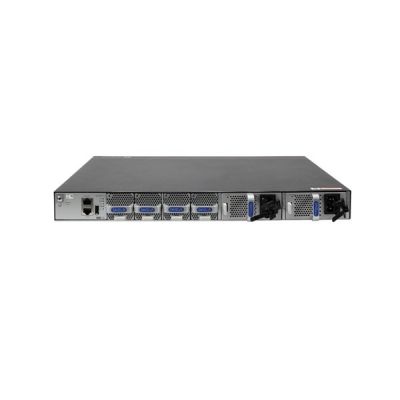

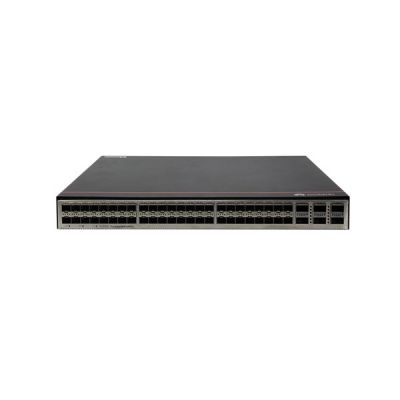

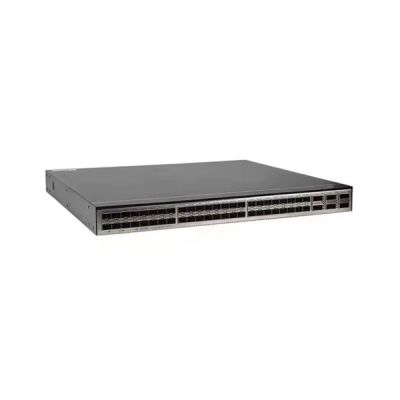

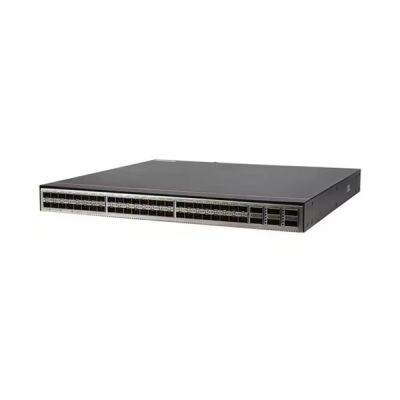

CloudEngine 6820H-48S6CQ
2804.36
Details
Huawei CloudEngine 6820H-48S6CQ is a next-generation 10GE access switch with 48*10G SFP+,6*100G QSFP28. The product provides high performance and high port density on data center networks and high-end campus networks. CloudEngine 6820H series have advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. Using Huawei's new software platform, CloudEngine 6820H series use a flexible airflow design (front-to-back or back-to-front). It can work with CloudEngine 16800 or CloudEngine 12800 series data center core switches to build elastic, virtual, and highquality 40GE/100GE full-mesh networks, meeting requirements of cloud computing data centers.
Moreover, CloudEngine 6820H series provide high-density 10GE access to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also work as core or aggregation switches on campus networks. It supports Huawei IDN One Software (N1 mode for short) licensing mode. The CloudFabric N1 business model combines the NCE controller, analyzer, and CloudEngine switch software for use in a range of common scenarios. This simplifies transactions, provides customers with more functions and value, and protects their software investment with Software License Portability.

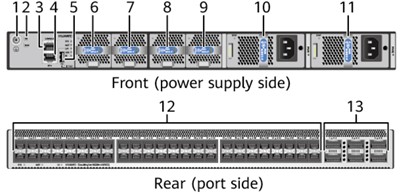

| 1, Ground screw | 2, Equipment serial number (ESN) and MAC address |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, USB port | 6-9, Four Fan slots |
| 10-11, Two Power supply slots | 12, Forty-eight 10GE SFP+ Ethernet optical ports |

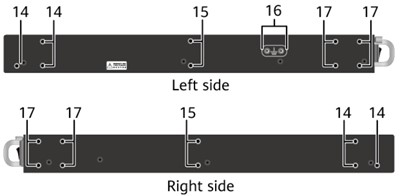

| 13, Six 40GE/100GE QSFP28 Ethernet optical ports | 14, Three port-side mounting holes for mounting brackets |
| 15, Two middle mounting holes for mounting brackets | 16, Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
| 17, Four power-supply-side mounting holes for mounting brackets |
Huawei CloudEngine 6820H-48S6CQ Specifications
| Item | Details |
| Model | CE6820H-48S6CQ |
| Part Number | 02354FTG |
| Description | CE6820H-48S6CQ switch(48*10G SFP+,6*100G QSFP28,without fan and power modules) |
| First supported version | V300R021C00SPC100 |
| Other part numbers | 02354FTK (CE6820H-48S6CQ switch(48*10G SFP+,6*100G QSFP28, 2*AC power modules,4*fan modules,port-side intake)) |
| 02354FTL (CE6820H-48S6CQ switch(48*10G SFP+,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side exhaust)) | |
| Short Name | CE6820H |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) | |
| Weight without packaging [kg (lb)] | 5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 9 kg (19.84 lb), excluding optical modules, power modules, and fan modules |
| Weight with packaging (full configuration) [kg (lb)] | 11.1 kg (24.47 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Chassis height [U] | 1 U |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 2 GB |
| USB | It can be used for log backup and USB-based deployment. |
| This function is reserved. | |
| Power supply mode | AC pluggable |
| DC pluggable | |
| HVDC pluggable | |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ |
| Uplink Service interface | 6 x 100GE QSFP28 |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) |
| 196 W (100% throughput, short-distance optical modules on all ports, dual power modules) | |
| Typical heat dissipation [BTU/hour] | 553 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) |
| 669 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules) | |
| Static power consumption [W] | 102 W |
| Static heat dissipation [BTU/hour] | 348 BTU/hour |
| Maximum power consumption [W] | 282 W |
| Maximum heat dissipation [BTU/hour] | 962 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules |
| Availability | 0.99999618 |
| MTBF [year] | 45.48 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: < 55 dB(A) |
| Back-to-front airflow: < 56 dB(A) | |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: < 71 dB(A) |
| Back-to-front airflow: < 72 dB(A) | |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage temperature [°C (°F)] | -40°C to +70°C (-40°F to +158°F) |
Huawei CloudEngine 6820H-48S6CQ Features
l CloudEngine 6820H series provide up to 48 x 10GE ports, allowing for high-density 10GE server access and smooth evolution.
l CloudEngine 6820H series provide up to 6 x 100GE QSFP28 ports. Each QSFP28 port can also be used as one 40GE QSFP+ port, providing flexibility in networking. The uplink 40GE/100GE ports can be connected to CloudEngine 16800 or CloudEngine 12800 series switches to build a non-blocking network platform.
l CloudEngine 6820H series support multi-chassis link aggregation group (M-LAG), which enables links of multiple switches to aggregate into one to implement device-level link backup. Switches in an M-LAG all work in active state to share traffic and back up each other, enhancing system reliability. Switches in an M-LAG can be upgraded independently. During the upgrade, other switches in the system take over traffic forwarding to ensure uninterrupted services.
l CloudEngine 6820H series support NETCONF. CloudEngine 6820H series support Ansible-based automatic configuration and open-source module release, expanding network functions and simplifying device management and maintenance.
Huawei CloudEngine 6820H-48S6CQ Ordering Info
| CE6820H-48S6CQ | CE6820H-48S6CQ switch(48*10G SFP+,6*100G QSFP28,without fan and power modules) |
| CE6820H-48S6CQ-B | CE6820H-48S6CQ switch(48*10G SFP+,6*100G QSFP28, 2*AC power modules,4*fan modules,port-side intake) |
| CE6820H-48S6CQ-F | CE6820H-48S6CQ switch(48*10G SFP+,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side exhaust) |
| FAN-031A-F | Fan box (F,FAN panel side intake) Applicable CE6820H-48S6CQ |
| FAN-031A-B | Fan box (B,FAN panel side exhaust) Applicable CE6820H-48S6CQ |
| PAC600S12-CF | 600W AC Power Module(Front to Back, Power panel side intake) Applicable CE6820H-48S6CQ |
| PAC600S12-CB | 600W AC Power Module(Back to Front, Power panel side exhaust) Applicable CE6820H-48S6CQ |
| PDC1000S12-DF | 1000W DC Power Module (Front to Back, Power panel side intake) Applicable CE6820H-48S6CQ |
| PDC1000S12-DB | 1000W DC Power Module (Front to Back, Power panel side exhaust) Applicable CE6820H-48S6CQ |
| PHD1K2S12-DB | 1200W HVDC Power Module (Back to Front, Power panel side exhaust) Applicable CE6820H-48S6CQ |
| N1-CE68LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 6800 |
| N1-CE68CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 6800-SnS-1 Year |
| N1-CE68LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 6800 |
| N1-CE68CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine -SnS -1 Year |
| N1-CE68LIC-CFPM | N1-CloudFabric Premium SW License for CloudEngine 6800 |
| N1-CE68CFPM-SnS1Y | N1-CloudFabric Premium SW License for CloudEngine 6800 -SnS-Year |

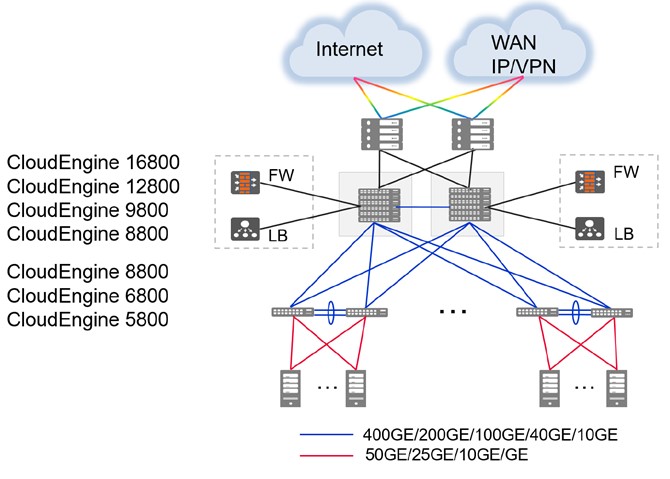

Huawei CloudEngine 6820H-48S6CQ Networking and Applications
More Information
| Brand | Huawei |
|---|
