CloudEngine 6855-48XS8CQ
2769.59
Details
Huawei CloudEngine 6855-48XS8CQ is a next-generation high-performance and high-density 10GE access switch with 48*10GE SFP+, 8*100GE QSFP28. The product is designed for data centers (DCs), and provide 40GE/100GE uplink ports. CloudEngine 6855 series switches have an advanced hardware structure design, and provide high-density 10GE port access and 40GE/100GE uplink ports. It supports extensive DC features and flexible selection of the airflow direction. At the same time, CloudEngine 6855 series switches can work with CloudEngine 16800, 16800-X, or 8800 DC core switches to build an elastic, virtualized, high-quality, and fully-connected 40GE/100GE data center network (DCN), meeting network requirements of DCs in the cloud era.
In addition, CloudEngine 6855 series switches can interconnect with iMaster NCE-Fabric through standard protocols such as NETCONF and SNMP to adapt to networks and implement automatic network management. This helps to provide more efficient and intelligent operation methods, simplifying network management, and reducing the OPEX. The switch can also work as core or aggregation switches on campus networks.

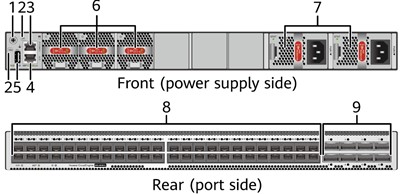

| 1, Ground screw | 2, Equipment serial number (ESN) and MAC address |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, USB port | 6, Three Fan slots |
| 7, Two Power supply slots | 8, Forty-eight 10GE SFP+ Ethernet optical ports |

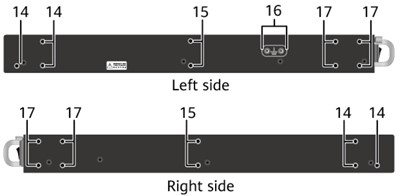

| 9, Eight 40GE/100GE QSFP28 Ethernet optical ports | 10, Three port-side mounting holes for mounting brackets |
| 11, Two middle mounting holes for mounting brackets | 12, Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
| 13, Four power-supply-side mounting holes for mounting brackets |
Huawei CloudEngine 6855-48XS8CQ Specifications
| Item | Details |
| Model | CE6855-48XS8CQ |
| Part Number | 02355KTJ |
| Description | CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, Without Fan and Power Modules) |
| First supported version | V300R023C00 |
| Other part numbers | 02355KTK (CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 3*Fans, Port-side Intake)) |
| 02355KTL (CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 3*Fans, Port-side Exhaust)) | |
| Short Name | CE6855-48XS8CQ |
| Dimensions with packaging (H x W x D) [mm (in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.) | |
| Weight without packaging [kg (lb)] | 6.36 kg (14.02 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.35 kg (18.41 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 10.63 kg (23.43 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 12.62 kg (27.82 lb) |
| Chassis height [U] | 1 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. |
| This function is reserved. | |
| Power supply mode | AC pluggable |
| DC pluggable | |
| HVDC pluggable | |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ |
| Uplink Service interface | 8 x 100GE QSFP28 |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Static power consumption [W] | 124 W |
| Static heat dissipation [BTU/hour] | 423 BTU/hour |
| Maximum power consumption [W] | 187 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) |
| 298 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) | |
| Maximum heat dissipation [BTU/hour] | 638 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) |
| 1017 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) | |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Types of fans | Pluggable |
| Number of fan modules | 3 |
| Redundant fans | The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.999994851 |
| MTBF [year] | 44.34 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: 50.1 dB(A) on average; maximum: 55.9 dB(A) |
| Back-to-front airflow: 48.4 dB(A) on average; maximum: 56.1 dB(A) | |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: 66.4 dB(A) on average; maximum: 73.2 dB(A) |
| Back-to-front airflow: 67.3 dB(A) on average; maximum: 72.5 dB(A) | |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
Huawei CloudEngine 6855-48XS8CQ Features
l CloudEngine 6855 series switch supports up to 48 x 10GE ports, ensuring high-density 10GE server access and smooth evolution.
l CloudEngine 6855 series switch supports up to 8 x40GE/ 100GE high-performance QSFP28 ports. Each 100GE QSFP28 port can be used as one 40GE QSFP+ port or split into four 25GE SFP28 ports or four 10GE SFP+ ports, providing flexibility in networking. The CloudEngine 6855 switch can connect to the CloudEngine 16800-X, 16800, 9800 or 8800 series switches through 40GE/100GEuplinks to build a non-blocking network platform.
l CloudEngine 6855 series switches support Multichassis Link Aggregation Group (M-LAG) to implement link aggregation among multiple devices, improving link reliability from the card level to the device level.
l CloudEngine 6855 series switches can work with the industry's mainstream virtualization platforms. When functioning as high-performance hardware gateways on an overlay network (VXLAN), CloudEngine 6855 series switches can support the operations of a DC with up to 16 million tenants.
l CloudEngine 6855 series switches support insertion of IFIT extension headers into packets, path visualization, and interfacelevel analysis of packet loss, traffic, and latency. This helps to achieve high-precision service-level packet loss detection and facilitate fault demarcation.
l CloudEngine 6855 series switches support Packet Event. When a device discards packets due to reasons such as abnormal forwarding, specified packet discarding rules, a full buffer, or ACL rule deny actions, or when the latency of packets exceeds a specified threshold, the device reports related flow entries to the iMaster NCE-FabricInsight collector.
Huawei CloudEngine 6855-48XS8CQ Ordering Info
| CE6855-48XS8CQ | CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, Without Fan and Power Modules) |
| CE6855-48XS8CQ-B | CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 4*Fans, Portside Intake) |
| CE6855-48XS8CQ-F | CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 4*Fans, Portside Exhaust) |
| FAN-031A-F | Fan box (F,FAN panel side intake) |
| FAN-031A-B | Fan box (B,FAN panel side exhaust) |
| FAN-031B-F | Fan box (F,FAN panel side intake), supporting the electronic label function |
| FAN-031B-B | Fan box (B,FAN panel side exhaust), supporting the electronic label function |
| PAC600S12-PF | 600W AC Power Module (Front to Back, Power panel side intake) |
| PAC600S12-PB | 600W AC Power Module (Back to Front, Power panel side exhaust) |
| PDC1K2S12-PB | 1200W DC Power Module (Front to Back, Power panel side intake) |
| PDC1K2S12-CE | 1200W DC Power Module (Back to Front, Power panel side exhaust) |
| N1-CE68LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 6800 |
| N1-CE68CFFD- SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 6800-SnS-Year |
| N1-CE68LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 6800 |
| N1-CE68CFAD- SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine 6800-SnS-Year |
| N1-CE68LIC-CFPM | N1-CloudFabric Premium SW License for CloudEngine 6800 |
| N1-CE68CFPM- SnS1Y | N1-CloudFabric Premium SW License for CloudEngine 6800-SnS-Year |
| N1-CE68UPG-F-A | N1-CloudEngine 6800 Upgrade SW License:Foundation to Advanced |
| N1-CE68UGFA- SnS1Y | N1-CloudEngine 6800 Upgrade SW License:Foundation to Advanced-SnS-Year |
| N1-CE68UPG-A-P | N1-CloudEngine 6800 Upgrade SW License:Advanced to Premium |
| N1-CE68UGAP- SnS1Y | N1-CloudEngine 6800 Upgrade SW License:Advanced to Premium-SnS-Year |
| N1-CE68LIC-AFRD-2 | N1-CloudEngine 6800 AI Fabric RDMA Application Acceleration Function 2 |
| N1-CE68AFRD2- SnS1Y | N1-CloudEngine 6800 AI Fabric RDMA Application Acceleration Function 2-SnS-Year |
| N1-CE68LIC-SEC | N1-CloudEngine 6800 Security Function |
| N1-CE68SEC-SnS1Y | N1-CloudEngine 6800 Security Function-SnS-Year |
| N1-CE-F-LIC-MDCA | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package - Fixed |
| N1-CEFMDCA - SnS1Y | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package, Per Fixed device-SnS-Year |
| N1-CE-F-LIC-DM | N1-CloudEngine Digital Map Basic Function-Fixed |
| N1-CEFDM-SnS1Y | N1-CloudEngine Digital Map Function |
| N1-CE-LIC-AFP100VM | N1-CloudEngine Specified Flow Analysis Value-added Package Per 100 VM |
| N1-CEAFP100VM-SnS1Y | N1-CloudEngine Specified Flow Analysis Value-added Package Per 100 VM-SnS-Year |

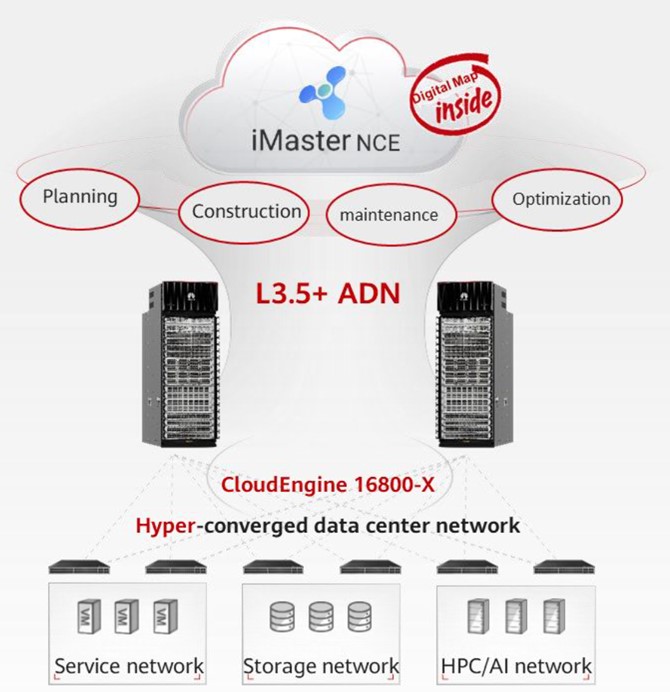

Huawei CloudEngine 6855-48XS8CQ Networking and Applications
