CloudEngine 6820-48S6CQ-A
2968.46
Details

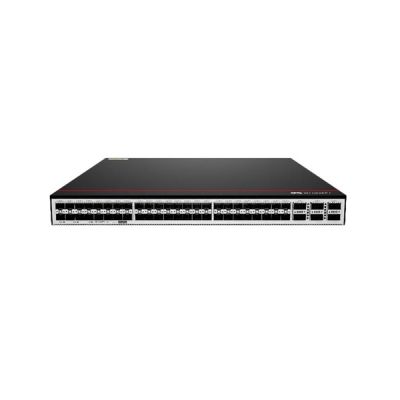

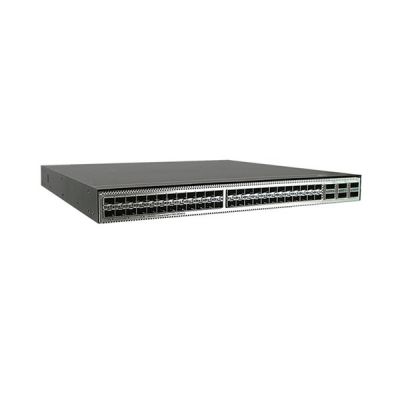

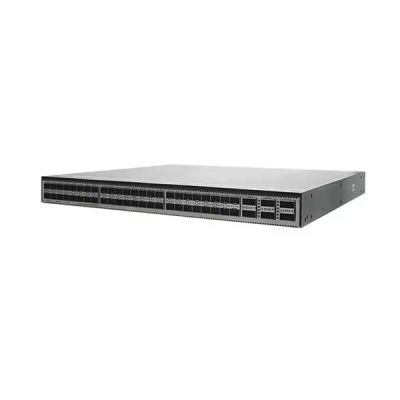

Huawei CloudEngine 6820-48S6CQ-A is a next-generation 10GE access switch with 48*10G SFP+, 6*100G QSFP28. The product offers high performance and high port density for data center networks. It has advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. Moreover, CloudEngine 6820-A series support a rang of DC features and use a flexible airflow design (front-toback or back-to-front). It can work with CloudEngine 16800 series data center core switches to build elastic, virtual, and highquality 40GE/100GE full-mesh networks, meeting requirements of cloud computing data centers.
CloudEngine 6820-A series provide high-density 10GE access to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also work as core or aggregation switches on campus networks.
Furthermore, CloudEngine 6820-A series switches provide telemetry technology to collect device data in real time and send the data to Huawei data center network analyzer iMaster NCE-FabricInsight. The iMaster NCE-FabricInsight analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.

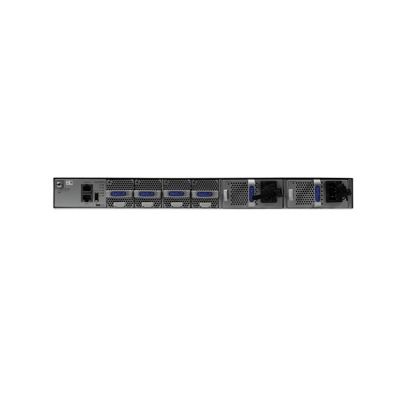

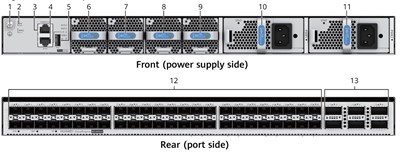

| 1, Ground screw | 2, Equipment serial number (ESN) and MAC address |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, USB port | 6-9, Four Fan slots |
| 10-11, Two Power supply slots | 12, Forty-eight 10GE SFP+ Ethernet optical ports |

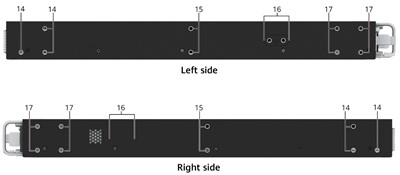

| 13, Six 40GE/100GE QSFP28 Ethernet optical ports | 14, Three port-side mounting holes for mounting brackets |
| 15, Two middle mounting holes for mounting brackets | 16, Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
| 17, Four power-supply-side mounting holes for mounting brackets |
Huawei CloudEngine 6820-48S6CQ-A Specifications
| Item | Details |
| Model | CE6820-48S6CQ-A |
| Part Number | 02356BBV |
| Description | CE6820-48S6CQ-A switch(48*10G SFP+,6*100G QSFP28,without fan and power modules) |
| First supported version | V200R024C00 |
| Other part numbers | 02356BBX (CE6820-48S6CQ-A switch, 48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake) |
| 02356BBY (CE6820-48S6CQ-A switch, 48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) | |
| Short Name | CE6820 |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) | |
| Weight without packaging [kg (lb)] | 5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 9 kg (19.84 lb) (excluding optical modules, power modules, and fan modules) |
| Weight with packaging (full configuration) [kg (lb)] | 11.1 kg (24.47 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Chassis height [U] | 1 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 2 GB |
| USB | Supported |
| Power supply mode | DC pluggable |
| AC pluggable | |
| HVDC pluggable | |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ (Note: 1. 10GE interfaces are compatible with GE; 2. The interfaces do not support 10GE LRM/80KM linear optical modules) |
| Uplink Service interface | 6 x 100GE QSFP28 |
| Service port supporting the stack function | 10GE and 100GE optical ports |
| Typical power consumption [W] | 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) |
| 196 W (100% throughput, short-distance optical modules on all ports, dual power modules) | |
| Typical heat dissipation [BTU/hour] | 553 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) |
| 669 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules) | |
| Static power consumption [W] | 102 W |
| Static heat dissipation [BTU/hour] | 348 BTU/hour |
| Maximum power consumption [W] | 282 W |
| Maximum heat dissipation [BTU/hour] | 962 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Number of fan modules | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules |
| Availability | 0.99999618 |
| MTBF [year] | 45.48 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: < 55 dB(A) |
| Back-to-front airflow: < 56 dB(A) | |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: < 71 dB(A) |
| Back-to-front airflow: < 72 dB(A) | |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
Huawei CloudEngine 6820-48S6CQ-A Features
l CloudEngine 6820-A series switches provide up to 48 x 10GE ports, allowing for high-density GE/10GE server access and smooth evolution.
l CloudEngine 6820-A series switches provide up to 6 x 100GE QSFP28 ports. Each 100GE QSFP28 port is backward compatible with 40GE QSFP+ ports, providing flexibility in networking. The uplink 40GE/100GE ports can be connected to CloudEngine 16800 or CloudEngine 16800-X series switches to build a non-blocking network platform.
l CloudEngine 6820-A series switches have innovative energy-saving chips and can measure system power consumption in real time. The fan speed can be adjusted dynamically based on system consumption. These energy-saving technologies reduce O&M costs and contribute to a greener DC.
l CloudEngine 6820-A series switches use the OPS module embedded in the VRP8 software platform to provide programmability on the control plane. Users or third-party developers can use the open APIs to develop and deploy dedicated network management policies, implementing fast expansion of service functions, automatic service deployment, and intelligent device management. In this way, OPS realizes automatic O&M, reducing management costs.
Huawei CloudEngine 6820-48S6CQ-A Ordering Info
| CE6820-48S6CQ-A | CE6820-48S6CQ-A switch(48*10G SFP+,6*100G QSFP28,without fan and power modules) |
| CE6820-48S6CQ-A-B | CE6820-48S6CQ-A-B,CE6820-48S6CQ-A switch(48*10G SFP+,6*100G QSFP28, 2*AC power modules,4*fan modules,port-side intake) |
| CE6820-48S6CQ-A-F | CE6820-48S6CQ-A-F,CE6820-48S6CQ-A switch(48*10G SFP+,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side exhaust) |
| FAN-031A-F | Fan box (F,FAN panel side intake) |
| FAN-031A-B | Fan box (B,FAN panel side exhaust) |
| PAC600S12-EB | 600W AC Power Module(Back to Front, Power panel side exhaust) |
| PDC1000S12-DF | 1000W DC Power Module (Front to Back,Power panel side intake) |
| N1-CE68LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 6800 |
| N1-CE68CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 6800-SnS-1 Year |
| N1-CE68LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 6800 |
| N1-CE68CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine -SnS -1 Year |
| N1-CE68LIC-CFPM | N1-CloudFabric Premium SW License for CloudEngine 6800 |
| N1-CE68CFPM-SnS1Y | N1-CloudFabric Premium SW License for CloudEngine 6800 -SnS-Year |

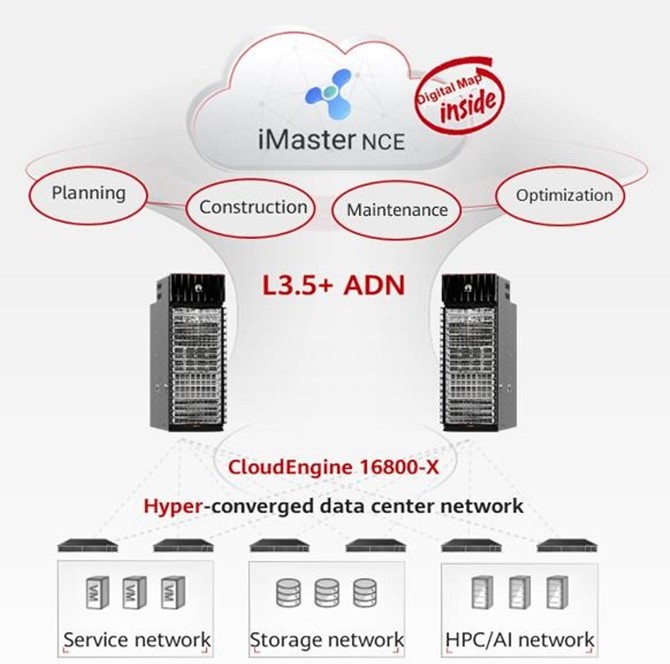

Huawei CloudEngine 6820-48S6CQ-A Networking and Applications
