ADS-15512
50.46
Details

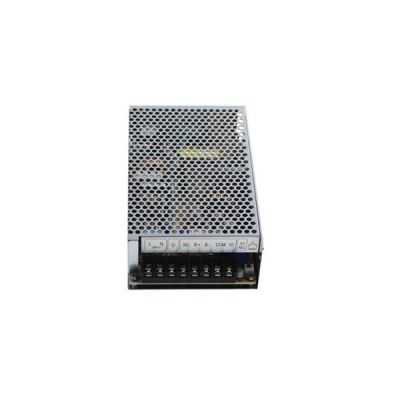

Meanwell ADS-15512 is 155W Single Output 5V, 3A DC-DC Converter with 5V, 3A DC-DC Converter with CH1CH212V5V11.5A3A0-12.5A0-3A153W150mVp-p100mVp-pCH1:10.8~13.2V. The product can be used as an integrated power supply and battery charger to charge rechargeable batteries while powering electronic devices. When the main power fails, the device will switch to an external battery, which will continue to power the electronics until the main power is reapplied or the battery is depleted. In addition, ADS-15512 is fixed switching frequency at 45KHz and Universal AC input/ Full range. Moreover, the item is equipped with various protection functions such as Short circuit, Overload and Over voltage. Due to its high reliability, excellent quality and long life, Meanwell ADS-15512 is suitable for safety industrial or battery backup systems.
Meanwell ADS-15512 Specifications
| Model | ADS-15512 | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 12V | 5V | |
| RATED CURRENT | 11.5A | 3A | |
| CURRENT RANGE | 0-12.5A | 0-3A | |
| RATED POWER | 153W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:10.8 ~ 13.2V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±3.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±2.0% | |
| SETUP, RISE TIME | 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 24ms/230VAC 20ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 77.00% | ||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 23A/115VAC 45A/230VAC | ||
| LEAKAGE CURRENT | <1mA / 240VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |
| Protection type : Constant current limiting, recovers automatically after fault condition is reoved | |||
| OVER VOLTAGE | CH1:13.8 ~ 16.2V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 2235.6K hrs min. Telcordia SR-332 (Bellcore) ; 252.1K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 199*110*50mm (L*W*H) | ||
| PACKING | 1Kg; 16pcs/16Kg/0.95CUFT | ||
Meanwell ADS-15512 Features
l 2 years warranty
l Universal AC input/ Full range
l Built-in active PFC function
l Cooling by free air convection
l 100% full load burn-in test
l Protections: Short circuit/Overload/Over voltage
l Fixed switching frequency at PFC 67KHz, PWM 134KHz
Meanwell ADS-15512 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
