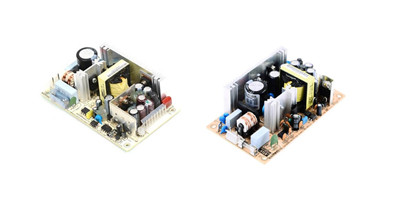

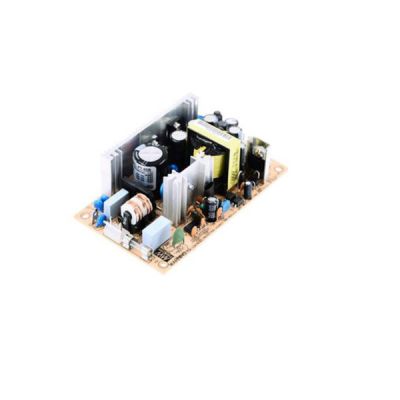

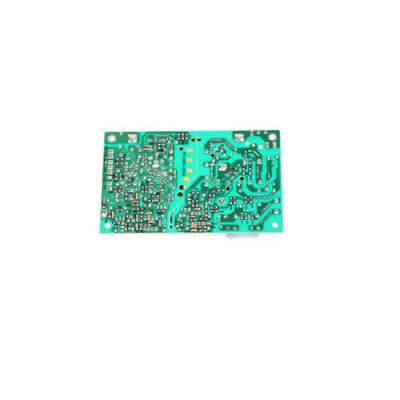

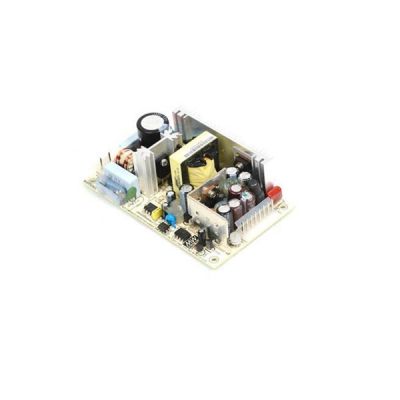

Meanwell 65W Triple Output with 3.3V output

- +
Availability:In stock
SKU Meanwell PT-6503
Brand Meanwell
Details

Meanwell PT-6503 is 65W Triple Output power supply with 3.3V output. The product is equipped with Universal AC input/Full range and Fixed switching frequency at 65KHz. At the same time, it allows universal input voltage range of 90~264V AC. Furthermore, the working efficiency reaches up to 72% and operates from -10 ℃through 60 ℃ under free air convection. Apart from them, PT-6503 provides the various protections functions such as Short circuit, Overload and Over voltage. Besides them, the unit passes 100% full load burn-in test and the extremely low leakage current, this permits to satisfy the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its high efficiency, good quality and long life, Meanwell PT-6503 serves as a high price-to-performance power supply solution for various industrial applications in critical working conditions.

Meanwell PT-6503 Specifications

Meanwell PT-6503 Specifications

Model PT-6503
OUTPUT OUTPUT NUMBER CH1 CH2 CH3
DC VOLTAGE 3.3V 5V 12V
RATED CURRENT 6A 6A 1A
CURRENT RANGE 0-7A 0.2-10A 0-1.2A
RATED POWER Total power max. 61.8W(CH1+CH2 max. 54W)
RIPPLE & NOISE (max.) 50mVp-p 50mVp-p 100mVp-p
VOLTAGE ADJ. RANGE CH1: 3 ~ 3.6V
VOLTAGE TOL ERANCE  ±3.0% +4.0%-2.0% ±8.0%
LINE REGULATION ±1.0% ±1.0% ±2.0%
LOAD REGUL .ATION ±3.0% ±3.0% ±8.0%
SETUP, RISE TIME 800ms, 50ms at full load
HOLD UP TIME (Typ.) 60ms at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 72.00%
AC CURRENT (Typ.) 1.8A/115VAC 0.9A/230VAC
INRUSH CURRENT(Typ.) COLD START 20A/115V 40A/230V
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 120 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V on +5V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -10 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) on +5V output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 222Khrs min. MIL-HDBK-217F (25)
DIMENSION 127*76*42mm (L*W*H)
PACKING 0.28Kg; 54pcs/16.2Kg/1.28CUFT

Meanwell PT-6503 Features

l   Universal AC input/ Full range

l   Protections: Short circuit/Overload/Over voltage

l   Cooling by free air convection

l   100% full load burn-in test

l   Fixed switching frequency at 65KHz

l  2 years warranty

Meanwell PT-6503

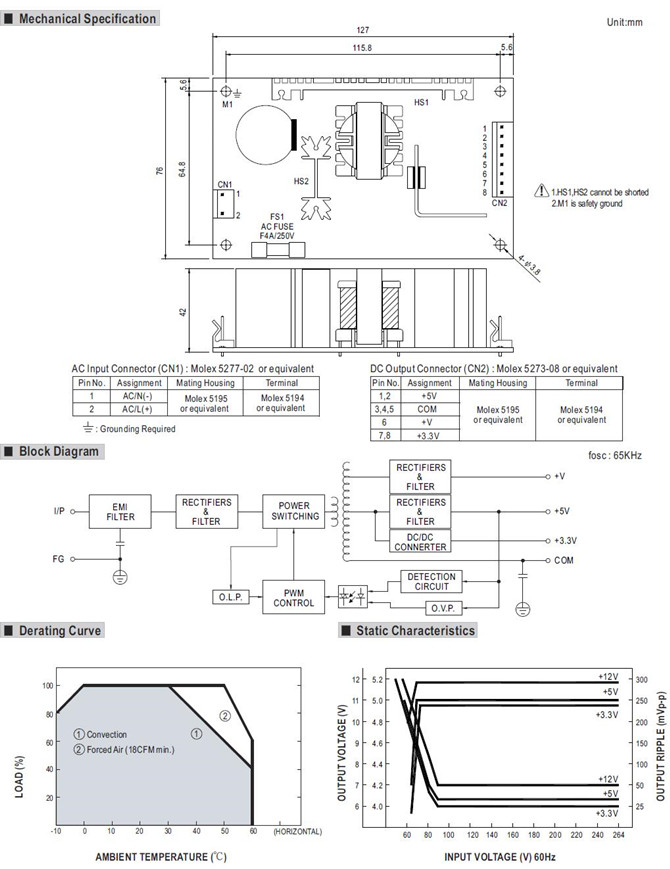

Meanwell PT-6503 Mechanical Diagram
