ADD-155
50.36
Details

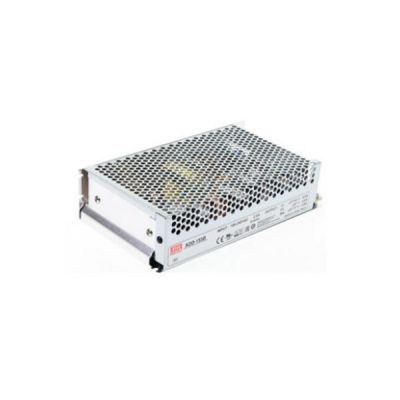

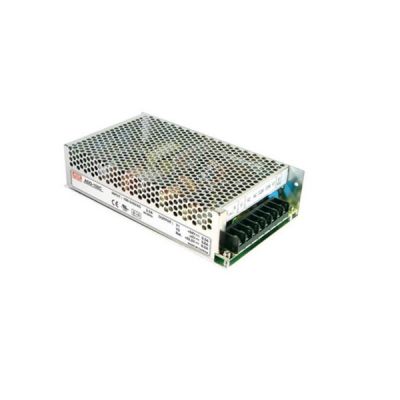

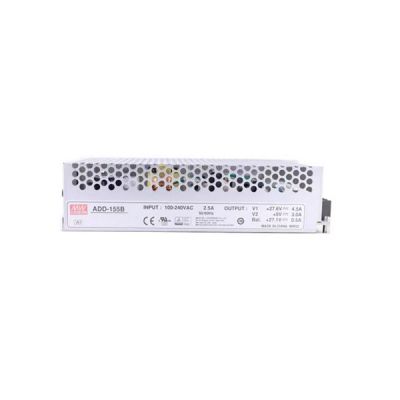

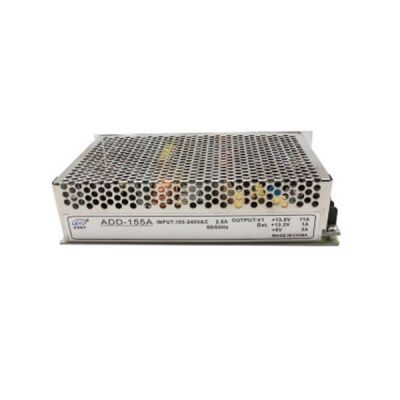

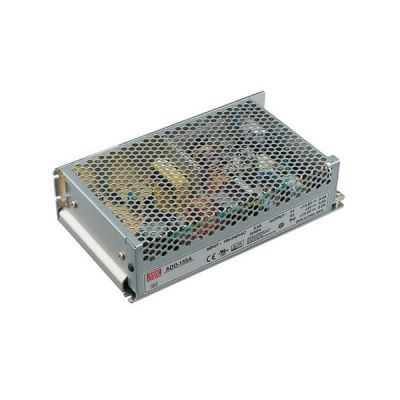

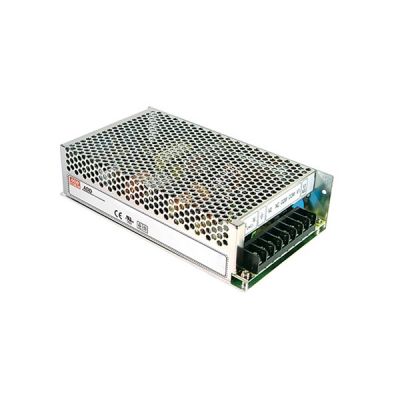

Meanwell ADD-155 Series is 155W Dual Output with Battery Charger (UPS Function). The entire series is designed for uninterrupted DC power supply (UPS), In addition to the main power supply circuit, ADD-155 Series also provides a floating charge output. After connecting the battery, the load uses AC power supply when there is power supply, and the charging circuit floats the battery. And it automatically switches to battery power after electricity. Meanwell AD series is a classic metal mesh shell model. Except for providing one battery voltage output, ADS Series also offers one 5V output; AD series not only provides one battery voltage power supply output, but also one charging output. ADD-155 series supplies both power supply output and charging output. output and 5V output. Considering its high reliability, excellent reliability and longevity, Meanwell ADD-155 series is widely used in emergency lighting, security monitoring and alarm systems.
Meanwell ADD-155 Series Model Specifications
| Model | ADD-155A | ADD-155B | ADD-155C | |||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 13.8V | 5V | 13.3V | 27.6V | 5V | 27.1V | 54V | 5V | 53.5V | |
| RATED CURRENT | 9.5A | 3A | 0.5A | 4.5A | 3A | 0.5A | 2.3A | 3A | 0.2A | |
| CURRENT RANGE | 0-10.5A | 0-3A | ----- | 0-5A | 0-3A | ---- | 0-2.5A | 0-3A | ------ | |
| RATED POWER | 152.75W | 152.75W | 149.9W | |||||||
| RIPPLE & NOISE (max.) | 150mVp-p | 100mVp-p | ---- | 200mVp-p | 100mVp-p | ---- | 240mVp-p | 100mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1: 12 ~ 14.5V | CH1: 24 ~ 29V | CH1: 48 ~ 58V | |||||||
| VOLTAGE TOL ERANCE | ±2.0% | ±3.0% | ---- | ±1.0% | ±3.0% | ----- | ±1.0% | ±5.0% | ----- | |
| LINE REGULATION | ±1.0% | ±0.5% | ---- | ±1.0% | ±0.5% | ---- | ±1.0% | ±0.5% | ---- | |
| LOAD REGUL .ATION | ±1.0% | ±2.0% | ---- | ±1.0% | ±2.0% | ---- | ±1.0% | ±2.0% | ---- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 80ms/230VAC 16ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR (Typ.) | PF>0.92 at full load | |||||||||
| EFFICIENCY (Typ.) | 78.00% | 81.00% | 81.00% | |||||||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 23A/115VAC 45A/230VAC | |||||||||
| LEAKAGE CURRENT | <1mA / 240VAC | |||||||||
| PROTECTION | OVERL OAD | CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power | ||||||||
| Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse | ||||||||||
| OVER VOLTAGE | CH1:15.87 ~ 18.63V | CH1:31.74 ~ 37.26V | CH1:62.1 ~ 72.9V | |||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| BATTERY LOW | 10V±0.8V | 19.5V(+1.5V,-1V ) | 39V±2V | |||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | |||||||||
| OTHERS | MTBF | 1744.5K hrs min. Telcordia SR-332 (Bellcore) ; 221.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 199*110*50mm (L*W*H) | |||||||||
| PACKING | 1Kg; 16pcs/16Kg/0.95CUFT | |||||||||
Meanwell ADD-155 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l Protections: Short circuit/Overload/Over voltage
l Battery low/battery polarity protections
l Cooling by free air convection
l 100% full load burn-in test
l Fixed switching frequency at PFC 67KHz, PWM 134KHz
l 2 years warranty
Meanwell ADD-155 Series Applications
