ADD-155B
51.24
Details

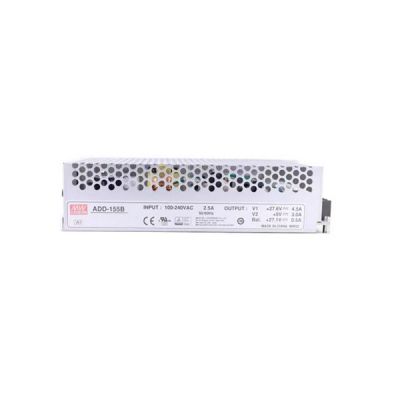

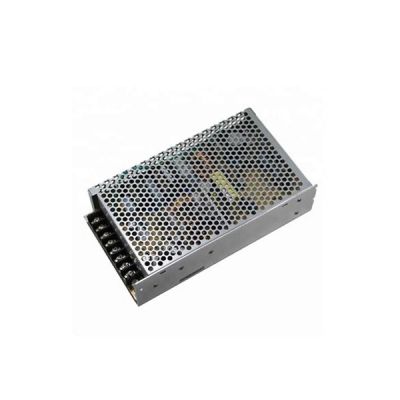

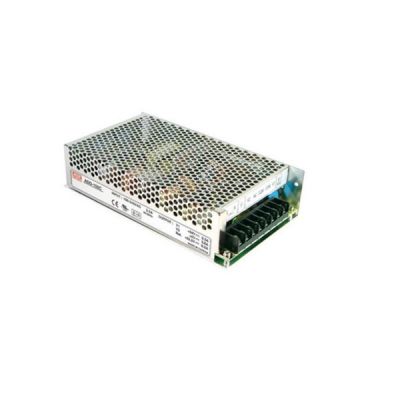

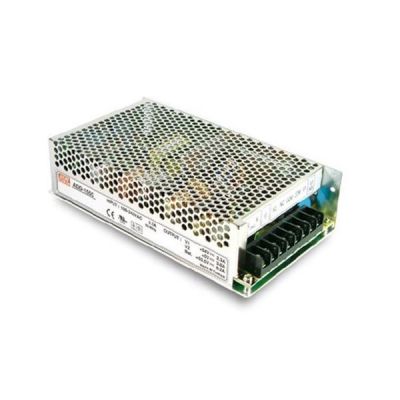

Meanwell ADD-155B is 155W Dual Output Power Supply with Battery Charger (UPS Function) and CH1CH2CH327.6V5V27.1V4.5A3A0.5A0-5A0-3A152.75W200mVp-p100mVp-pCH1:24~29V. The item is designed for uninterrupted DC power supply (UPS), In addition to the main power supply circuit, ADD-155B also offers a floating charge output. After connecting the battery, the load uses AC power supply when there is power supply, and the charging circuit floats the battery. And it automatically switches to battery power after electricity. Meanwell AD series is a classic metal mesh shell model. Except for one battery voltage output, ADS Series also offers one 5V output; AD series not only provides one battery voltage power supply output, but also one charging output. Meanwell ADD-155B provides both power supply output and charging output. output and 5V output. Thanks to its high reliability, excellent reliability and longevity, Meanwell ADD-155B is widely used in emergency lighting, security monitoring and alarm systems.
Meanwell ADD-155B Specifications
| Model | ADD-155B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 27.6V | 5V | 27.1V | |
| RATED CURRENT | 4.5A | 3A | 0.5A | |
| CURRENT RANGE | 0-5A | 0-3A | ---- | |
| RATED POWER | 152.75W | |||
| RIPPLE & NOISE (max.) | 200mVp-p | 100mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1: 24 ~ 29V | |||
| VOLTAGE TOL ERANCE | ±1.0% | ±3.0% | ----- | |
| LINE REGULATION | ±1.0% | ±0.5% | ---- | |
| LOAD REGUL .ATION | ±1.0% | ±2.0% | ---- | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 80ms/230VAC 16ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | PF>0.92 at full load | |||
| EFFICIENCY (Typ.) | 81.00% | |||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 23A/115VAC 45A/230VAC | |||
| LEAKAGE CURRENT | <1mA / 240VAC | |||
| PROTECTION | OVERL OAD | CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power | ||
| Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse | ||||
| OVER VOLTAGE | CH1:31.74 ~ 37.26V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| BATTERY LOW | 19.5V(+1.5V,-1V ) | |||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 1744.5K hrs min. Telcordia SR-332 (Bellcore) ; 221.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 199*110*50mm (L*W*H) | |||
| PACKING | 1Kg; 16pcs/16Kg/0.95CUFT | |||
Meanwell ADD-155B Features
l 2 years warranty
l 100% full load burn-in test
l Universal AC input/ Full range
l Built-in active PFC function
l Protections: Short circuit/Overload/Over voltage
l Battery low/battery polarity protections
l Cooling by free air convection
l Fixed switching frequency at PFC 67KHz, PWM 134KHz
Meanwell ADD-155B Applications
