ADD-155A
50.36

ADD-155A

$50.36

Meanwell 155W Dual Output with Battery Charger (UPS Function) and CH1CH2CH313.8V5V13.3V9.5A3A0.5A0-10.5A0-3A152.75W150mVp-p100mVp-pCH1:12~14.5V±2.0%±3.0%±1.0%±0.5%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell ADD-155A
Brand Meanwell
Details

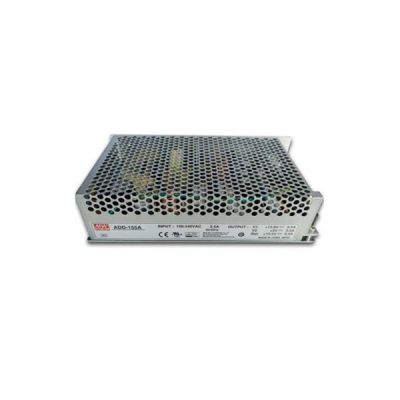

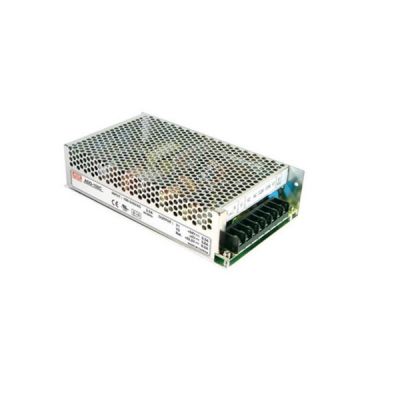

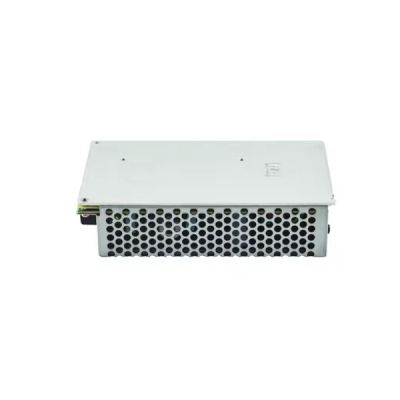

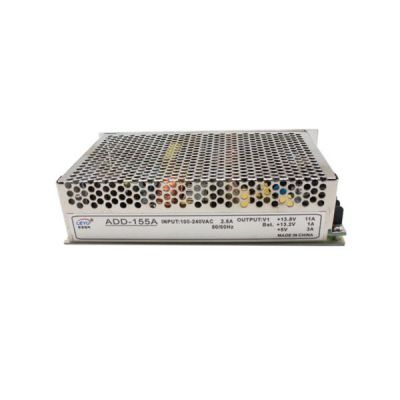

Meanwell ADD-155A is 155W Dual Output Power Supply with Battery Charger (UPS Function) and CH1CH2CH313.8V5V13.3V9.5A3A0.5A0-10.5A0-3A152.75W150mVp-p100mVp-pCH1:12~14.5V. The product is designed for uninterrupted DC power supply (UPS), Apart from the main power supply circuit, ADD-155A also provides a floating charge output. After connecting the battery, the load uses AC power supply when there is power supply, and the charging circuit floats the battery. And it automatically switches to battery power after electricity. Meanwell AD series is a classic metal mesh shell model. Except for one battery voltage output, ADS Series also offers one 5V output; AD series not only provides one battery voltage power supply output, but also one charging output. ADD-155A offers both power supply output and charging output. output and 5V output. Due to its high reliability, excellent reliability and longevity, Meanwell ADD-155A is widely used in emergency lighting, security monitoring and alarm systems.

Meanwell ADD-155A Specifications

Meanwell ADD-155A Specifications

Model ADD-155A
OUTPUT OUTPUT NUMBER CH1 CH2 CH3
DC VOLTAGE 13.8V 5V 13.3V
RATED CURRENT 9.5A 3A 0.5A
CURRENT RANGE 0-10.5A 0-3A -----
RATED POWER 152.75W
RIPPLE & NOISE (max.) 150mVp-p 100mVp-p ----
VOLTAGE ADJ. RANGE CH1: 12 ~ 14.5V
VOLTAGE TOL ERANCE  ±2.0% ±3.0% ----
LINE REGULATION ±1.0% ±0.5% ----
LOAD REGUL .ATION ±1.0% ±2.0% ----
SETUP, RISE TIME 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 80ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.)  PF>0.92 at full load
EFFICIENCY (Typ.) 78.00%
AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 23A/115VAC 45A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power
Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE CH1:15.87 ~ 18.63V
Protection type : Shut down o/p voltage, re-power on to recover
BATTERY LOW 10V±0.8V
ENVIRONMENT WORKING TEMP. -10 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) ON CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
OTHERS MTBF 1744.5K hrs min. Telcordia SR-332 (Bellcore) ; 221.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*110*50mm (L*W*H)
PACKING 1Kg; 16pcs/16Kg/0.95CUFT

Meanwell ADD-155A Features

l  2 years warranty

l  Universal AC input/ Full range

l  Built-in active PFC function

l  Protections: Short circuit/Overload/Over voltage

l  Battery low/battery polarity protections

l  Cooling by free air convection

l  100% full load burn-in test

l  Fixed switching frequency at PFC 67KHz, PWM 134KHz

Meanwell ADD-155A Features

Meanwell ADD-155A Applications

Meanwell ADD-155A Applications
