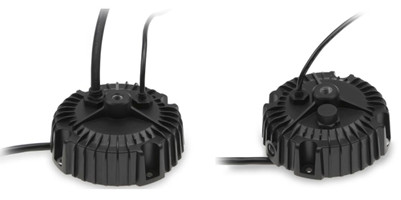

Meanwell XBG-100 Series is 100W AC/DC LED driver highlighting constant power mode. The entire series operates from 90~305 VAC, and offered with different rated current ranging between 1 750mA and 2780mA. Since the efficiency reaches high up to 92% based on fanless design, XBG-100 is able to work for -40℃~+85℃ case temperature under free air convection. In addition, the metal housing design and IP67 ingress protection level permit to fit both indoor and outdoor applications. The innovative environment- adaptive capability permits to reliably light on the LEDs for all kinds of application environments. What’s more, XBG-100 series complies with the latest version of IEC61347/1EC60598-1and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation. Considering its long lifetime, high efficiency and excellent reliability, Meanwell XBG-100 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XBG-100 Series Encoding
| XBG | Series Name |
| 100 | Rated Wattage |
| □ | Functions options |
| □ | AC cable option: C AC input with connector |
| AC cable option: Blank AC input with fixed cable | |
| A | IP67 constant power adjustable via built-in potentiometer |
| AB | IP67 constant power adjustable via built-in potentiometer +3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistor) |
Meanwell XBG-100 Series Model Specifications
| Model | XBG-100- - | |||
| OUTPUT | DEFAULT CURRENT | 2100mA | ||
| RATED POWER | 100W | |||
| CONSTANT CURRBS EN/ENT REGION | 27-56V | |||
| FULL POWER CURRENT RANGE | 1750-2780mA | |||
| OPEN CIRCUIT VOLTAGE (max.) | 60V | |||
| CURRENT ADJ. RANGE | 875~2780mA | |||
| CURRENT RIPPLE | 3.0% max. @rated current | |||
| CURRENT TOLERANCE | ±5% | |||
| SET UP TIME | 500ms/230VAC, 1200ms/115VAC | |||
| Input | VOLTAGE RANGE | 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ) | PF>=0.97 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section) |
|||
| TOTAL HARMONIC DISTORTION | THD< 10% (@ load>=50% at 115VAC/230VAC ,@load>=75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section |
|||
| EFFICIENCY (Typ.) | 92.00% | |||
| AC CURRENT | 1.1A / 115VAC 0.5A / 230VAC 0.42A / 277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=400 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| STANDBY POWER CONSUMPTION | Standby power consumption<0.5W for AB-Type | |||
| PROTECTION | SHORT CIRCUIT | Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 61 ~ 78V | |||
| Shut down output voltage, re-power on after fault condition is removed to recover | ||||
| OVER POWER | 105-150% | |||
| Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER TEMPERATURE | Shut down output voltage, re-power on after fault condition is removed to recover | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section | ||
| MAX. CASE TEMP | Tcase=+85℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13); GB19510.1,GB19510.14; IP67;EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-PE:2KVAC O/P-PE:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-PE, O/P-PE:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55015(CISPR15),GB/T17743 | ---- | ||
| Radiated | BS EN/EN55015(CISPR15),GB/T17743 | ----- | ||
| Harmonic Current | BS EN/EN61000-3-2,GB/T17625.1 | Class C @load>=50% | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN61547 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 2871.3K hrs min. Telcordia SR-332(Bellcore) ;188.8K hrs min. MIL-HDBK-217F (25℃) | ||
| LIFETIME | 50000 hrs min | |||
| DIMENSION | φ130mm *56mm(D*H) | |||
| PACKING | 0.8Kg; 16pcs/ 14.8Kg/1.57CUFT | |||
Meanwell XBG-100 Series Features
l Full power output at 70~100% constant current range operation
l Wide input range 90 ~ 305V AC with active PFC function
l Metal housing design with IP67
l Multiple dimming functions: 3 in 1 (0-10V/PWM/Resistor)
l Dimming circuit with Isolated for latest safety regulation
l Surge protection with 6KV/4KV
l Typical lifetime> 50000 hours and 5 years warranty
l AC input cable with connector for flexible installation
Meanwell XBG-100 Series Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting
l Explosion-proof lighting
l Type HL LED driver for class I division 2

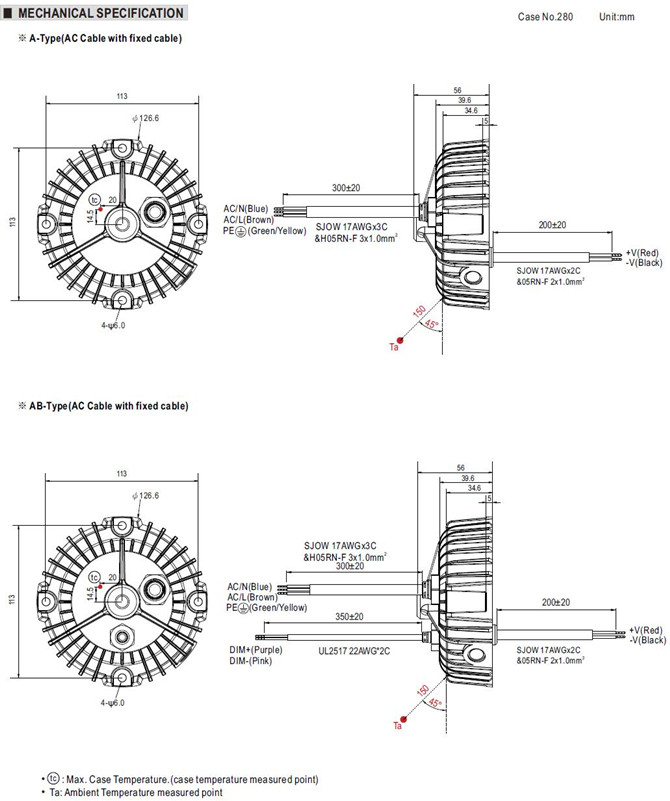

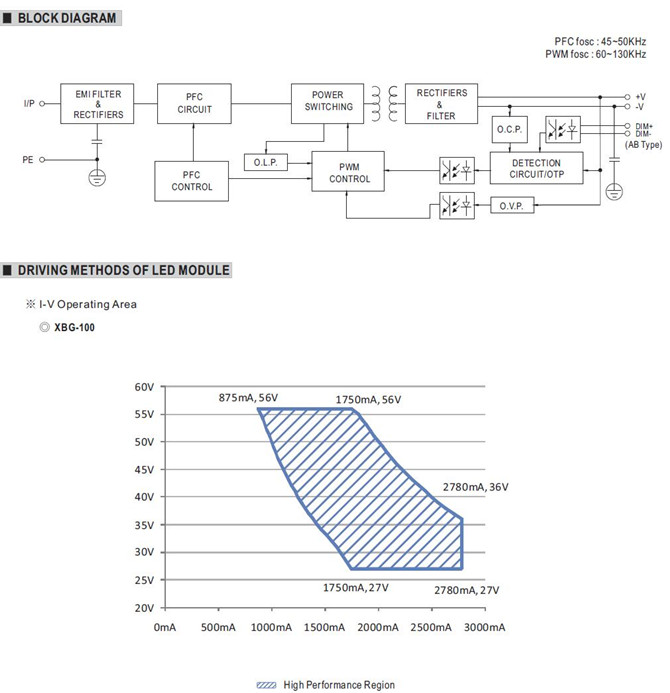

Meanwell XBG-100 Series Mechanical Diagram
