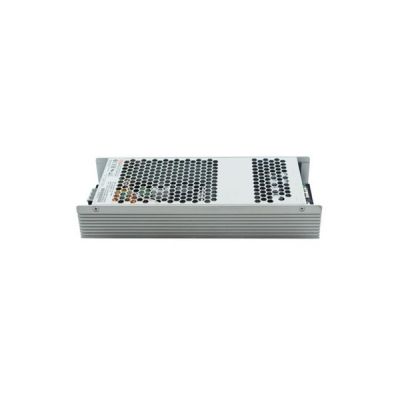

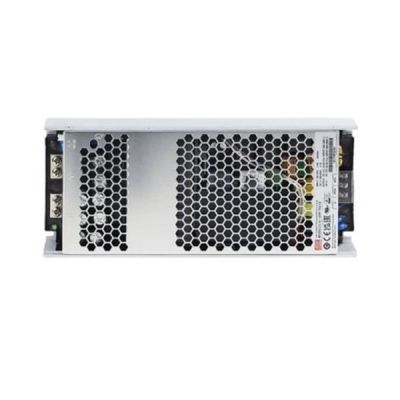

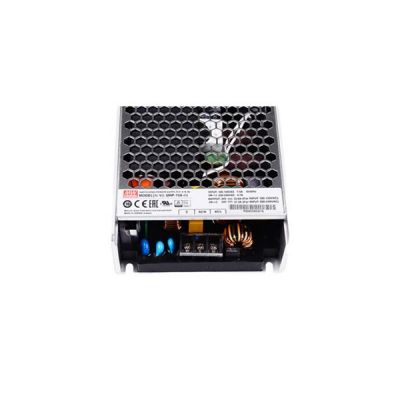

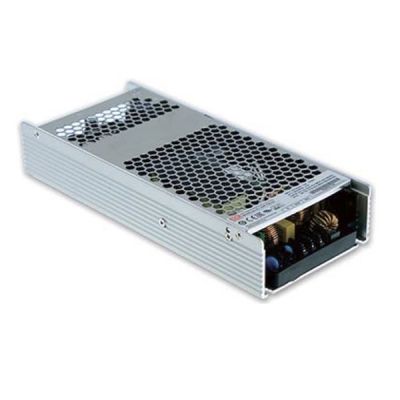

UHP-750-24
153.29
Details
Meanwell UHP-750-24 is a 750W single-output slim type power supply with 24V31.3A751.2W200mVp-p24-28.8V. The model is designed 41mm low -profile. At the same time, it adopts the full range 90~264VAC input, and output voltage 24V. Apart from the high efficiency up to 95%, UHP-750-24 could operate from -30℃~70℃ under air convection without fan. UHP-750-24 has the complete protection functions and 5G anti-vibration capability. Additionally, It is complied with the international safety regulations such as TUV EN62368-1 and UL62368-1.and design refers to EN6 1558-1 and EN60335-1. Thanks to its high efficiency, long lifespan and excellent reliability, Meanwell UHP-750-24 serves as a high performance power supply solution for various industrial applications.
Meanwell UHP-750-24 Encoding
| UHP | Series Nmae |
| 750 | Rate Wattage |
| 24 | Output Voltage |
Meanwell UHP-750-24 Specifications
| Model | UHP-750-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 31.3A | |
| RATED POWER | 751.2W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 24-28.8V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| HOLD UP TIME | 12ms/230VAC 12ms/115VAC | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 95.00% | |
| AC CURRENT (Typ.) | 7.5A/115VAC 3.8A/230VAC | |
| INRUSH CURRENT (Typ. ) | Cold start 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 105~125% rated output power |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 29 ~ 33V | |
| Protection type: Shut down O/P voltage, re-power on to recover | ||
| OVER TEMPERATURE | Protection type: Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | DC OK SIGNAL | Contact rating(max.): 30Vdc/1A resistive load |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refer to BS EN/EN61558-1, BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| Others | MTBF | 279.97K hrs min. Telcordia SR-332 (Bellcore); 104.86K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 237*100*41mm (L*W*H) | |
| PACKING | 1.4kg; 10pcs/15kg/0.8CUFT | |
Meanwell UHP-750-24 Features
l 3 years warranty
l DC OK relay contact
l Operating altitude up to 5000 meter
l LED indicator for power on
l Slim and Low profile (41mm)
l Fanless and conduction-cooled design
l Withstand 300 VAC surge input for 5 seconds
l Built-in active PFC function
l -30℃~+70℃ working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell UHP-750-24 Applications
l Household appliances
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Power Sourcing Equipment of PoE(48V model: DC O/P range 48~57.6V)
Meanwell UHP-750-24 Mechanical Diagram
