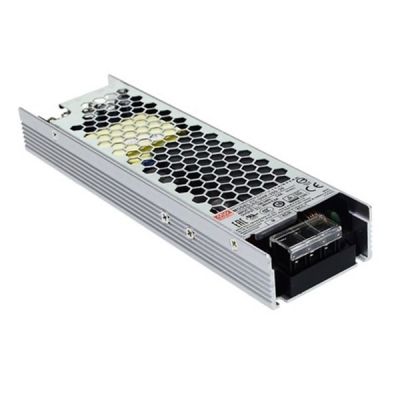

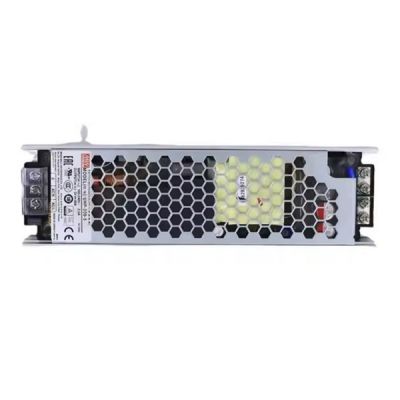

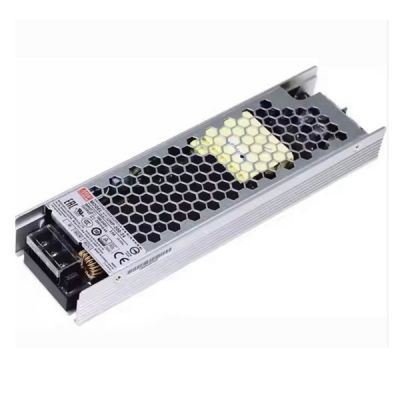

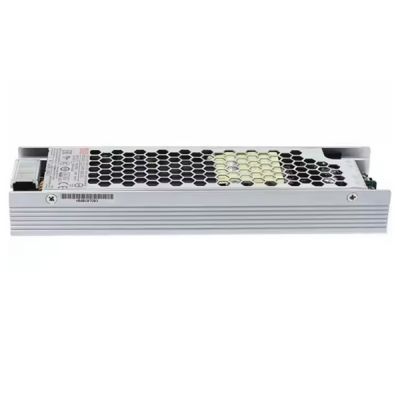

Meanwell 200W Slim Type with PFC Switching Power Supply

- +
Availability:In stock
SKU Meanwell UHP-200
Brand Meanwell
Details

Meanwell UHP-200 Series is 200W single-output slim type power supply with 26mm low-profile design. They use the full range 90~264VAC input, and the entire series offer an output voltage line of 3.3V,4.2V, 5V, 12V, 15V, 24V, 36V ,48V and 55V. Except the high efficiency up to 94%, the whole series can work from -30 ℃~ 70℃ under air convection without fan. In addition, Meanwell UHP-200 series has the complete protection functions and 5G anti-vibration capability. And lt is complied with the international safety regulations such as TUV EN62368-1, EN60335-1,UL 62368-1 and GB4943. Considering the high efficiency, high reliability and long longevity, Meanwell UHP-200 series power supply serves as a high performance solution for various industrial scenario.

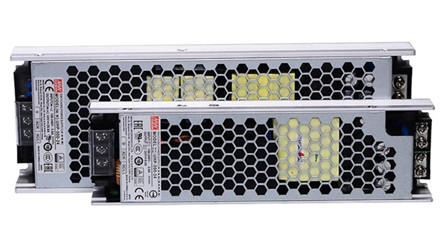

meanwell UHP-200 YCICT

Meanwell UHP-200 Series Model Encoding

UHP Series Name
200 Rated Wattage
Blank
R
5 Output Voltage
Type Description Note
Blank Enclosed In Stock
R Built-in DC OK active signal and redundant function In Stock

Meanwell UHP-200 Series Model Specifications

Model UHP-200-3.3 UHP-200-4.2 UHP-200-5 UHP-200-12 UHP-200-15 UHP-200-24 UHP-200-36 UHP-200-48 UHP-200-55
Output DC VOLTAGE 3.3V  4.2V 5V 1 2V  15V 24V  36V 48V  55V
RATED CURRENT  40A 40A 40A 16.7A 13.4A 8.4A 5.6A 4.2A 3.6A
RATED POWER 132W 168W 200W 200.4W 201W 201.6W 201.6W 201.6W 201.6W
RIPPLE & NOISE (max.) mVp-p 150 150 200 240 240 240 240 300 360
VOLTAGE ADJ. RANGE 3.2-3.5V 3.6-4.4V 4.5-5.5V 11.4-12.6V 14.3-15.8V 22.8-25.2V 34.2-37.8V 45.6-50.4V 45-58V
VOLTAGE TOLERANCE ±2% ±2% ±2% ±1% ±1% ±1% ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.3% ±0.3% ±0.3% ±0.3%
LOAD REGULATION ±1% ±1% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 2000ms, 80ms/23OVAC; 3000ms, 80ms/115VAC at full load;550ms/23OVAC for 55V setup time
HOLD UP TIME  10ms/23OVAC       10ms/115VAC
Input VOLTAGE RANGE 90 ~ 264VAC   127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 89% 90% 91% 93% 94% 94% 94% 94% 94%
AC CURRENT (Typ.) 2.2A/115VAC 1.1A/23OVAC
INRUSH CURRENT (Typ. ) Cold start 40A/115VAC 80A/230VAC
LEAKAGE CURR ENT <0.75mA/ 24OVAC
PROTECTION OVERL OAD 110~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.6V 4.62-5.46V 5.75-6.75V 13.2-15.6V 16.5-19.5V 26.4-31.2V 39.6-46.8V 52.8-62.4V 60-69V
Protection type :Shut down O/P voltage ,re-power on to recover
OVER TE MPERATURE Protection type :Shut down O/P voltage or Hiccup mode, recovers automatically after temperature goes down
FUNCTION DC OK SIGNAL(Optional) Contact rating(max.):15Vdc/10mA resistive load
REDUNDANT(Optional) For parallel connection protection: For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system
ENVIRONMENT WORKING TEMP -30 ~ +70C (Refer to Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP HUMIDITY 40 ~ +85C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT +0.03%/C (0~ 50'C )
VIBRATIO 10 ~ 500Hz, 5G 10min./1cycle, 6Omin. each along x, Y, Z axes
SAFETY &
EMC
SAFETY STANDARDS UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), CCC GB4943, EAC TP TC 004,
BSMI CNS14336-1 approved, Design refer to BS EN/EN61558-1,-2-16
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH
EMC EMISSION Compliance to BS EN/EN55032,GB9254,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level ,
criterial A,EAC TP TC 020
OTHERS MTBF 257K hrs min. MIL-HDBK-217F (25)
DIMENSION 194*55*26mm (L*W*H)
PACKING 0.468kg;24pcs/12.2kg/0.49CUFT

Meanwell UHP-200 Series Features

ü  Slim and Low profile (26mm)

ü  Fanless design,200W convection

ü  Withstand 300VAC surge input for 5 seconds Built-in active PFC function

ü  -30~+70C working temperature

ü  Protections: Short circuit 1 Overload /Over voltage / Over temperature

ü  DC OK active signal and redundant function(option)

ü  Operating altitude up to 5000 meter(Note.5)

ü  LED indicator for power on

ü  3 years warranty

Meanwell UHP-200 certificate

Meanwell UHP-200 Series Applications

ü  Household appliances

ü  LED display application

ü  Industrial control system

ü  Industrial automation machinery

ü  Mechanical and electrical equipment

ü  Electronic instruments, equipment or apparatus

ü  Power Source Equipment for PoE(55V model)

Meanwell UHP-200 Applications YCICT

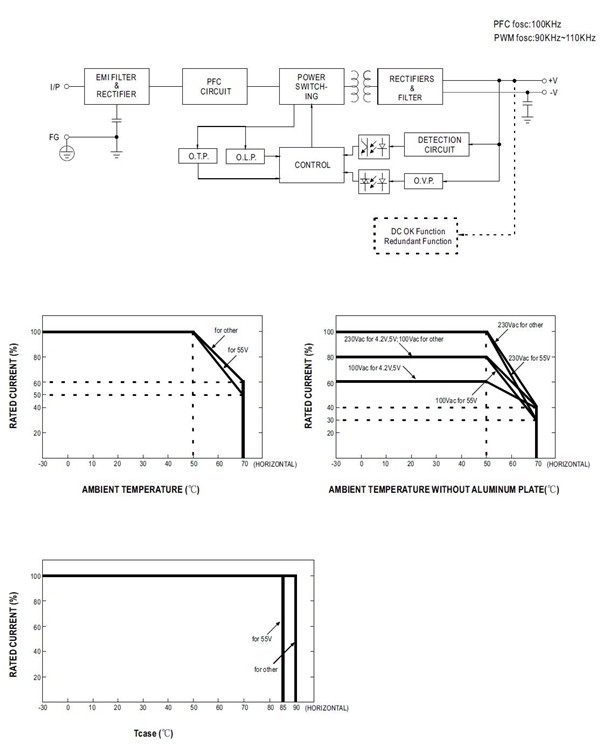

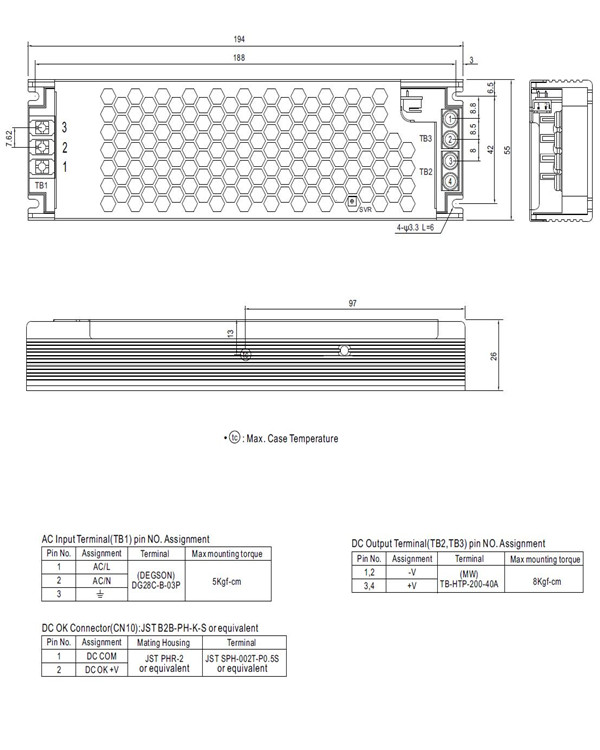

Meanwell UHP-200 Series Mechanical Diagram

Meanwell UHP-200 certificate

Meanwell UHP-200 certificate YCICT
