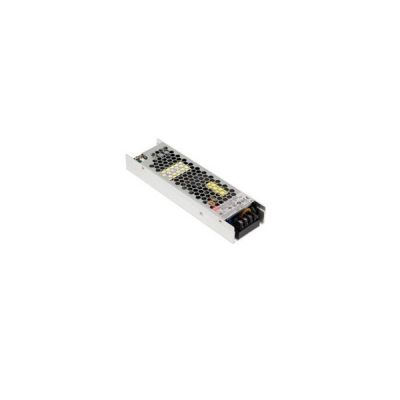

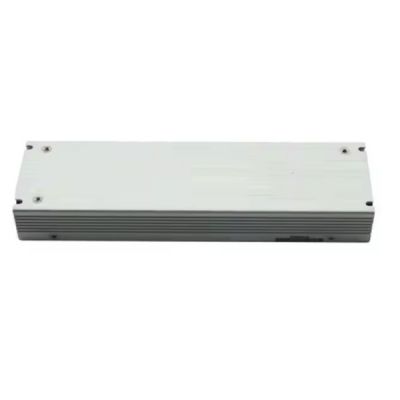

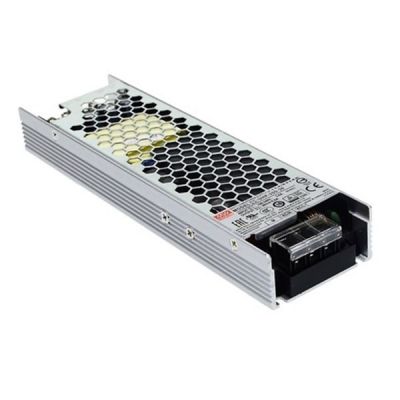

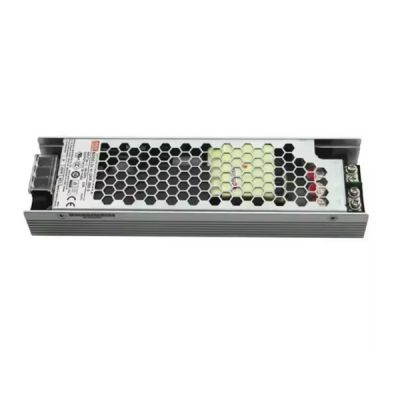

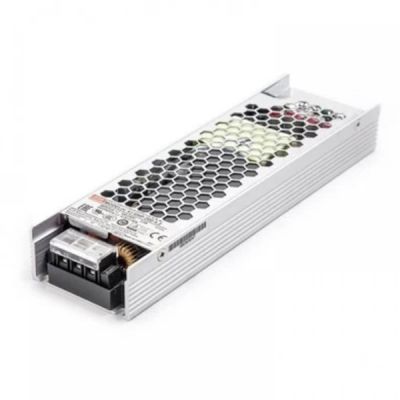

Meanwell 200W Slim Type with PFC Switching Power Supply and 4.2V40A168W150mVp-p3.6-4.4V±2%±0.5%±1%

- +
Availability:In stock
SKU Meanwell UHP-200 -4.2
Brand Meanwell
Details

Meanwell UHP-200 -4.2 is 200W single-output slim type power supply with 26mm low-profile design and 4.2V40A168W150mVp-p3.6-4.4V. This model adopts the full range 90~264VAC input. Except for the high efficiency up to 94%, UHP-200-4.2 could operate from -30℃ ~ 70℃ under air convection without fan. What’s more, it has the complete protection functions and 5G anti-vibration capability. In addition, this unit is complied with the international safety regulations such as TUV EN62368-1, EN60335-1,UL 62368-1 and GB4943. Because of its High efficiency, long life, and high reliability, UHP-200-4.2 power supply functions as a high performance solution for various industrial fields.

Meanwell UHP-200 -4.2 Specifications

Meanwell UHP-200 -4.2 Specifications

Model UHP-200-4.2
Output DC VOLTAGE  4.2V
RATED CURRENT  40A
RATED POWER 168W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 3.6-4.4V
VOLTAGE TOLERANCE ±2%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 2000ms, 80ms/23OVAC; 3000ms, 80ms/115VAC at full load;550ms/23OVAC for 55V setup time
HOLD UP TIME  10ms/23OVAC       10ms/115VAC
Input VOLTAGE RANGE 90 ~ 264VAC   127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 90%
AC CURRENT (Typ.) 2.2A/115VAC 1.1A/23OVAC
INRUSH CURRENT (Typ. ) Cold start 40A/115VAC 80A/230VAC
LEAKAGE CURR ENT <0.75mA/ 24OVAC
PROTECTION OVERL OAD 110~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 4.62-5.46V
Protection type :Shut down O/P voltage ,re-power on to recover
OVER TE MPERATURE Protection type :Shut down O/P voltage or Hiccup mode, recovers automatically after temperature goes down
FUNCTION DC OK SIGNAL(Optional) Contact rating(max.):15Vdc/10mA resistive load
REDUNDANT(Optional) For parallel connection protection: For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system
ENVIRONMENT WORKING TEMP -30 ~ +70C (Refer to Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP HUMIDITY 40 ~ +85C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT +0.03%/C (0~ 50'C )
VIBRATIO 10 ~ 500Hz, 5G 10min./1cycle, 6Omin. each along x, Y, Z axes
SAFETY &
EMC
SAFETY STANDARDS UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), CCC GB4943, EAC TP TC 004,
BSMI CNS14336-1 approved, Design refer to BS EN/EN61558-1,-2-16
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH
EMC EMISSION Compliance to BS EN/EN55032,GB9254,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level ,
criterial A,EAC TP TC 020
OTHERS MTBF 257K hrs min. MIL-HDBK-217F (25)
DIMENSION 194*55*26mm (L*W*H)
PACKING 0.468kg;24pcs/12.2kg/0.49CUFT

Meanwell UHP-200 -4.2 Features

l  3 years warranty

l  Slim and Low profile (26mm)

l  Fanless design ,200W convection

l  Withstand 300VAC surge input for 5 seconds

l  Built-in active PFC function

l  -30℃~+70℃ working temperature

l  DC OK active signal and redundant function(option)·

l  Operating altitude up to 5000 meters

l  L ED indicator for power on

l  Protections: Short circuit / Overload /Over voltage / Over temperature

Meanwell UHP-200 -4.2 Features YCICT

Meanwell UHP-200 -4.2 Applications

l  Household appliances

l  LED display application

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Power Source Equipment for PoE (55V model)

Meanwell UHP-200 -4.2 Applications

eanwell UHP-200 -4.2 Mechanical Diagram

Meanwell UHP-200 -4.2 Mechanical diagram

Meanwell UHP-200 -4.2 Mechanical diagram YCICT
