SE-1500-27
228.01
Details

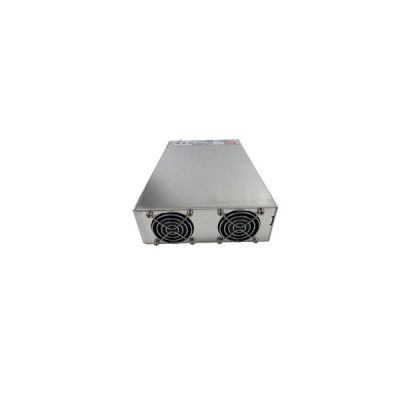

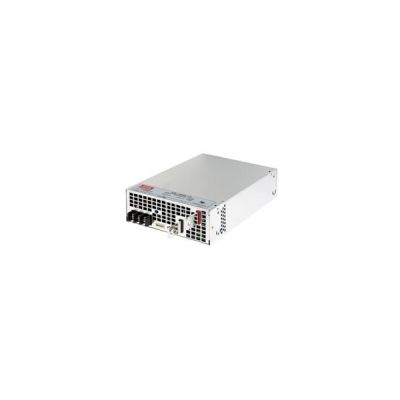

Meanwell SE-1500-27 is economical Non-PFC medium and high-power industrial switching power supply With 27V55.6A0-55.6A1501.2W. this model is produced under a lead-free process to fulfill the environmental protection requirements and also provides complete protection functions like short circuit protection, overload protection, overvoltage protection and overheat protection. SE-1500-27 has Safety certification UL/CUL. It is an enhanced version of the NE series power supply. What’s more, this model has built-in remote detection function and also remote power on/off function. Due to its high efficiency, long life and high reliability, Meanwell SE-1500-27 is ideally fit to use in various industrial fields.
Meanwell SE-1500-27 Model Specifications
| Model | SE-1500-27 | |
| Output | DC VOLTAGE | 27V |
| RATED CURRENT | 55.6A | |
| CURRENT RANGE | 0-55.6A | |
| RATED POWER | 1501.2W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | |
| VOLTAGE ADJ. RANGE | 25-30V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 150ms, 12ms / 230VAC at full load | |
| HOLD UP TIME | 26ms / 230VAC at full load | |
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 17.5A / 230VAC | |
| INRUSH CURRENT (Typ. ) | 60A / 230VAC | |
| LEAKAGE CURR ENT | <3.5mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 31-35V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | DC_OK SIGNAL | PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V |
| REMOTE CONTROL | RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 333.3K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 278*177.8*63.5mm (L*W*H) | |
| PACKING | 3.3Kg; 4pcs/14.2Kg/1.14CUFT | |
Meanwell SE-1500-27 Features
l Low cost
l 2 years warranty
l UL/ CUL approved
l AC input 180 ~ 264VAC
l With DC OK signal output
l Built-in remote sense function
l High power density 7.8w/inch
l Built-in remote ON-OFF control
l AC input active surge current limiting
l Forced air cooling by built-in DC ball bearing fan
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell SE-1500-27 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
