SE-1500-24
223.17

SE-1500-24

$223.17

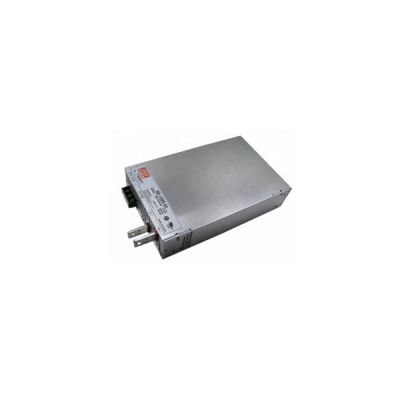

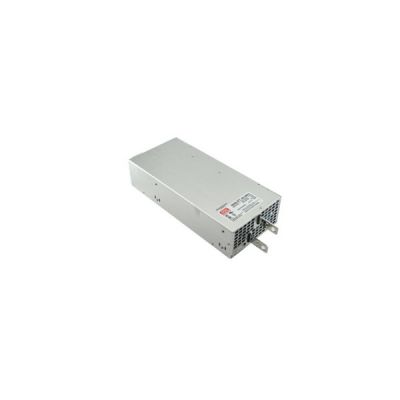

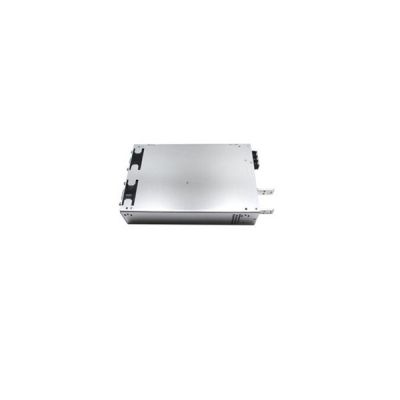

Meanwell 1500W Single Output Power Supply 24V62.5A0-62.5A1500W15021.6-26.4V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell SE-1500-24
Brand Meanwell
Details

Meanwell SE-1500-24 is economical Non-PFC medium and high-power industrial switching power supply With 24V62.5A0-62.5A1500W. the power supply is produced under a lead-free process to fulfill the environmental protection requirements and also has complete protection functions like short circuit protection, overload protection, overvoltage protection and overheat protection. SE-1500-24 gets Safety certification UL/CUL. It is an enhanced version of the NE series power supply. What’s more, the model has built-in remote detection function and also remote power on/off function. Because of its high efficiency, long life and high reliability, Meanwell SE-1500-24 is suitable to use in various industrial cases.

Meanwell SE-1500-24 Specifications

Meanwell SE-1500-24 Specifications

Model SE-1500-24
Output DC VOLTAGE 24V
RATED CURRENT 62.5A
CURRENT RANGE 0-62.5A
RATED POWER 1500W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 21.6-26.4V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 150ms, 12ms / 230VAC at full load
HOLD UP TIME  26ms / 230VAC at full load
Input VOLTAGE RANGE 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  87.00%
AC CURRENT (Typ.) 17.5A / 230VAC
INRUSH CURRENT (Typ. ) 60A / 230VAC
LEAKAGE CURR ENT <3.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 125% rated output power
Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 27.6-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC_OK SIGNAL PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
REMOTE CONTROL RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off
ENVIRONMENT WORKING TEMP -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 333.3K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 278*177.8*63.5mm (L*W*H)
PACKING 3.3Kg; 4pcs/14.2Kg/1.14CUFT

Meanwell SE-1500-24 Features

l  Low cost

l  2 years warranty

l  UL/ CUL approved

l  AC input 180 ~ 264VAC

l  High power density 7.8w/inch

l  With DC OK signal output

l  Built-in remote ON-OFF control

l  Built-in remote sense function

l  AC input active surge current limiting

l  Forced air cooling by built-in DC ball bearing fan

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell SE-1500-24 Features

Meanwell SE-1500-24 Mechanical Diagram

Meanwell SE-1500-24 Mechanical DiagramMeanwell SE-1500-24 Mechanical Diagram
