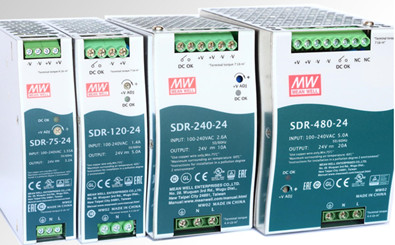

Meanwell 480W Single Output Industrial DIN RAIL with PFC Function

- +
Availability:In stock
SKU Meanwell SDR-480
Brand Meanwell
Details

Meanwell SDR-480 Series is 480W Single Output Industrial DIN RAIL with PFC Function. The entire series adapt to be installed on DIN rail TS-35/7.5 or 15 mounting rails. The body is designed just 85.5 mm in width, which saves lots of space inside the cabinets. At the same time, SDR-480 Series adopt the full range AC input from 90VAC to 264V AC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. In addition, Meanwell SDR-480 Series is designed with metal housing that enhances the power dissipation. With working efficiency up to 94%, they can operate at the ambient temperature between -20℃and 70℃ under air convection. Moreover, the entire series is equipped with protections of Short circuit/Overload/Over voltage/Over temperature. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) permit Meanwell SDR-480 series a very competitive power supply solution for industrial applications.

Meanwell SDR-480 Series Model Specifications

Meanwell SDR-480 Series Model Specifications

Model SDR-480-24 SDR-480-48
Output DC VOLTAGE 24V 48V
RATED CURRENT 20A 10A
CURRENT RANGE 0-20A 0-10A
RATED POWER  480W 480W
PEAK CURRENT 30A 15A

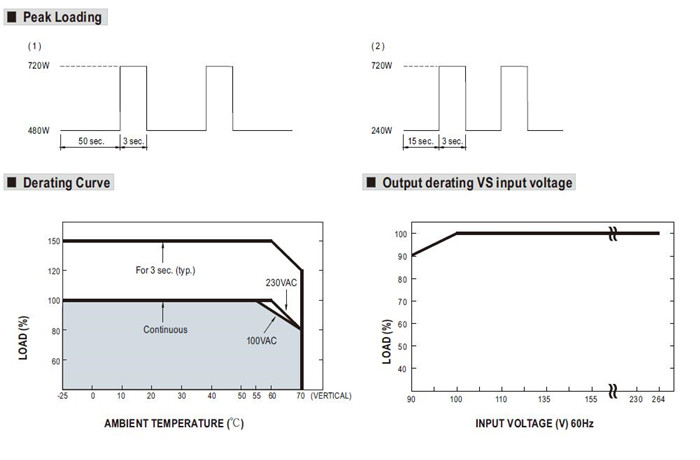

PEAK POWER 720W (3 sec)
RIPPLE & NOISE (max.)  100mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 24-28V 48-55V
VOLTAGE TOLERANCE ±1.2% ±1.0%
LINE REGUL ATION ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 150ms/230VAC 3000ms, 150ms/115VAC at full load
HOLD UP TIME  14ms/230VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR (Typ.) 0.94/230VAC 0.99/115VAC at full load
EFFICIENCY (Typ.)  94.00% 94.00%
AC CURRENT (Typ.) 5A/115VAC 2.5A/230VAC
INRUSH CURRENT (Typ. ) 40A/115VAC 80A/230VAC
LEAKAGE CURRENT <0.8mA / 240VAC
PROTECTION OVERLOAD Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery
>150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
OVER VOLTAGE 29 ~ 33V 56 ~ 65V
Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC OK REALY CONTACT RATINGS (max.) 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT WORKING TEMP -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 , BSMI CNS14336-1 approved ; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2),
BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020, SEMI F47 approved
Others MTBF 112.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 85.5*125.2*128.5mm (W*H*D)
PACKING 1.6Kg; 8pcs/13.8Kg/0.9CUFT

Meanwell SDR-480 Series Features

l  High efficiency 94% and low power dissipation

l  1501o peak load capability

l  Built-in active PFC function, PF>0.94

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection

l  Built-in constant current limiting circuit

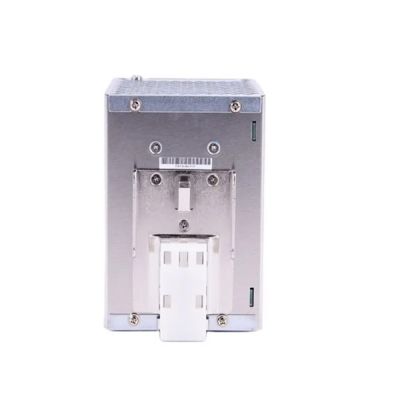

l  Can be installed on DIN rail TS-35/7.5 or 15

l  UL 508(industrial control equipment) approved

l  BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

l  Built-in DC OK relay contact

l  100% full load burn-in test

l  3 years warranty

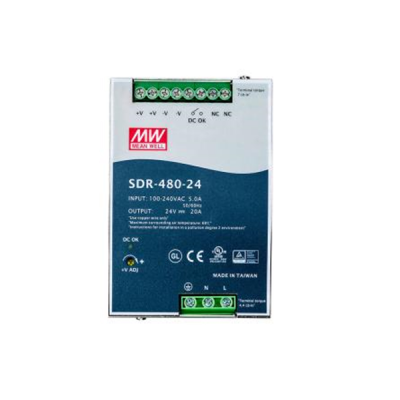

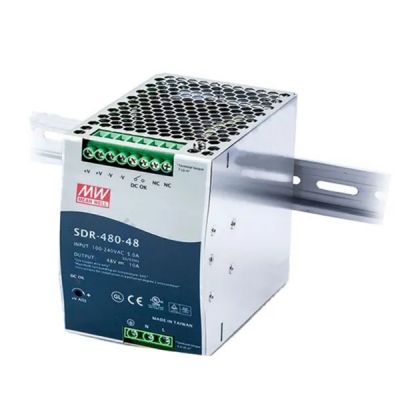

Meanwell SDR-480

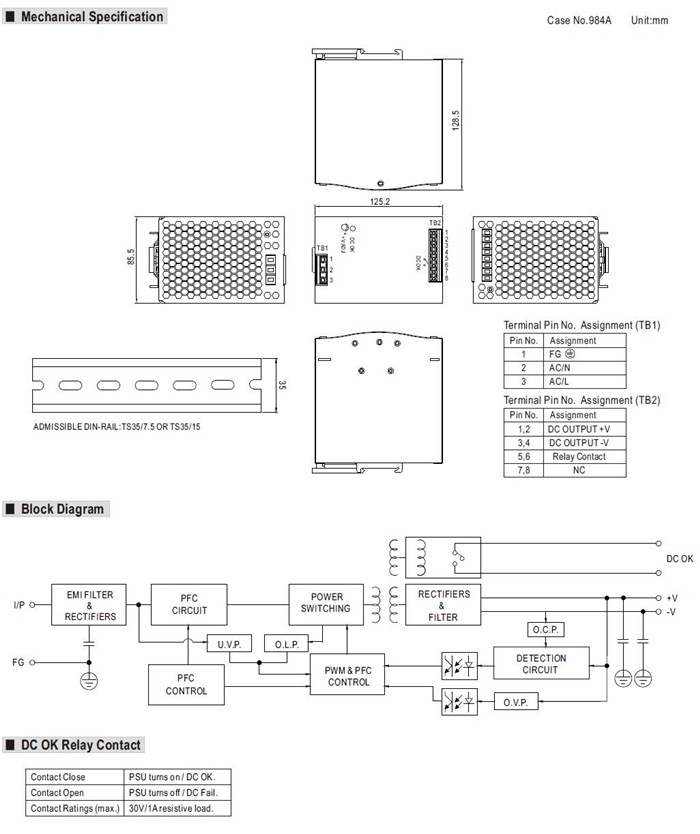

Meanwell SDR-480 Series Mechanical Diagram

Meanwell SDR-480 Series Mechanical DiagramMeanwell SDR-480 Series Mechanical Diagram
