S6720-32C-PWH-SI-AC
3389.16
Details
Huawei S6720-32C-PWH-SI-AC is a next-generation multi-gigabit 10GE fixed switch with 24 × multi-gigabit Base-T Ethernet ports, 4 × 10GE SFP+. It can provide high-speed wireless device access and 10GE data center server access and also function as an access/aggregation switch on a campus network. S6720-SI implements complex traffic classification based on packet information such as the 5-tuple, IP precedence, ToS, DSCP, IP protocol type, ICMP type, TCP source port, VLAN ID, Ethernet protocol type, and CoS. ACLs can be applied to the inbound or outbound direction to filter packets. Additionally, S6720-SI supports the flow-based two-rate and three-color CAR. Each port supports eight priority queues and multiple queue scheduling algorithms such as WRR, DRR, PQ, WRR+PQ, and DRR+PQ, which ensures the quality of network services such as voice, video and data services. The switch is ideal for high-speed wireless device access, 10GE data center server access, and campus network access/aggregation.

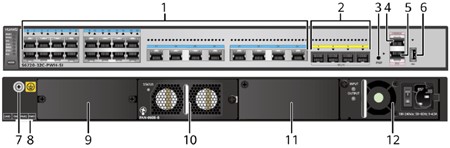

| 1, Twenty-four PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port) | 2, Four 10GE SFP+ ports |
| 3, One PNP button | 4, One console port |
| 5, One ETH management port | 6, One USB port |
| 7, Ground screw | 8, ESN label |
| 9, Rear card slot | 10, Fan slot |
| 11, Power module slot 2 | 12, Power module slot 1 |
Huawei S6720-32C-PWH-SI-AC Specifications
| Item | Description |
| Part number | 98010719 |
| Model | S6720-32C-PWH-SI-AC |
| Ports | 24 × multi-gigabit Base-T Ethernet ports, 4 × 10GE SFP+ |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 22.7 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Using 580 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Weight (including package) | 9.1 kg (20.06 lb) |
| Stack ports | Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | Using 650 W DC or 580 W AC power modules: 106.9 W (without card and PoE) |
| Using 1000 W AC power modules: 121.6 W (without card and PoE) | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Maximum power consumption (100% throughput, full speed of fans) | Using 650 W DC or 580 W AC power modules: |
| Not providing the PoE function: 125.6 W (without card) | |
| 100% PoE loads: 1017.2 W (system power consumption: 278 W, PoE: 739.2 W, without card) | |
| Using 1000 W AC power modules: | |
| Not providing the PoE function: 125.6 W (without card) | |
| 100% PoE loads: 1735 W (system power consumption: 295 W, PoE: 1440 W) | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) |
Huawei S6720-32C-PWH-SI-AC Features
l S6720-SI supports centralized MAC address authentication and 802.1X authentication. It authenticates users based on statically or dynamically bound user information such as the user name, IP address, MAC address, VLAN ID, port number, and flag indicating whether antivirus software is installed. VLANs, QoS policies, and ACLs can be delivered to users dynamically.
l S6720-SI can limit the number of MAC addresses learned on a port to prevent MAC address entries from being exhausted by source MAC address spoofing packets. This function minimizes packet flooding that occurs when MAC addresses of users cannot be found in the MAC address table.
l S6720-SI supports redundant power supplies. Users can choose a single power supply or use two power supplies to ensure device reliability. With two pluggable fan modules, the S6720-SI has a longer MTBF time than counterpart switches.
Huawei S6720-32C-PWH-SI-AC Ordering Info
| Item | Product Description |
| 1 | S6720-26Q-SI-24S bundle (24 x 10GE SFP+, 2 x 40GE QSFP+, with 1 150W AC power supply) |
| 2 | S6720S-26Q-SI-24S bundle (24 x 10GE SFP+, 2 x 40GE QSFP+, with 1 150W AC power supply) |
| 3 | S6720-32X-SI-32S bundle (32 x 10GE SFP+, with 1 150W AC power supply) |
| 4 | S6720-32C-SI-AC bundle (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, with 1 interface slot, with 1 150W AC power supply) |
| 5 | S6720-32C-SI-DC bundle (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, with 1 interface slot, with 1 150W DC power supply) |
| 6 | S6720-32C-PWH-SI (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, PoE++, with 1 interface slot, without power supply) |
| 7 | 2-port 40GE QSFP+ interface card |
| 8 | 4-port 10GE SFP+ interface card |
| 9 | 150W AC Power Module |
| 10 | 150W DC Power Module |
| 11 | 580W AC PoE Power Module |
| 12 | 650W DC PoE Power Module |
| 13 | 1000W AC PoE Power Module |
| 14 | 1150W AC PoE Power Module |
Huawei S6720-32C-PWH-SI-AC Networking and Applications
