S5700-28C-HI-24S
685.25
Details

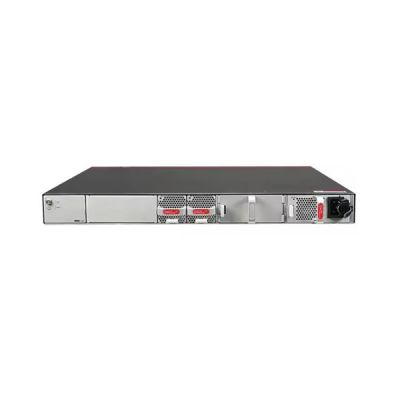

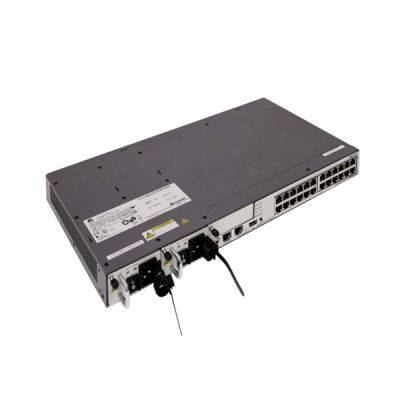

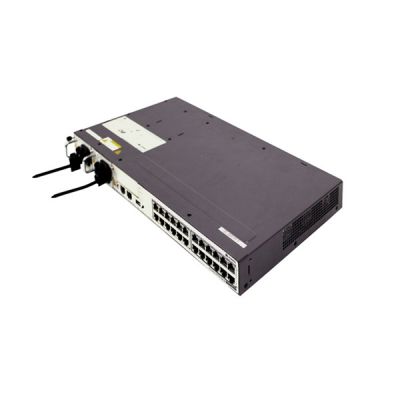

Huawei S5700-28C-HI-24S is an advanced Gigabit Ethernet switch with 24x10/100/1000Base-T ports, and Double swappable AC/DC power supplies. It offers Forwarding performance: 96 Mpps and Switching capacity: 256Gbps. Based on next-generation, high-performance hardware and Huawei Versatile Routing Platform (VRP), S5700-HI provides excellent flexible Ethernet networking, comprehensive VPN tunneling technologies, diversified security mechanisms, mature IPv6 features, and are easy to manage and maintain. All these features make S5700-HI the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks.
In addition, S5700-HI provides the NetStream function and can function as a NetStream data exporter. It periodically collects data traffic statistics, encapsulates the statistics in standard V5, V8, or V9 packets, and sends the packets to the NetStream data collector according to NetStream configuration. The collected statistics are then processed to dynamically generate reports, analyze traffic attributes, and generate alarms on abnormal traffic. The NetStream function helps you optimize network structure and adjust resource deployment in a timely manner.

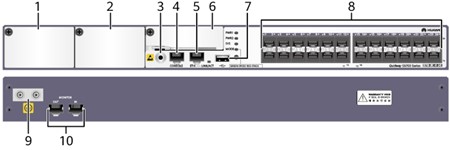

| 1, Power module slot 1 | 2, Power module slot 2 |
| 3, ESD socket | 4, 1 Console interface |
| 5, 1 ETH management interface | 6, Front card slot |
| 7, 1 USB port | 8, 24*10/100/1000BASE-T Ethernet ports |
| 9, Grounding screw | 10, Monitoring port |
Huawei S5700-28C-HI-24S Specifications
| Item | Description |
| Part No | 2353631 |
| Port | 24x100/1000Base-X ports Subcards supported: 4x1000Base-X SFP subcard, 2x10GE SFP+ subcard, and 4x10GE SFP+ subcard |
| Memory（RAM） | 512MB |
| Flash | 64MB |
| MeanTime Between Failures (MTBF) (years) | The configuration for 4*10GE cards is 25.5; the configuration for 2*10GE cards is 34.8; the configuration for 4*GE cards is 36.1. |
| MeanTime To Repair (MTTR) (hours) | 2 |
| Availability | Over 0.99999 |
| Service Port Surge Protection Specifications | NA |
| Power Port Surge Protection Specifications | Configure the AC power supply module: differential mode ±6kV, common mode ±6kV. Configure the DC power supply module: differential mode ±1kV, common mode ±2kV. |
| Dimensions (W×D×H) | 442.0mm×220.0mm×44.4mm |
| Weight | Empty configuration: <=5kg Full configuration: <=6.5kg |
| Stacking Port | Versions prior to V200R003C00: not supported Versions V200R003C00 and later: 10GE interface on the front expansion card |
| RPS | No support |
| PoE | No Support |
| Rated Voltage Range | AC Input: 100V AC to 240V AC; 50/60Hz DC Input: -48V DC to -60V DC |
| Maximum Voltage Range | AC Input: 90V AC to 264V AC; 47Hz to 63Hz DC Input: -36V DC to -72V DC |
| Maximum power consumption (100% traffic, fan at full speed) | 80.7W |
| Operating temperature range | -5°C～+55°C |
| Storage temperature range | -40°C～+70°C |
| Ambient noise (27°C, sound power) | less than 60dB(A) |
| Relative humidity range | 5%RH to 95%RH, non-condensing |
| Operating altitude | AC power module configuration: 0m to 5000m DC power module configuration: 0m to 2000m |
| Product certification | Support EMC certification Support safety certification Support production certification |
Huawei S5700-28C-HI-24S Features
l S5700-HI allows users in different VPNs to connect to the same switch and isolates users through multi-instance routing. The S5700-HI supports Multi-Protocol Label Switching (MPLS) QoS, MPLS Traffic Engineering (TE), Virtual Leased Line (VLL), Virtual Private LAN Service (VPLS), and Layer 3 Virtual Private Network (L3VPN). They can provide high-quality private line access services for enterprises and are cost-effective case-shaped MPLS switches.
l S5700-HI provides a series of mechanisms to defend against DoS attacks and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and change of the DHCP CHADDR value. You can specify DHCP snooping trusted and untrusted ports to ensure that users connect only to the authorized DHCP server.
l S5700-HI uses the mature, stable Versatile Routing Platform (VRP) and supports IPv4/IPv6 dual stacks, IPv6 routing protocols (RIPng, OSPFv3, BGP4+, and IS-IS for IPv6), and IPv6 over IPv4 tunnels including manual, 6-to-4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels. With these IPv6 features, the S5700-HI can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping realize IPv4-to-IPv6 transition.
Huawei S5700-28C-HI-24S Ordering Info
| Part No | Description |
| 2353631 | S5700-28C-HI-24S (24xGig SFP, with 1 interface slot) |
| 2353630 | S5700-28C-HI (24xEthernet 10/100/1000 ports, with 1 interface slot) |
| 2354043 | S5710-108C-PWR-HI (48xEthernet 10/100/1000 ports, 8x10 Gig SFP+, PoE+, with 4 interface slots) |
| 03021JYN | 2x10 Gig SFP+ Interface Card (used in S5700-HI series) |
| 03021JYM | 4x10 Gig SFP+ Interface Card (used in S5700-HI series) |
| 03021JYP | 4xGig SFP Interface Card (used in S5700-HI series) |
| 03021PED | 16xGig SFP Interface Card (used in S5710-HI series) |
| 03021NXB | 16xEthernet 10/100/1000 ports Interface Card (used in S5710-HI series) |
| 03021NKW | 4x40 Gig QSFP+ Interface Card (used in S5710-HI series) |
| 03021PHQ | 4x10 Gig SFP+ Interface Card (used in S5710-HI series) |
| 02310GBM | 170W DC Power Module (used in S5700-HI series) |
| 2130966 | 170W AC Power Module (used in S5700-HI series) |
| 2130971 | 350W AC Power Module (used in S5710-HI series) |
| 2130984 | 1150W AC PoE Power Module |

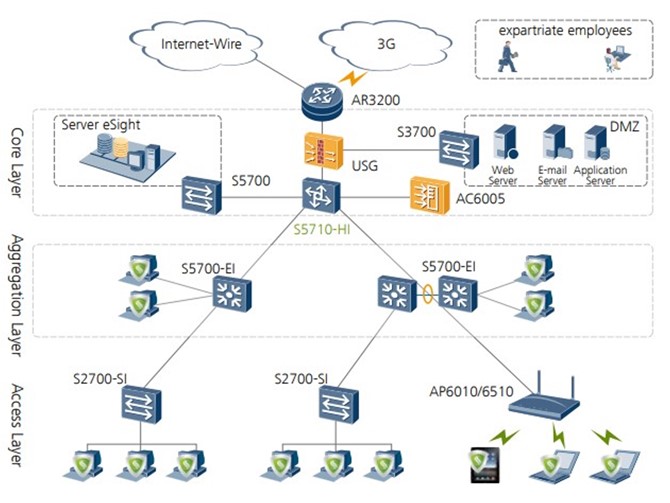

Huawei S5700-28C-HI-24S Networking and Applications
More Information
| Brand | Huawei |
|---|
