S6700-24-EI
2021.12
Details

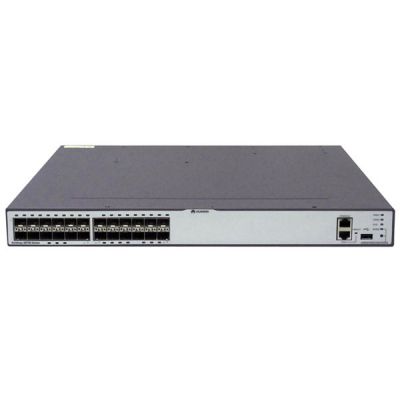

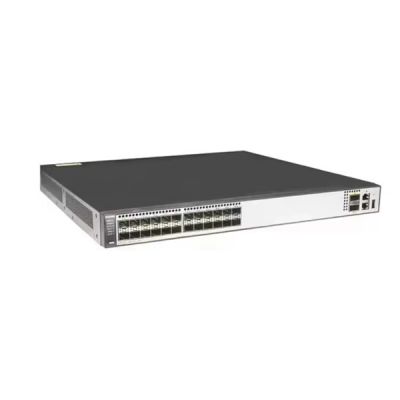

Huawei S6700-24-EI is a next-generation 10G box switch. The product can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. At the same time, S6700 has industry-leading performance and provides up to 24 or 48 line-speed 10GE ports. S6700-24-EI can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. In addition, S6700 provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure data centers.

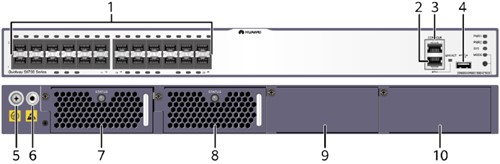

| 1, Twenty-four 10GE SFP+ ports | 2, One ETH management port |
| 3, One console port | 4, One USB port |
| 5, Ground screw | 6, ESD jack |
| 7, Fan slot 2 | 8, Fan slot 1 |
| 9, Power module slot 2 | 10, Power module slot 1 |
Huawei S6700-24-EI Specifications
| Item | Description |
| Part number | 2352768 |
| Port | Twenty-four GE SFP or 10 GE SFP+ ports |
| Memory (RAM) | 512 MB |
| Flash | 64 MB |
| Mean time between failures (MTBF) | 34.54 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±2 kV in differential mode, ±4 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight | Empty: ≤ 5 kg (11.02 lb) |
| Fully configured: ≤ 8.5 kg (18.74 lb) | |
| Stack ports | Any 10GE SFP+ ports (a maximum of eight physical ports) |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 153.6 W |
| Operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 55 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification |
Huawei S6700-24-EI Features
l S6700 provides sufficient bandwidth for users, many servers, particularly those in data centers, use 10G network adapters. The S6700 can be used in data centers to provide high forwarding performance and 10GE ports. The S6700 has the high density of all 10GE ports and the large switching capacity. Each S6700 provides a maximum of 48 line-speed 10GE ports.
l S6700 provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attack types include SYN Flood attacks, Land attacks, Smurf attacks, and ICMP Flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users
l S6700 supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTPs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, optimizing bandwidth usage.
Huawei S6700-24-EI Ordering Info
| S6700-24-EI Mainframe (24 10GE SFP+,Dual Slots of power,Without Power Module) |
| S6700-48-EI Mainframe (48 10GE SFP+, Dual Slots of power,Without Power Module) |
| 500W AC Power Module |
| 500W DC Power Module |
Huawei S6700-24-EI Networking and Applications
More Information
| Brand | Huawei |
|---|
Custom Tab
Abundant supply to meet market demand. The warehouse is rich in goods with all kinds of commodities, which Can meet the needs of different customers.
Fast delivery and high efficiency. The warehouse has sufficient supply, when customers need to order, we can quickly find the goods, and deliver out, which effectively improves the efficiency and saves valuable time for customers
Our products have more advantages in price. We always believe that you should enjoy higher quality with lower price. Therefore, we are committed to providing consumers with the most cost-effective products.
No matter how great our goals are, or how many great things waiting for us to do, we must keep our promises and do it well. Because these is one word that cannot be missing in the secret of success. That is "integrity".
