RSP-200-3.3
35.27
Details

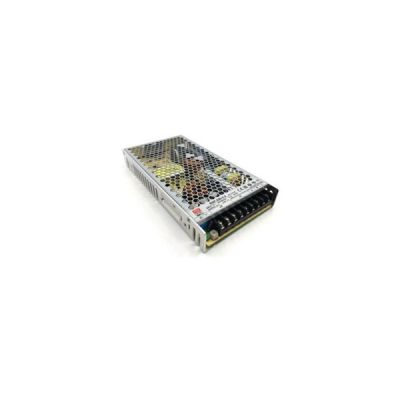

Meanwell RSP-200-3.3 is a 200W single output enclosed type AC/DC power supply with PFC Functions. The unit works for 88-264VAC input voltage and provides it with the DC output mostly demanded from the industry. RSP-200-3.3 is cooled by free air convection, and operate for the temperature reaching up to 70℃. In light of its high efficiency, long longevity and high reliability, Meanwell RSP-200-3.3 functions as a high price-to-performance power supply solution for various areas.
Meanwell RSP-200-3.3 Specifications
| Model | RSP-200-3.3 | |
| Output | DC VOLTAGE V | 3.3 |
| RATED CURRENT A | 40 | |
| CURRENT RANGE | 0-40 | |
| RATED POWER W | 132 | |
| RIPPLE & NOISE (max.) mVp-p | 100 | |
| VOLTAGE ADJ. RANGE | 2.97-3.8 | |
| VOLTAGE TOLERANCE | ±2% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.5% | |
| SETUP, RISE TIME | 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 8ms at full load 230VAC /115VAC | |
| Input | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 81.50% | |
| AC CURRENT (Typ.) | 2A/115VAC 1.1A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE V | 3.8-4.462 | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1 ,EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1, AS/NZS 60950.1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 224.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 215*115*30mm (L*W*H) | |
| PACKING | 0.72Kg; 15pcs/11.8Kg/0.67CUFT | |
Meanwell RSP-200-3.3 Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 90%
l Cooling by free air convection
l Protections: Short circuit/ Overload/Over voltage/Over temperature
l Optional conformal coating
l LED indicator for power on
l 3 years warranty
Meanwell RSP-200-3.3 Applications
l Test and measurement instrument
l Factory control or automation apparatus
l Burn-in facility
l RF application
l Laser related machine
Meanwell RSP-200-3.3 Mechanical Diagram
