HRPG-600
129.14

HRPG-600

As low as $129.14

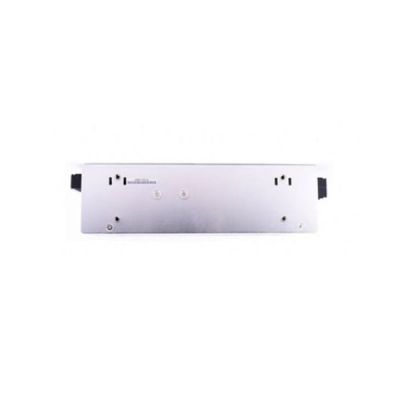

Meanwell 600W Single Output with PFC Function

- +
Availability:In stock
SKU Meanwell HRPG-600
Brand Meanwell
Details

Meanwell HRPG-600 is 600 W Single Output with PFC Function. The whole series provides an output voltage line of 3.3V 5V 7.5V 12V 15V 24V 36V 48V. Apart from the high efficiency, the metallic mesh case design enhances the heat dissipation. With All using 105 degree long life electrolytic capacitors and delivering an extremely low no load power consumption, it permits the end system to easily fulfill the worldwide energy requirement, and complied with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004.Furthermore, the series is equipped with Built-in DC OK signal, remote sense function, cooling fan ON-OFF control, and remote ON-OFF control. Additionally, It has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Considering the high efficiency, high reliability and long longevity. Meanwell HRPG-600 series serves as a high price-to-performance power supply solution for various applications.

Meanwell HRPG-600 Series Model Specifications

Meanwell HRPG-600 Series Model Specifications

Model HRPG-600-3.3 HRPG-600-5 HRPG-600-7.5 HRPG-600-12 HRPG-600-15 HRPG-600-24 HRPG-600-36 HRPG-600-48
Output DC VOLTAGE 3.3V 5V 7.5V 12V 15V 24V 36V 48V
RATED CURRENT 120A 120A 80A 53A 43A 27A 17.5A 13A
CURRENT RANGE 0-120A 0-120A 0-80A 0-53A 0-43A 0-27A 0-17.5A 0-13A
RATED POWER  396W 600W 600W 636W 645W 648W 630W 624W
RIPPLE & NOISE (max.) mVp-p 120 150 150 150 150 150 200 240
VOLTAGE ADJ. RANGE 2.8-3.8V 4.3-5.8V 6.8-9V 10.2-13.8V 13.5-18V 21.6-28.8V 28.8-39.6V 40.8-55.2V
VOLTAGE TOLERANCE ±2.0% ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  78.50% 82.00% 86.00% 88.00% 88.00% 88.00% 89.00% 89.00%
AC CURRENT (Typ.) 7.6A/115VAC 3.6A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT <1.2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 3.96-4.62V 6-7V 9.4-10.9V 14.4-16.8V 18.8-21.8V 30-34.8V 41.4-48.6V 57.6-67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION 5V STANDBY 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.) Load 35 +-15% or RTH2 >=50 degree Fan On
REMOTE CONTROL RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020
Others MTBF 147.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 218*105*63.5mm (L*W*H)
PACKING 1.58Kg;8pcs/13.6Kg/1.34CUFT

Meanwell HRPG-600 Series Features

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.93

l  High efficiency up to 89%

l  Withstand 300V AC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Built-in cooling fan ON-OFF control

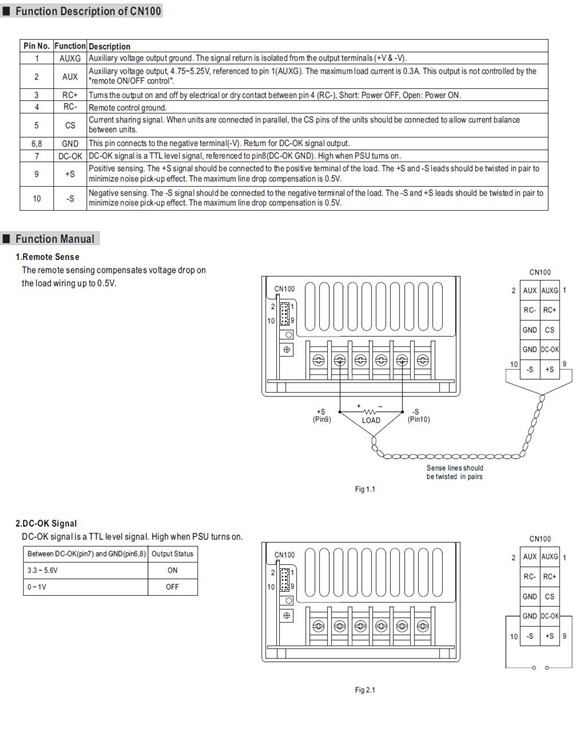

l  Built-in DC OK signal

l  Built-in remote ON-OFF control

l  Standby 5V@0.3A

l  Built-in remote sense function

l  No load power consumption<0.75W (Note.6)

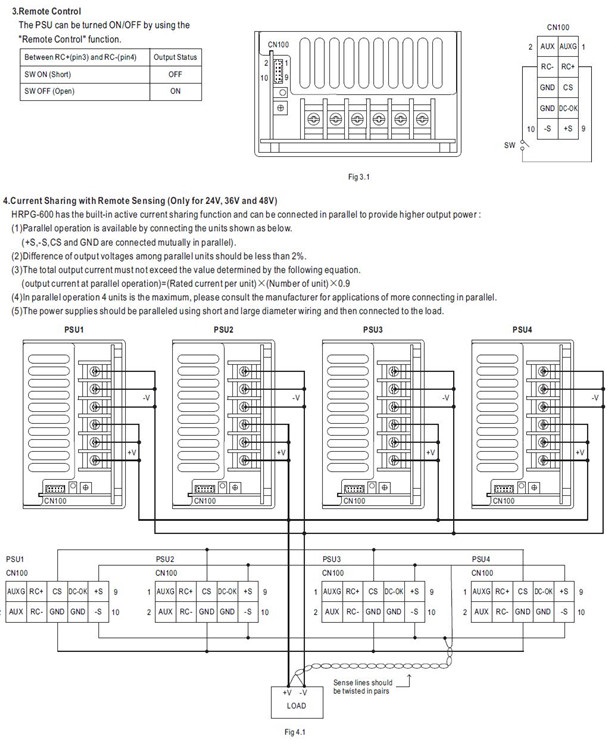

l  Current sharing up to 2400W (3+1) (24V ,36V ,48V)

l  5 years warranty

Meanwell HRPG-600 series certificate

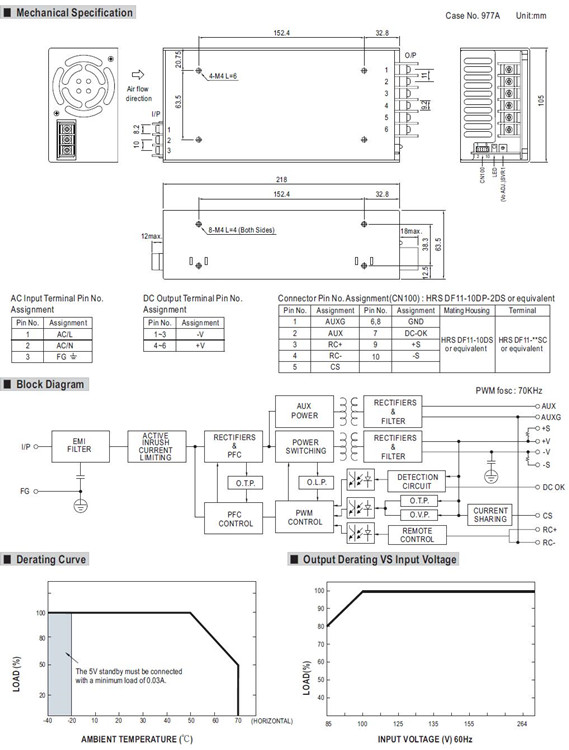

Meanwell HRPG-600 Series Mechanical Diagram

Meanwell HRPG-600 mechanical diagram ycict

Meanwell HRPG-600 mechanical diagram

Meanwell HRPG-600-3.3 Specifications YCICT
