RSP-1600-36
293.69
Details

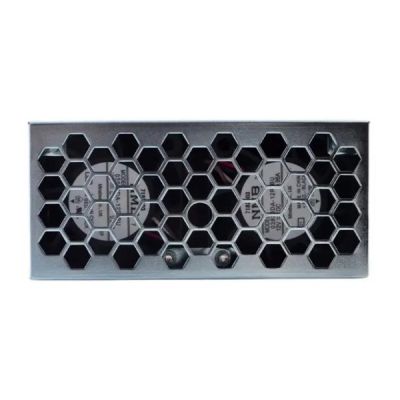

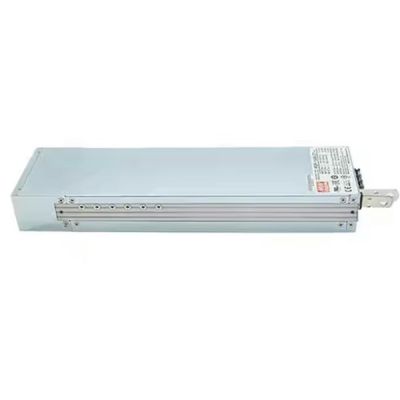

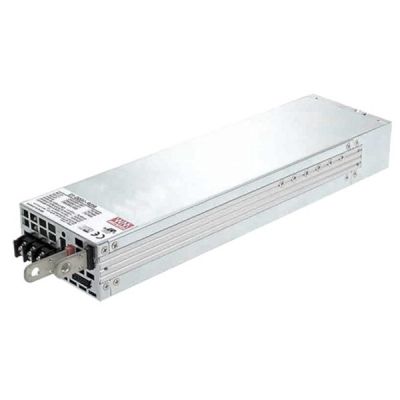

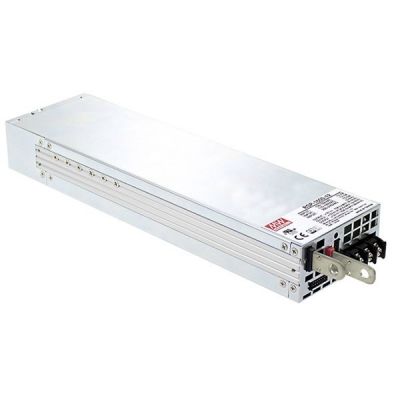

Meanwell RSP-1600-36 is a 1600W single output enclosed type AC/DC power supply with 36V44.5A0-44.5A1602W250 mVp-p35.5-45V. The unit is designed 1U low profile, PFC function and high-power density. Since the efficiency reaches high up to 93% with Universal AC input/Full range, RSP-1600-36 is able to operate for 90~264VACinput voltage and supplied with the DC output mostly demanded from the industry. The model is cooled by the thermostatically controlled fan, and operate under the temperature up to 70℃. Moreover, RSP-1600-36 provides the vast design flexibility by various built-in functions such as the output programming, active current sharing, remote ON-OF F control, auxiliary power, etc. Additionally, it has the complete protections such as Short circuit, Overload, Over voltage, Over temperature and Optional PMBus or CANBus protocol. In view of its longevity, high reliability and excellent quality, Meanwell RSP-1600-36 serves as a high-performance power supply solution for various industrial applications such as industrial control systems, IC test equipment, instrumentation, telecommunications, data storage, laser engraving machines, charging systems and so on.
Meanwell RSP-1600-36 Encoding
| RSP | Series Name |
| 1600 | Output Wattage |
| 36 | Output Voltage (12V/24V/27V/36V/48V) |
| **** | Communications Protocol |
| Blank | None |
| PM | PMBus Protocol By Request |
| CAN | CANBus Protocol By Request |
Meanwell RSP-1600-36 Specifications
| Model | RSP-1600-36 | |
| Output | DC VOLTAGE | 36V |
| RATED CURRENT | 44.5A | |
| CURRENT RANGE | 0-44.5A | |
| RATED POWER | 1602W | |
| RIPPLE & NOISE (max.) | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | 35.5-45V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms / 230VAC at 75% load 10ms / 230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT (Typ.) | 15A/115VAC 8.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A/230VAC | |
| LEAKAGE CURR ENT | <2mA / 230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% rated output power |
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||
| OVER VOLTAGE | 47.2-56.3V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 125% of nominal output voltage (60 ~ 125% for 12V). |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual | |
| ALARM SIGNAL | Isolated signal output for T-alarm and DC OK | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | |
| Others | MTBF | 478.8K hrs min. Telcordia SR-332 (Bellcore) ; 42.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 300*85*41mm (L*W*H) | |
| PACKING | 2.1Kg;6pcs/13.6Kg/1.25CUFT | |
Meanwell RSP-1600-36 Features
l 5 years warranty
l High efficiency up to 93%
l Built-in active PFC function
l Forced air cooling by built-in DC fan
l Optional PMBus or CANBus protocol
l Active current sharing up to 9600W (5+1)
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Universal AC input/Full range (Withstand 300V AC surge input for 5 seconds)
l Built-in remote ON-OFF control/remote sense/auxiliary power/DC OK signal/OTP alarm signal
Meanwell RSP-1600-36 Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Digital broadcasting
l Constant current source
l Redundant system
l Aging facility
Meanwell RSP-1600-36 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
