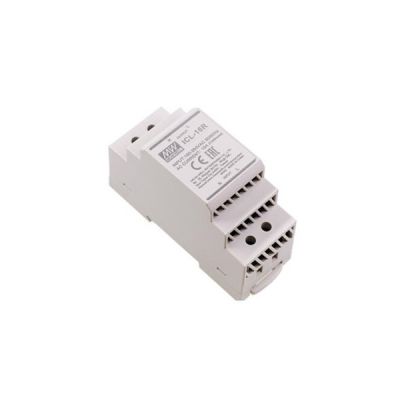

Meanwell 16A AC Inrush Current Limiter

- +
Availability:In stock
SKU Meanwell ICL-16
Brand Meanwell
Details

Meanwell ICL-16 Series is a 16A inrush current limiter that can be used to reduce the high starting current due to capacitive load causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-16.

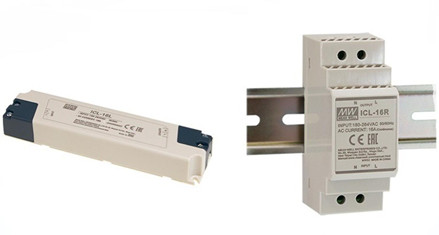

Meanwell ICL-16

Meanwell ICL-16 Series Encoding

ICL Series Name
16 Inrush Current
R Shape R: Din Rail Type ( Rail Mounted)
L: Linear Type ( Terminal block mounted)

Meanwell ICL-16 Series Model Specifications

Model ICL-16R ICL-16L
AC INPUT VOLTAGE 180 ~ 264VAC
AC LINE FREQUENCY 47 - 63Hz
INRUSH CURRENT LIMITING 23A
AC CONTINUOUS RATED CURRENT 16A continuous
AC INPUT POWER 3680VA (16A x 230VAC)
AC INPUT CONSUMPTION <1.5W at 264VAC,50Hz input
INTERNAL RELAY LIMITING TIME
(TON POWER ON)
300±50ms
INTERNAL RELAY LIMITING CYCLES PSU Set up time<250ms  PSU Set up time 250 ~ 350ms  PSU Set up time >350ms
1 cycle / 5 min  1 cycle / 1 min  5 cycle / 1 min (>1500ms per cycle)
RELEASE TIME 500±50ms
INTERNAL PROTECTION Thermal fuse protects overload and fire
ALLOWED CAPACITIVE LOAD 2500μF max.
WORKING TEMP. -30 ~ +70
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP. -40 ~ +85
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) RH non-condensing
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes;
Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 5000 meters
OVER VOLTAGE CATEGORY According to IEC62368-1; altitude up to 5000 meters
POLLUTION DEGREE 2
SAFETY STANDARDS LVD BS EN/EN62368-1 approved
SAFETY & EMC EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032  Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 ….....
EMC IMMUNITY BS EN/EN55024, BS EN/EN55035,BS EN/EN61000-6-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 3, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods
MTBF 2433.76K hrs min. MIL-HDBK-217F (25) 2508.62K hrs min. MIL-HDBK-217F (25)
DIMENSION 35*90*54.5mm (L*W*H) 175*42*24mm (L*W*H)
PACKING 0.116Kg; 96pcs/12.2Kg/1.04CUFT 0.132Kg; 98pcs/14Kg/1.04CUFT

Meanwell ICL-16 Series Features

l  23A inrush limiting current, 16A continuous

l  1 80~264VAC AC input

l  Integrated bypass relay, no simple NTC

l  Internal thermal protection

l  Installed on DIN Rail TS-35/7.5or 15 (ICL-16R)

l  -30℃~+ 70 ℃ wide working temperature

l  3 years warranty

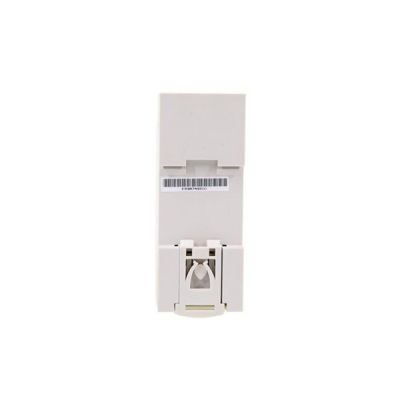

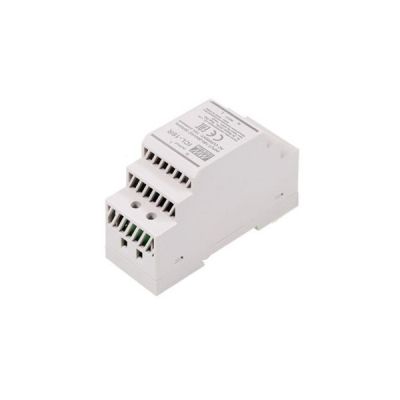

Meanwell ICL-16

Meanwell ICL-16 Series Applications

l  Allow connecting multiple power supply at same line

l  Allows smaller and faster Circuit Breaker

l  Capacitive load

l  Protects against unintended trigger of Circuit Breaker

Meanwell ICL-16 Series Mechanical Diagram

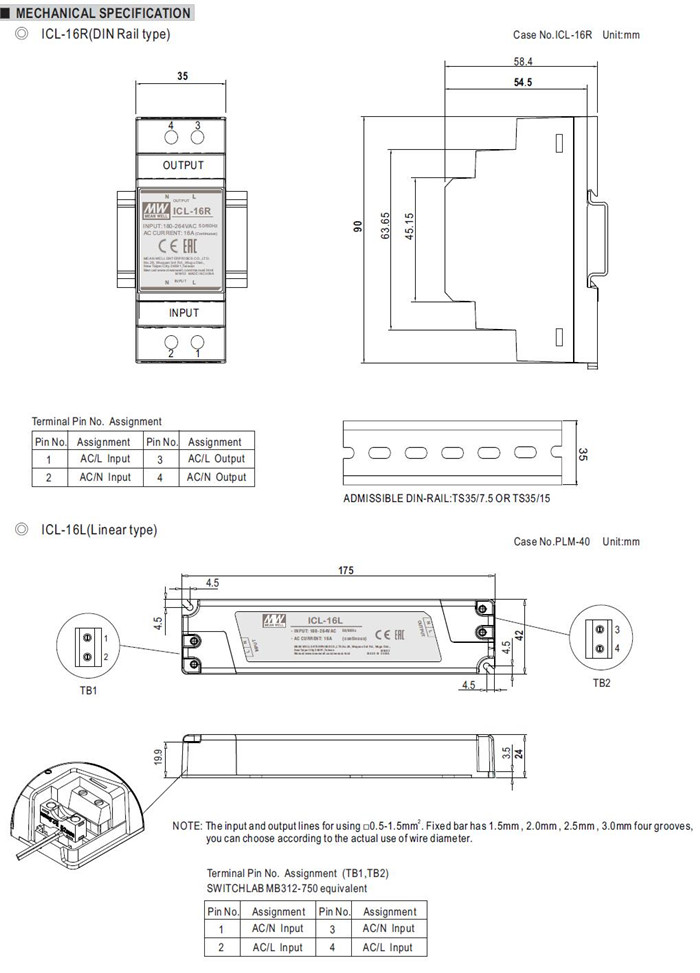

ICL-16RMeanwell ICL-16 Series Mechanical Diagram
