RS-50-3.3
10.88

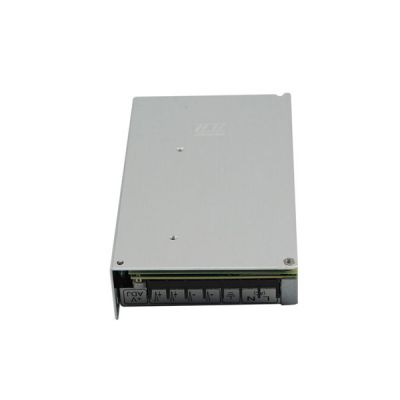

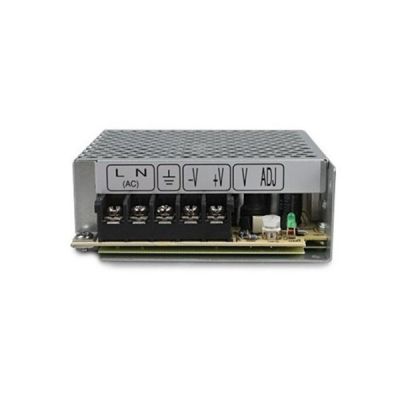

RS-50-3.3

$10.88

Meanwell 50W Single Output Switching Power Supply with 3.3V10A0-10A33W80mVp-p3-3.6V±3.0%±0.5%±2%

- +
Availability:In stock
SKU Meanwell RS-50-3.3
Brand Meanwell
Details

Meanwell RS-50-3.3 is 50W Single Miniature size, non-PFC Output Switching Power Supply with 3.3V10A0-10A33W80mVp-p3-3.6V. The model could withstand 5G vibration and operate at 70°C high ambient temperature. By adopting 105 ℃ long life electrolytic capacitors and passing through 100% full load burn-in test, Meanwell RS-50-3.3 is able to withstand 300 VAC surge input for 5 seconds. At the same time, 2 outputs are isolated for RID series. Additionally, RS-50-3.3 is Cooled by free air convection, and with No load power consumption. Moreover, it provides the complete protection modes like Short circuit, Over load and Over voltage. Due to its high efficiency, long life and high reliability Meanwell RS-50-3.3 is ideal for use in harsh working environments.

Meanwell RS-50-3.3 Specifications

Meanwell RS-50-3.3 Specifications

Model RS-50-3.3
Output DC VOLTAGE 3.3V
RATED CURRENT 10A
CURRENT RANGE 0-10A
RATED POWER 33W
RIPPLE & NOISE (max.)  80mVp-p
VOLTAGE ADJ. RANGE 3-3.6V
VOLTAGE TOLERANCE ±3.0%
LINE REGUL ATION ±0.5%
LOAD REGUL ATION ±2%
SETUP, RISE TIME 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 60ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 78.00%
AC CURRENT (Typ.) 1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.) COLD START 33A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.4V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 228Khrs min. MIL-HDBK-217F (25)
DIMENSION 99*97*36mm (L*W*H)
PACKING 0.41Kg; 45pcs/19.5Kg/0.94CUFT

Meanwell RS-50-3.3 Features

l  3 years warranty

l  Universal AC input/Full range

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  All using 105℃ long life electrolytic capacitors

l  Withstand 300VAC surge input for 5 second

l  High operating temperature up to 70℃

l  Withstand 5G vibration test

l  No load power consumption<0. 5W

l  High efficiency, long life and high reliability

Meanwell RS-50-3.3 Features

Meanwell RS-50-3.3 mechanism Diagram

Meanwell RS-50-3.3 mechanism Diagram
